Запчасти Case 550G (8-38) - MAIN RELIEF VALVE (07) - HYDRAULIC SYSTEM

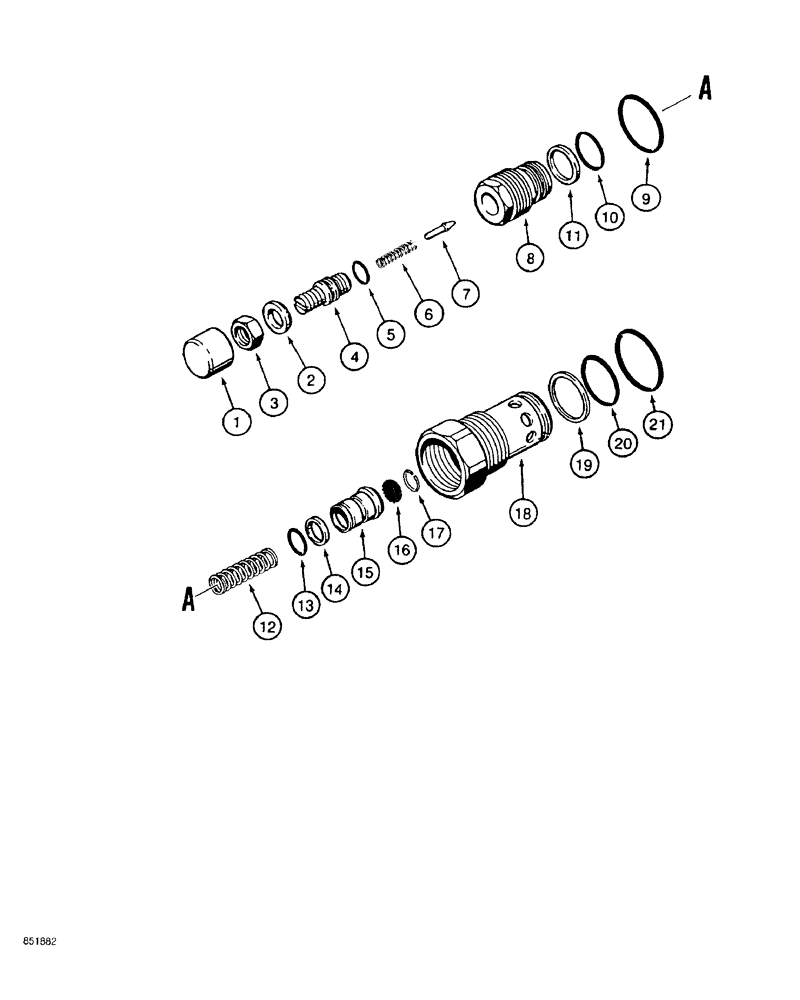

Схема запчастей Case 550G - (8-38) - MAIN RELIEF VALVE (07) - HYDRAULIC SYSTEM
5
12
10
4
18
20
9
16
14
7
8
11
2
17
6
13
3
19
15
21
1

Артикул

Название

Примечание

Количество

N8191

VALVE

ASSY. main relief, Includes: Ref. 1 - 21

1шт.

1

NSS

NOT SOLD SEPARAT

COVER tamper proof

1шт.

2

N9475

WASHER

special, if used

1шт.

2

1978295C1

WASHER

special, steel, 10.16 x 18.18 x 3.05 mm, if used

1шт.

3

425-156

JAM NUT,Jam, 3/8"-24, G5

Replaces 129-163

1шт.

4

N9463

ADJUSTMENT SCREW

adjusting

1шт.

5

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

Adjusting screw

1шт.

Part of Seal Kit P/N 106721A1

1шт.

6

N9465

SPRING

plunger

1шт.

7

N9464

PLUNGER

POPPET relief valve

1шт.

8

N9769

BODY

pilot plunger

1шт.

9

238-5019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

1шт.

Part of Seal Kit P/N 106721A1

1шт.

10

A55911

O-RING,0.807" ID

small

1шт.

Part of Seal Kit P/N 106721A1

1шт.

11

N9768

BACK-UP RING,0.831mm ID x 0.939mm OD x 0.052mm

RING backup, small O-ring

1шт.

Part of Seal Kit P/N 106721A1

1шт.

12

S300250

SPRING

poppet, Replaces: N9770

1шт.

13

238-7113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 7, 75 Duro

1шт.

Part of Seal Kit P/N 106721A1

1шт.

14

S84196

BACK-UP RING,9/16" ID x 3/4" OD x 0.052"

backup, poppet O-ring

1шт.

Part of Seal Kit P/N 106721A1

1шт.

15

S300249

VALVE POPPET

relief, Replaces: N9466, if used

1шт.

16

N9474

VALVE POPPET

SCREEN, if used

1шт.

17

N9473

RING, SNAP

RING SNAP retaining, screen, if used

1шт.

18

NSS

NOT SOLD SEPARAT

BODY relief valve

1шт.

19

N8197

O-RING,1.006" ID x 1.116" OD x 0.055"

RING backup, small O-ring, valve body

1шт.

Part of Seal Kit P/N 106721A1

1шт.

20

238-6022

O-RING,0.07" Thk x 0.989" ID, -22, Cl 6, 90 Duro

1шт.

Part of Seal Kit P/N 106721A1

1шт.

21

238-6023

O-RING,0.07" Thk x 1.051" ID, -23, Cl 6, 90 Duro

1шт.

Part of Seal Kit P/N 106721A1

1шт.

106721A1

SEAL KIT

KIT main relief valve, Includes: Ref. 5, 9 - 11, 13, 14 and 19 - 21

1шт.

Выбрано товаров: 33
