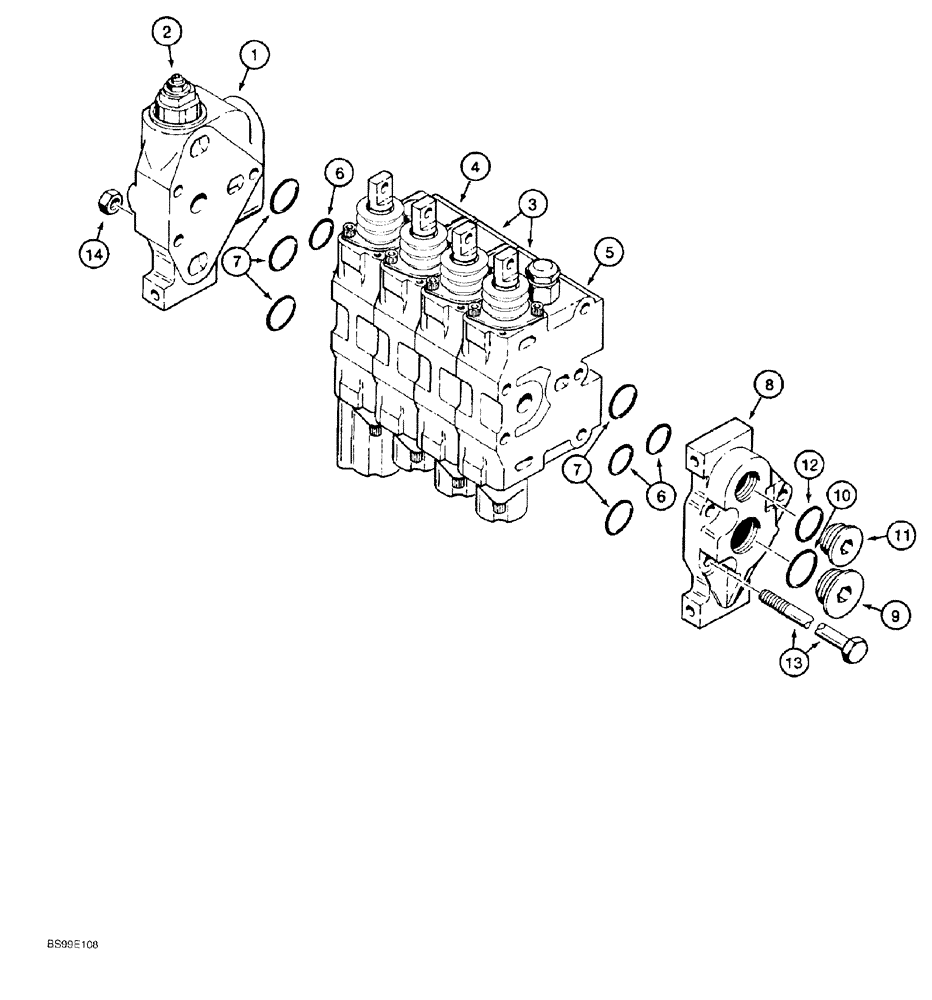

Запчасти Case 550G (8-37A) - FOUR SPOOL CONTROL VALVE (07) - HYDRAULIC SYSTEM

336346A1

VALVE

ASSY. equipment control, four spool, for service replacement of 336344A1, if used, Includes: Ref. 1 - 14

1шт.

1

N8942

VALVE BLOCK

SECTION inlet/outlet

1шт.

S302092

SEAL KIT

between sections, not illustrated

1шт.

2

N8191

VALVE

ASSY. main relief, see Figure 8-38

1шт.

The pressure setting of this main relief valve may not be preset for your application. See the 550G Service Manual for the correct setting.

1шт.

3

357165A1

HYD VALVE SECTION

ASSY. tilt and angle, see Figure 8-43A

2шт.

4

357161A1

HYD VALVE SECTION

ASSY. lift, see Figure 8-41A

1шт.

5

357166A1

HYD VALVE SECTION

ASSY. ripper, see Figure 8-43A

1шт.

6

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

6шт.

7

238-5119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

14шт.

8

100825A1

COVER

ASSY. end, Includes: Ref. 9 - 12

1шт.

9

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

Includes Ref 10

1шт.

10

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

11

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 12

1шт.

12

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

13

413-6152

BOLT,Hex, 3/8" - 16 x 9-1/2", Gr 5

hex, 3/8" NC x 9-1/2"

3шт.

14

425-106

NUT,3/8"-16, Cl 5

3шт.
