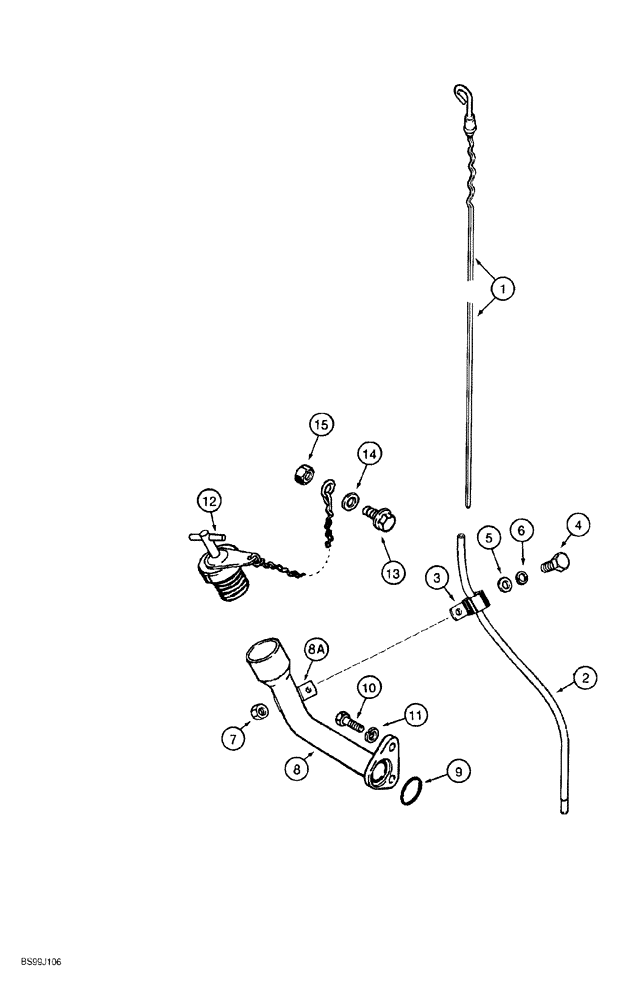

Запчасти Case 550G (2-07A) - ENGINE DIPSTICK AND FILL TUBE CRAWLER P.I.N. JJG0255794 AND AFTER (01) - ENGINE

1

259262A1

DIPSTICK

engine oil

1шт.

2

259261A2

TUBE,9.52 mm OD, 290, 200.4 mm Length

dipstick, Replaces: 259261A1

1шт.

3

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

P-type

1шт.

4

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

6

892-11008

LOCK WASHER,8mm ID

1шт.

7

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

8

259259A1

TUBE,200, 169 mm Length

engine oil fill, lower, Includes: Ref. 8A

1шт.

8a

D143410

CLAMP,36.58mm ID, 10.31mm Bolt Hole, J Type

, Serial Range: welded-tube

1шт.

9

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING, 38 mm (1-1/2") ID

1шт.

10

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

Full threads

2шт.

11

892-11012

LOCK WASHER,M12

2шт.

12

L115504

CAP

filler tube, includes chain

1шт.

13

121-107

SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

14

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

1шт.

15

230-4215

NUT,5/16"-18, GA

1шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.
