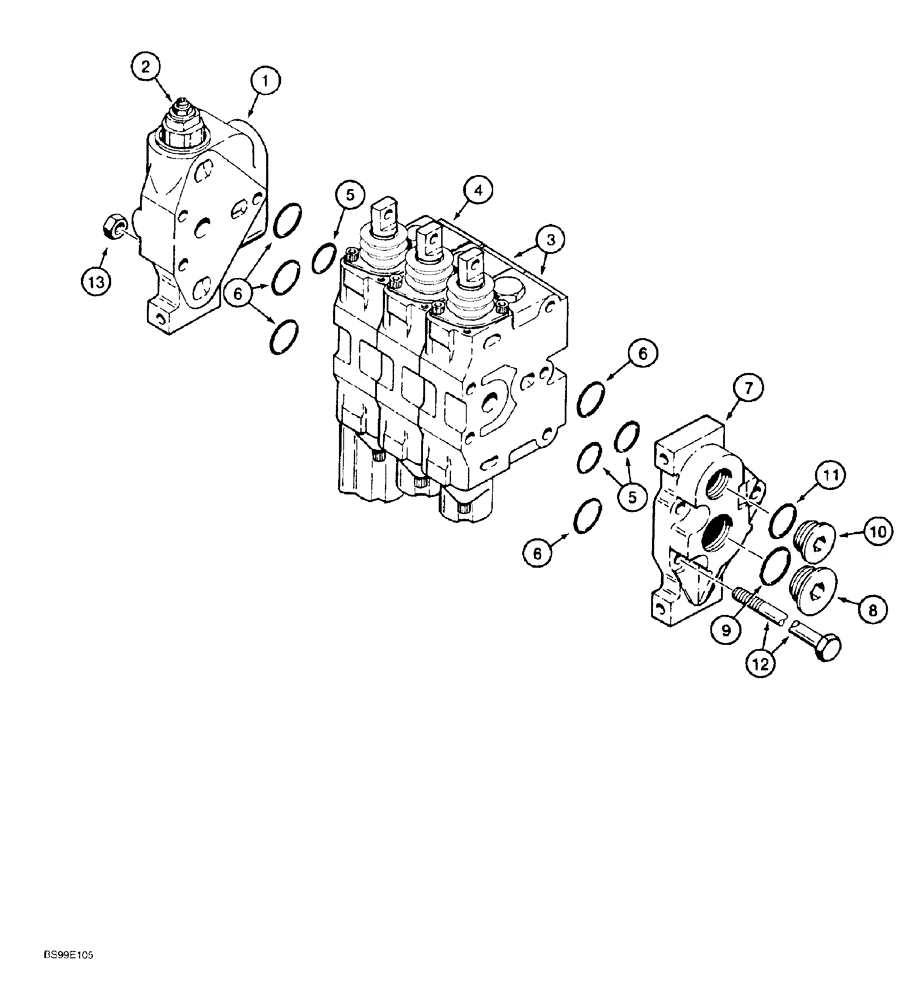

Запчасти Case 550G (8-35A) - THREE SPOOL CONTROL VALVE (07) - HYDRAULIC SYSTEM

336345A1

VALVE

ASSY. equipment control, three spool, for service replacement of 336343A1, if used

1шт.

1

N8942

VALVE BLOCK

SECTION inlet/outlet

1шт.

S302092

SEAL KIT

between sections, not illustrated

1шт.

2

N8191

VALVE

ASSY. main relief, see Figure 8-38

1шт.

The pressure setting of this main relief valve may not be preset for your application. See the 550G Service Manual for the correct setting.

1шт.

3

357165A1

HYD VALVE SECTION

ASSY. tilt and angle, see Figure 8-43A

2шт.

4

357161A1

HYD VALVE SECTION

ASSY. lift, see Figure 8-41A

1шт.

5

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

5шт.

6

238-5119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

11шт.

7

100825A1

COVER

ASSY. end

1шт.

8

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

1шт.

9

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

10

9841223

PLUG,1-1/16" - 12 ORB

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

12

413-6128

BOLT,Hex, 3/8" - 16 x 8", Gr 5

hex, 3/8" NC x 8"

3шт.

13

425-106

NUT,3/8"-16, Cl 5

3шт.
