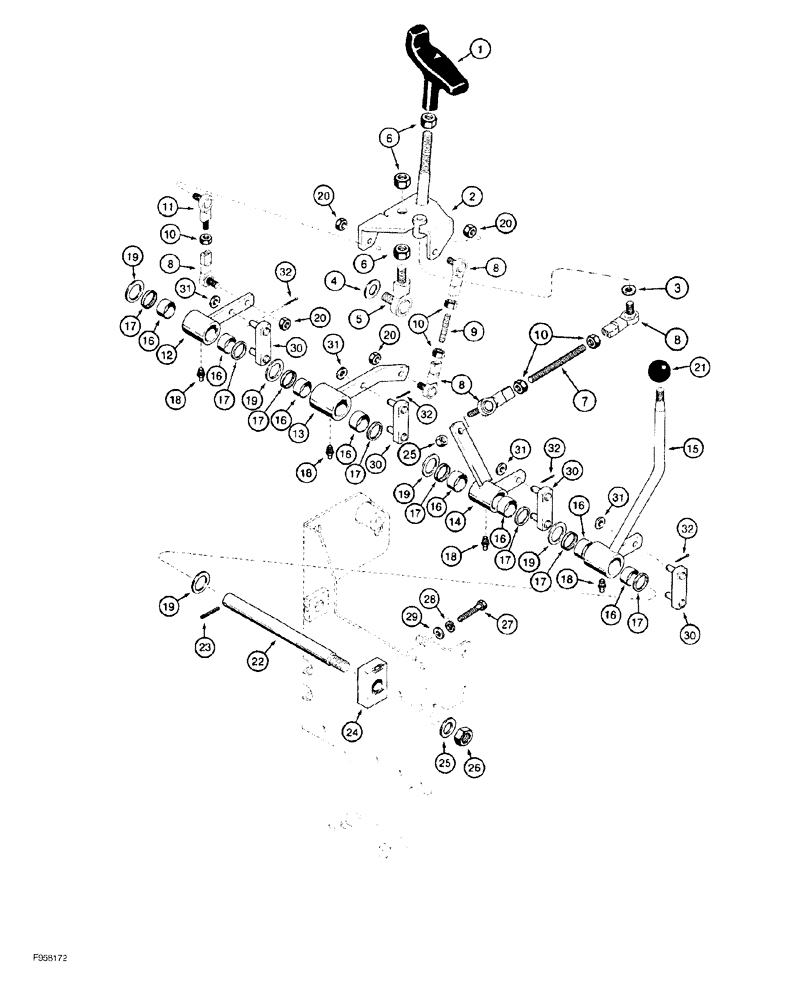

Запчасти Case 550G (8-32) - EQUIPMENT CONTROL LEVERS AND LINKAGE, TWO CONTROL LEVERS, FOUR SPOOL VALVE (07) - HYDRAULIC SYSTEM

R58221

VALVE

ASSY. equipment control, four spool, see Figure 8-36, for mounting see Figure 8-28, if used

1шт.

336346A1

VALVE

ASSY. equipment control, four spool, see Figure 8-37A, for mounting see Figure 8-28, if used

1шт.

1

R58490

HANDLE

equipment control, T-grip

1шт.

2

106400A1

HANDLED SHAFT

LEVER equipment control, lift, tilt and angle, Replaces: R58265

1шт.

3

495-11034

WASHER,5/16", SAE

(flat, 11/32" x 11/16" x 1/16")

1шт.

4

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

1шт.

5

A55558

BALL JOINT

1шт.

6

425-158

JAM NUT,Jam, 1/2"-20, G5

3шт.

7

R58258

ROD

threaded, 5/16" NF x 3-3/4"

1шт.

8

H289652

BALL JOINT,5/16" - 24 x 1-3/8" L

JOINT female, 5/16" NF

5шт.

9

R56432

ROD,THREADED

THREADED ROD 5/16" NF x 1-1/2"

1шт.

10

425-115

NUT,5/16"-24, G5

5шт.

11

R47939

ROD

JOINT ball, male, 5/16" NF

1шт.

12

R58255

ROCKER

LEVER ASSY. lift, spool to shaft, also Includes: Ref. 16 - 18

1шт.

13

R58252

ROCKER

LEVER ASSY. tilt, spool to shaft, also Includes: Ref. 16 - 18

1шт.

14

R58246

ROCKER

LEVER ASSY. angle, spool to shaft, also Includes: Ref. 16 - 18

1шт.

15

R58249

LEVER

ASSY. auxiliary control, spool to shaft, also Includes: Ref. 16 - 18

1шт.

16

L31166

NEEDLE BEARING

roller

2шт.

17

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

oil

2шт.

18

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

19

1960614C1

WASHER,20mm ID x 35mm OD x 1.58mm Thk

wear, used as a spacer

10шт.

20

232-4605

LOCK NUT,5/16"-24, GC

5шт.

21

70213

KNOB

control lever

1шт.

22

R58256

SHAFT

control linkage

1шт.

23

438-11224

LOCK PIN,3/16" x 1 1/2", Slotted

3/16" x 1 1/2", Slotted

1шт.

24

R58257

BLOCK

shaft mounting

1шт.

25

495-11066

WASHER,5/8", SAE

flat, 21/32" x 1-5/16" x 3/32"

1шт.

26

231-24410

LOCK NUT,5/8"-18, GB

1шт.

27

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

28

492-11038

LOCK WASHER,3/8"

2шт.

29

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, 13/32" x 13/16" x 1/16"

2шт.

30

139345A1

POWER ARM

LINK control valve spools to levers, Replaces: R58241

4шт.

31

495-11034

WASHER,5/16", SAE

(flat, 11/32" x 11/16" x 1/16")

1шт.

32

432-612

COTTER PIN,3/32" x 3/4"

Replaces 32-612 pin

8шт.
