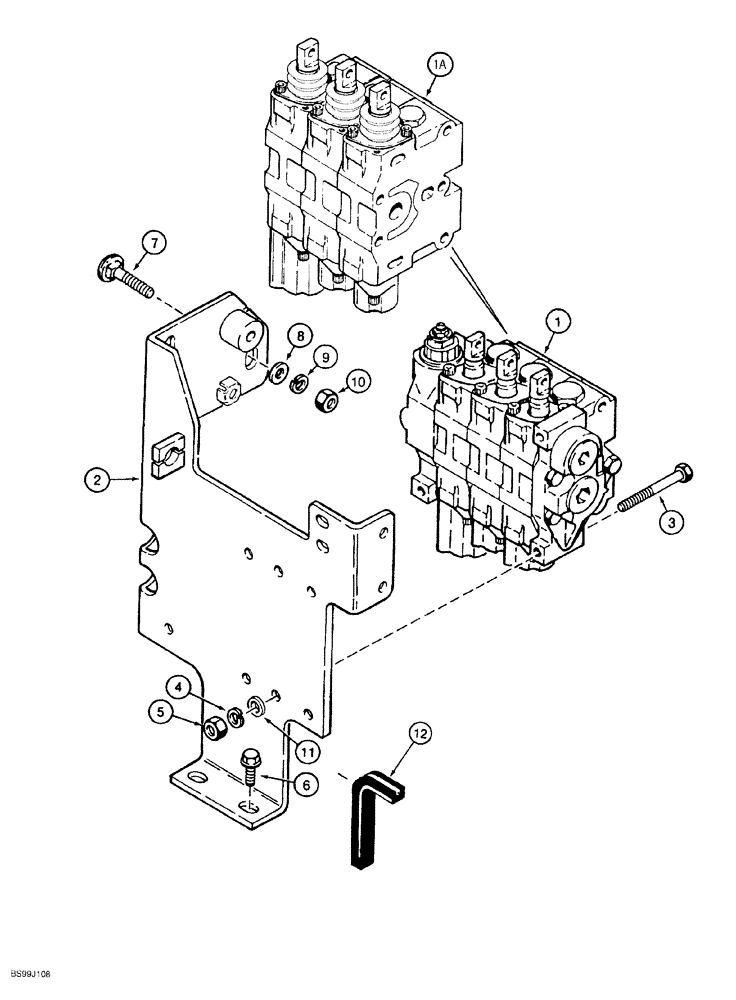

Запчасти Case 550G (8-28) - EQUIPMENT CONTROL VALVE AND MOUNTING (07) - HYDRAULIC SYSTEM

1

R58220

VALVE

ASSY. equipment control, three spool, Case part number stamped on valve, see Figures 8-34, 8-38 - 843A, if used

1шт.

1a

336345A1

VALVE

ASSY. equipment control, three spool, Case part number stamped on valve, see Figures 8-35A, 8-38 - 8-43A, if used

1шт.

1b

R58221

VALVE

ASSY. equipment control, four spool, Case part number stamped on valve, see Figures 8-36, 8-38 - 8-43A, if used, not illustrated

1шт.

1c

336346A1

VALVE

ASSY. equipment control, four spool, Case part number stamped on valve, see Figures 8-37A, 8-38 - 8-43A, if used, not illustrated

1шт.

2

R58239

BRACKET

control valve mounting

1шт.

3

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

3шт.

4

492-11031

LOCK WASHER,5/16"

3шт.

5

425-105

NUT,5/16"-18, G5

3шт.

6

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

2шт.

7

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

carriage, 1/2" NC x 1-1/4"

2шт.

8

495-21056

WASHER,1/2"

flat, 9/16" x 1-3/8" x 7/64"

2шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

10

425-108

NUT,1/2" - 13, Gr 5

2шт.

11

495-11034

WASHER,5/16", SAE

(flat, 11/32" x 11/16" x 1/16")

3шт.

12

D55218

SEAL, GLASS,76mm L

TRIM edge, 76 mm (3") long, cut from F42827 bulk trim shown below

1шт.

F42827

TRIM,2946.4mm L

TRIM edge, bulk, 2946 mm (116") long

1шт.
