Запчасти Case 550G (8-26) - RIPPER CYLINDER (07) - HYDRAULIC SYSTEM

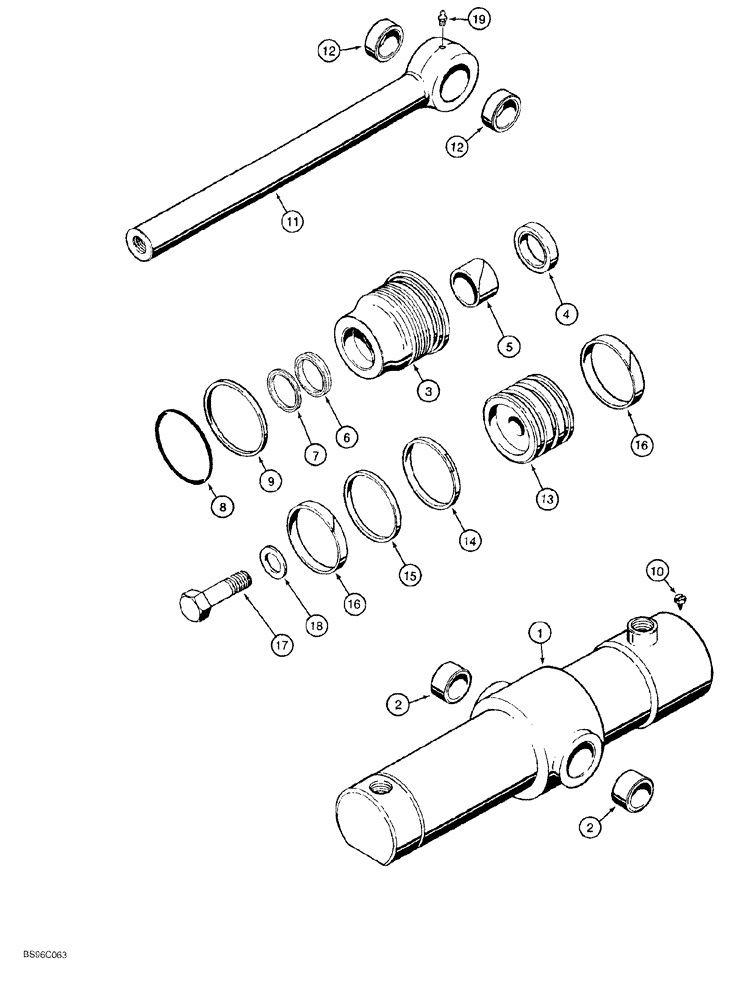

Схема запчастей Case 550G - (8-26) - RIPPER CYLINDER (07) - HYDRAULIC SYSTEM
1
12
18
4
19
7
5
9
2
10
11
8
17
15
2
16
13
12
16
3
6
14

Артикул

Название

Примечание

Количество

G101230

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 266.7mm Stroke

ASSY. ripper, 76 mm (3") ID x 267 mm (10-1/2") stroke, Includes: Ref. 1 - 19

1шт.

1

D35123

TUBE

ASSY. cylinder, Includes: Ref. 2

1шт.

2

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

tube

2шт.

NSS

NOT SOLD SEPARAT

GLAND ASSY. cylinder, Includes: Ref. 3 - 9

1шт.

3

1542962C1

GLAND

CYLINDER

1шт.

4

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER piston rod

1шт.

Part of Seal Kit P/N 1543252C1

1шт.

5

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

Center, Gland

1шт.

Part of Seal Kit P/N 1543252C1

1шт.

1542874C1

SEAL KIT,38.1mm Rod

Not serviced separately, Order 1543252C1 shown below, Incl Ref 6 and 7

1шт.

Part of Seal Kit P/N 1543252C1

1шт.

6

1542997C1

SEALING RING

rod, not serviced separately, order 1543252C1 seal kit shown below

1шт.

7

1542996C1

SEAL

SEAL buffer, not serviced separately, order 1543252C1 seal kit shown below

1шт.

8

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

Part of Seal Kit P/N 1543252C1

1шт.

9

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

backup

1шт.

Part of Seal Kit P/N 1543252C1

1шт.

10

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

11

G33467

ROD

ASSY. piston, 38 mm (1-1/2") dia., Includes: Ref. 12

1шт.

12

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

piston rod

2шт.

13

G100442

PISTON

CYLINDER

1шт.

14

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

Piston

1шт.

Part of Seal Kit P/N 1543252C1

1шт.

15

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING backup, piston

1шт.

Part of Seal Kit P/N 1543252C1

1шт.

16

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

2шт.

Part of Seal Kit P/N 1543252C1

1шт.

17

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

1шт.

18

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, hardened, special

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

1543252C1

SEAL KIT

seal, Includes: Ref. 4, 5, P/N 1542874C1, Ref. 8, 9, 14 - 16 and an instruction sheet, plus an additional seal not used in this application

1шт.
