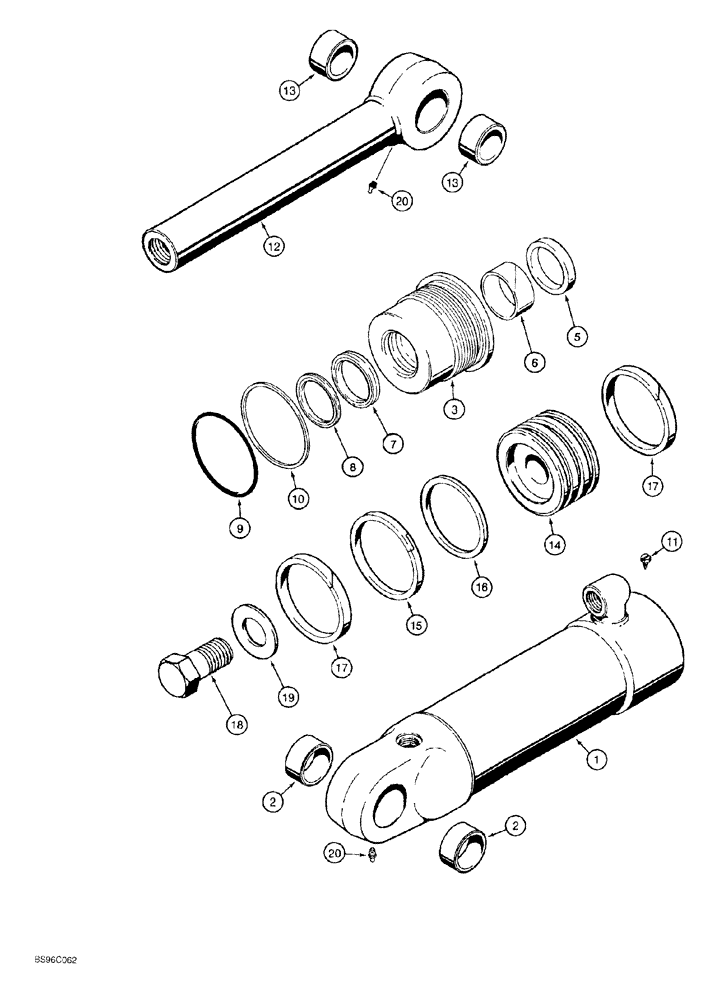

Запчасти Case 550G (8-24) - ANGLE CYLINDER (07) - HYDRAULIC SYSTEM

140146A1

CYLINDER ASSY.

angle, 102 mm (4") ID x 211 mm (8-5/16") stroke, Includes: Ref. 1 - 20

2шт.

1

140147A1

HYD CYL SLEEVE

TUBE ASSY., Includes: Ref. 2

1шт.

2

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

tube

2шт.

NSS

NOT SOLD SEPARAT

GLAND ASSY. cylinder, Includes: Ref. 3 - 10

1шт.

3

1543003C1

JACK HEAD

GLAND cylinder

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod

1шт.

Part of Seal Kit P/N 1543273C1

1шт.

6

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

center

1шт.

Part of Seal Kit P/N 1543273C1

1шт.

1542876C1

SEAL KIT,50.8mm Rod

Not serviced separately, Order 1543273C1 shown below, Incl Ref 7 and 8

1шт.

Part of Seal Kit P/N 1543273C1

1шт.

7

1543001C1

SEAL

SEAL rod, not serviced separately, order 1543273C1 seal kit shown below

1шт.

8

1543000C1

SEAL

SEAL buffer, not serviced separately, order 1543273C1 seal kit shown below

1шт.

9

238-5242

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

1шт.

Part of Seal Kit P/N 1543273C1

1шт.

10

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Gland O-Ring

1шт.

Part of Seal Kit P/N 1543273C1

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

12

1980295C1

ROD ASSY.

PISTON, 51 mm (2") dia., Includes: Ref. 13

1шт.

13

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

piston rod

2шт.

14

G100438

PISTON,100.89mm Bore, 32.8mm Rod, 50.7mm W

CYLINDER

1шт.

15

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

piston

1шт.

Part of Seal Kit P/N 1543273C1

1шт.

16

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

backup, piston seal

1шт.

Part of Seal Kit P/N 1543273C1

1шт.

17

G100448

RING,101.6mm OD, Ext

wear

2шт.

Part of Seal Kit P/N 1543273C1

1шт.

18

28-2044

BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8

1шт.

19

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

flat, hardened, special

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

1543273C1

SEAL KIT

seal, Includes: Ref. 5, 6, P/N 1542876C1, Ref. 9, 10, 15 - 17 and an instruction sheet, plus an additional seal not used in this application

1шт.
