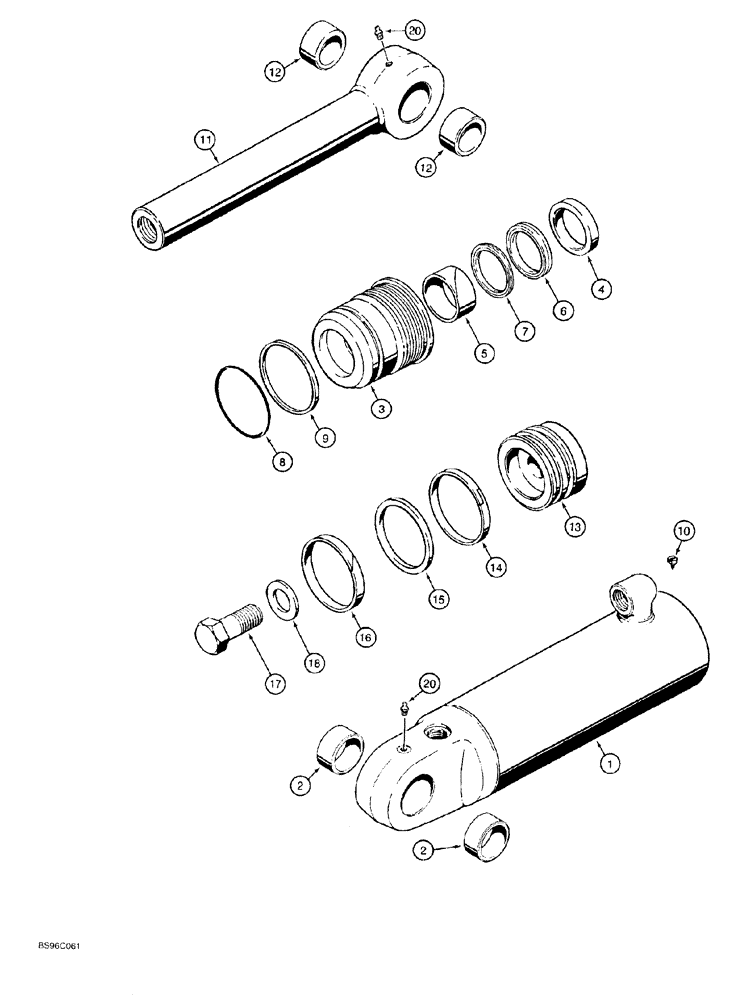

Запчасти Case 550G (8-22) - TILT CYLINDER (07) - HYDRAULIC SYSTEM

1542717C1

CYLINDER

ASSY. tilt, 76 mm (3") ID x 203 mm (8") stroke, Includes: Ref. 1 - 20

1шт.

1

1542718C1

TUBE

ASSY. cylinder, Includes: Ref. 2

1шт.

2

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

tube, 1-1/2" ID x 1-7/8" O.D. x 11/16" long

2шт.

NSS

NOT SOLD SEPARAT

GLAND ASSY. cylinder, Includes: Ref. 3 - 9

1шт.

3

1346417C1

GLAND

CYLINDER

1шт.

4

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER piston rod

1шт.

Part of Seal Kit P/N 1543256C1

1шт.

5

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

Center, Gland

1шт.

Part of Seal Kit P/N 1543256C1

1шт.

1542874C1

SEAL KIT,38.1mm Rod

Not serviced separately, Order 1543256C1 shown below, Incl Ref 6 and 7

1шт.

Part of Seal Kit P/N 1543256C1

1шт.

6

1542997C1

SEALING RING

rod, not serviced separately, order 1543256C1 shown below

1шт.

Part of Seal Kit P/N 1543256C1

1шт.

7

1542996C1

SEAL

SEAL buffer, not serviced separately, order 1543256C1 shown below

1шт.

Part of Seal Kit P/N 1543256C1

1шт.

8

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.

Part of Seal Kit P/N 1543256C1

1шт.

9

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

backup, gland O-ring

1шт.

Part of Seal Kit P/N 1543256C1

1шт.

10

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

11

1542720C1

ROD

ASSY. piston, 38 mm (1-1/2") dia., Includes: Ref. 12

1шт.

12

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

1-1/2" ID x 1-7/8" O.D. x 11/16" long

2шт.

13

G108518

PISTON

CYLINDER

1шт.

14

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

Piston

1шт.

Part of Seal Kit P/N 1543256C1

1шт.

15

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING backup, piston

1шт.

Part of Seal Kit P/N 1543256C1

1шт.

16

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

1шт.

Part of Seal Kit P/N 1543256C1

1шт.

17

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

1шт.

18

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, hardened, special

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

1543256C1

SEAL KIT,38.1mm Rod, 76.2mm Bore

Incl Ref 4, 5, P/N 1542874C1, Ref 6 - 9, 14 - 16 and an instruction sheet

1шт.
