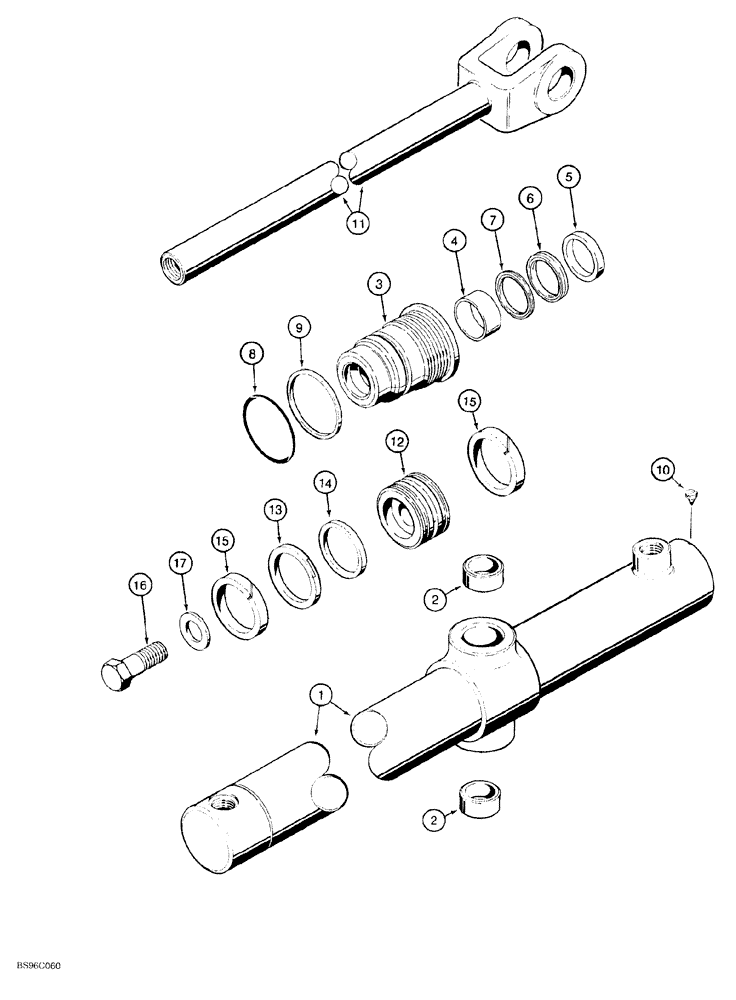

Запчасти Case 550G (8-20) - LIFT CYLINDER (07) - HYDRAULIC SYSTEM

1542565C1

CYLINDER

ASSY. lift, 64 mm (2-1/2") ID x 711 mm (28") stroke, Includes: Ref. 1 - 17

2шт.

1

1542753C1

TUBE,889 mm Length

ASSY. cylinder, Includes: Ref. 2

1шт.

2

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

tube

2шт.

NSS

NOT SOLD SEPARAT

GLAND ASSY. cylinder, Includes: Ref. 3 - 9

1шт.

3

1542751C2

GLAND

cylinder

1шт.

4

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

Center, Gland

1шт.

Part of Seal Kit P/N 1542764C2

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER piston rod

1шт.

Part of Seal Kit P/N 1542764C2

1шт.

1542874C1

SEAL KIT,38.1mm Rod

Not serviced separately, Order 1542764C2 shown below, Incl Ref 6 and 7

1шт.

Part of Seal Kit P/N 1542764C2

1шт.

6

1542997C1

SEALING RING

rod, not serviced separately, order 1542764C2 seal kit shown below

1шт.

7

1542996C1

SEAL

SEAL buffer, not serviced separately, order 1542764C2 seal kit shown below

1шт.

8

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

Part of Seal Kit P/N 1542764C2

1шт.

9

G109297

BACK-UP RING,56.9mm ID x 63.5mm OD x 1.4mm Thk

gland O-ring

1шт.

Part of Seal Kit P/N 1542764C2

1шт.

10

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

11

1542566C1

ROD

piston, 38 mm (1-1/2") dia.

1шт.

12

G100706

PISTON

cylinder

1шт.

13

G102289

SEAL,59.92mm ID x 64.64mm OD x 6.96mm Thk

piston

1шт.

Part of Seal Kit P/N 1542764C2

1шт.

14

G100713

SEALING RING,Square, 5.28mm Thk x 49.91mm ID

RING backup, piston

1шт.

Part of Seal Kit P/N 1542764C2

1шт.

15

G100714

RING

wear

2шт.

Part of Seal Kit P/N 1542764C2

1шт.

16

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

1шт.

17

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, hardened, special

1шт.

1542764C2

SEAL KIT

KIT, Includes: Ref. 4, 5, P/N 1542874C1, Ref. 8, 9, 13 - 15 and an instruction sheet, plus an additional seal not used in this application

1шт.
