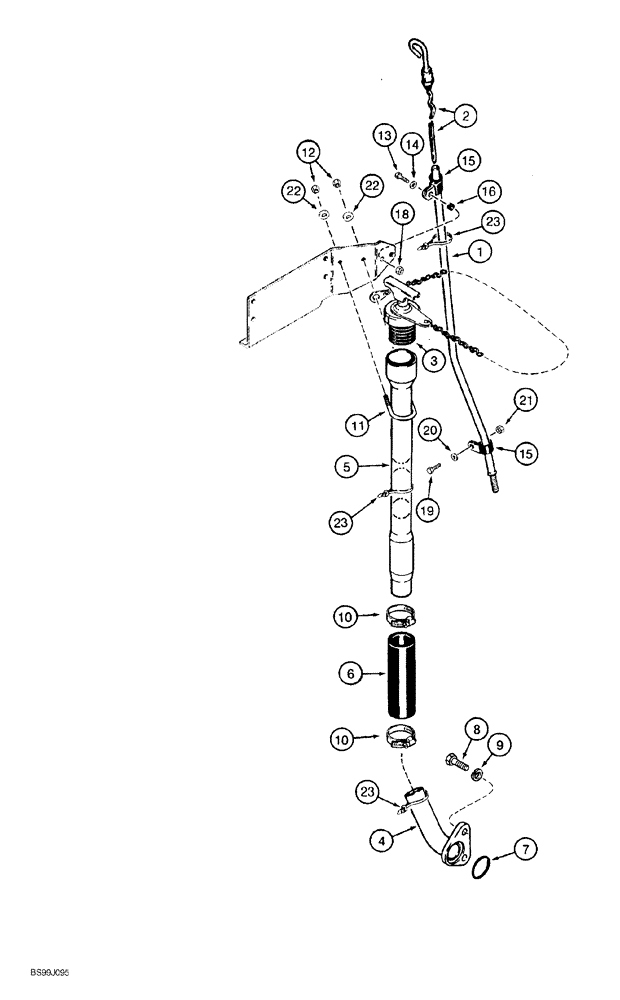

Запчасти Case 550G (2-06) - ENGINE DIPSTICK AND FILL TUBE, 4-390 AND 4T-390 ENGINE, PRIOR TO CRAWLER P.I.N. JJG0255794 (01) - ENGINE

1

R47970

TUBE,9.52 mm OD x 760, 173 mm L

dipstick

1шт.

2

R48402

DIPSTICK

engine oil

1шт.

3

L115504

CAP

filler tube, includes chain

1шт.

4

R53750

TUBE,24 mm L

engine oil fill, lower

1шт.

5

R53769

TUBE,38.1 mm OD x 540, 40 mm L

engine oil fill, upper

1шт.

6

R53715

HOSE,38.10 mm ID x 170.00 mm, SAE 20R1 Class B

1шт.

7

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING, 38 mm (1-1/2") ID

1шт.

8

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

2шт.

9

892-11012

LOCK WASHER,M12

2шт.

10

214-3132

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

adjustable, engine oil fill, 1-1/4" - 2-1/8" dia.

2шт.

11

L73167

U-BOLT

upper fill tube to coolant recovery bottle bracket

1шт.

12

231-1444

NUT,1/4"-20, GB

2шт.

13

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

14

495-11034

WASHER,5/16", SAE

(flat, 11/32" x 11/16" x 1/16")

1шт.

15

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

P-type

2шт.

16

R39516

GROMMET

rubber, used with upper dipstick tube clamp only

1шт.

18

231-1445

NUT,5/16"-18, GB

1шт.

19

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

20

495-21031

WASHER,1/4"

flat, 5/16" x 3/4" x 1/16"

1шт.

21

231-1444

NUT,1/4"-20, GB

1шт.

22

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

2шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15"

3шт.
