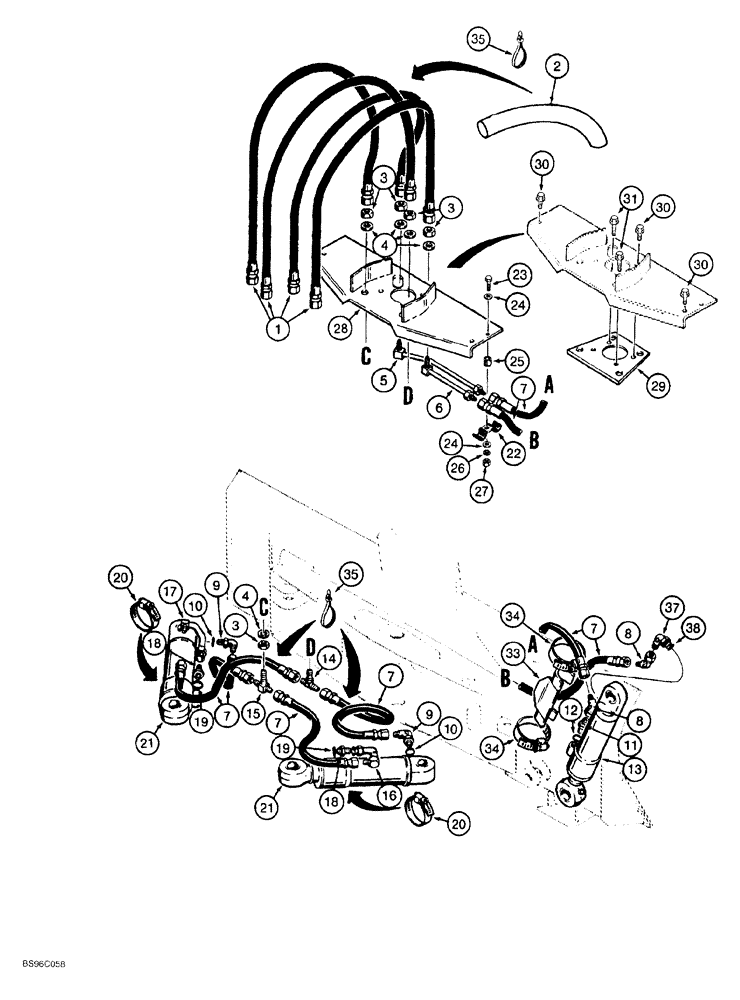

Запчасти Case 550G (8-14) - TILT AND ANGLE HYDRAULIC CIRCUITS, ON BACK OF BLADE (07) - HYDRAULIC SYSTEM

1

R40023

HOSE,9.53mm ID x 1270mm L, SAE 100R2

1270 mm (50") long

4шт.

2

103237A1

HOSE

WRAP nylon, retaining

1шт.

3

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

5шт.

4

D35268

SHIM,1/32" Thk

(25/32" ID x 1-1/4" OD)

5шт.

5

R41286

PIPE,0.5" OD x 15.4, 3.5" L

tilt circuit, to rod end of tilt cylinder

1шт.

6

R41288

PIPE,0.5" OD x 9.4" L

tilt circuit, to closed end of tilt cylinder

1шт.

7

R57608

HOSE ASSY.

534 mm (21") long

6шт.

8

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

2шт.

9

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adjusting O-ring boss, Includes: Ref. 10

2шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

11

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Adapter, Straight, O-ring boss, Rod end of tilt cylinder, Incl. Ref 12

1шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

1542717C1

CYLINDER

ASSY. tilt, 76 mm (3") ID x 203 mm (8") stroke, see Figure 8-22

1шт.

14

218-805

TEE,3/4"-16, 37 Degree, Blkhd

right-hand, angle circuit, 3/4"-16 bulkhead flare branch x flare x flare

1шт.

15

R28969

FITTING

TEE bulkhead, special, left-hand, angle circuit

1шт.

16

R52691

TUBE,0.5" OD

to rod end of right-hand angle cylinder

1шт.

17

R52689

TUBE,0.5" OD

to rod end of left-hand angle cylinder

1шт.

18

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, rod end of angle cylinder, O-ring boss, Incl. Ref 19

2шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

20

214-1476

HOSE CLAMP,#76, 4.31" - 5.25", Type F Worm

Adj.

2шт.

21

REF

INSTRUCTION

CYLINDER ASSY. angle, 102 mm (4") ID x 211 mm (8-5/16") stroke, see Figure 8-24

2шт.

22

R15257

CLAMP

tilt circuit hoses

1шт.

23

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

24

495-11034

WASHER,5/16", SAE

(flat, 11/32" x 11/16" x 1/16")

2шт.

25

D38524

SPACER

tilt circuit hoses

1шт.

26

492-11031

LOCK WASHER,5/16"

1шт.

27

425-105

NUT,5/16"-18, G5

1шт.

28

R57819

GUARD

hoses and tubes

1шт.

29

R54466

LARGE PLATE

PLATE, LARGE bulkhead support

1шт.

30

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

Guard

4шт.

31

160-108

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

hex flange, plate to leveling beam, 1/2" NC x 1-1/2", grade 8

2шт.

33

R41284

GUARD

tilt cylinder

1шт.

34

214-3180

HOSE CLAMP,4-1/4" - 5-1/8", HD Worm

adjustable, tilt cylinder guard, 4-1/4" - 5-1/8" dia.

2шт.

35

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15"

5шт.

37

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Closed end of tilt cylinder, Includes: Ref. 38

1шт.

38

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
