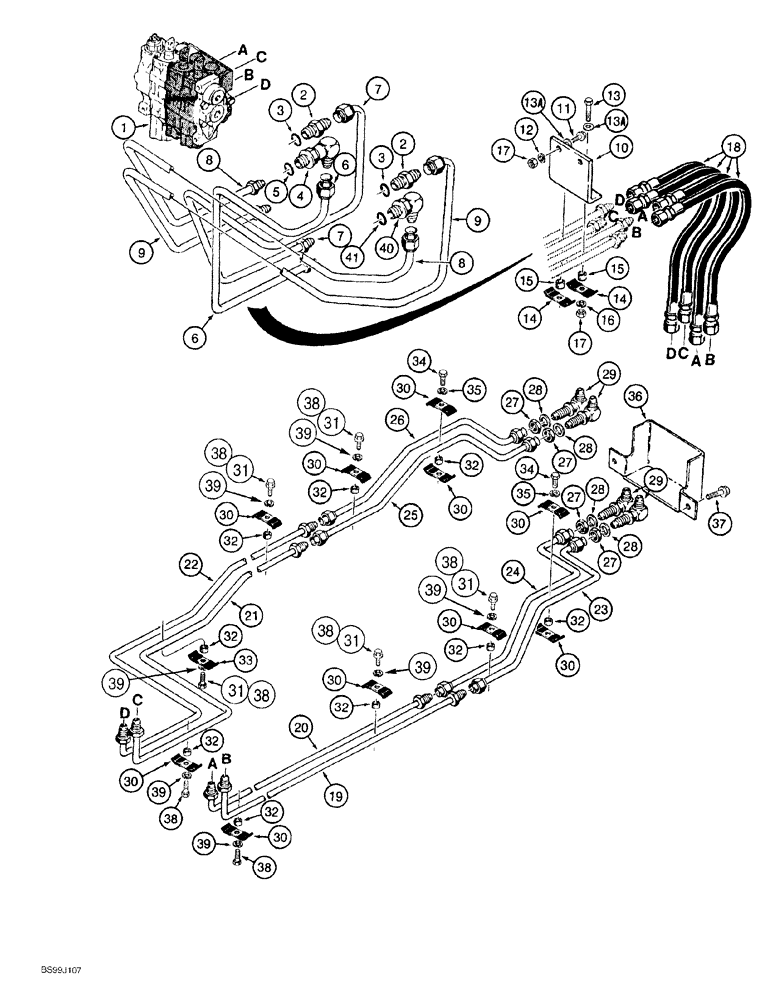

Запчасти Case 550G (8-12) - TILT AND ANGLE HYDRAULIC CIRCUITS, CONTROL VALVE TO GRILLE (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE ASSY. equipment control, for correct assembly see Figure 8-28

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, Incl. Ref 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

D36934

FITTING

ELBOW 90 degree, special, Includes: Ref. 5

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

6

R58755

TUBE,12.7 mm OD

tilt section lower port, at control valve

1шт.

7

R58753

TUBE,12.7 mm OD

tilt section upper port, at control valve

1шт.

8

R58759

TUBE,12.7 mm OD

angle section lower port, at control valve

1шт.

9

R58757

TUBE,12.7 mm OD

angle section upper port, at control valve

1шт.

10

R58842

BRACKET

tube support

1шт.

11

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

2шт.

12

492-11038

LOCK WASHER,3/8"

2шт.

13

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

13a

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, 13/32" x 13/16" x 1/16"

3шт.

14

D138055

CLAMP

tubes

2шт.

15

D76208

SPACER

clamp, .480" thick

2шт.

16

492-11038

LOCK WASHER,3/8"

2шт.

17

425-106

NUT,3/8"-16, Cl 5

4шт.

18

35453

SPARE PART

559 mm (22") long

4шт.

19

R39990

TUBE,0.5" OD

intermediate, tilt section lower port

1шт.

20

R39988

TUBE,0.5" OD

intermediate, tilt section upper port

1шт.

21

R40810

TUBE,0.5" OD

intermediate, angle section upper port

1шт.

22

R40812

TUBE,0.5" OD

intermediate, angle section lower port

1шт.

23

R39980

TUBE,0.5" OD

tilt section lower port, to grille

1шт.

24

R39982

TUBE,0.5" OD

tilt section upper port, to grille

1шт.

25

R39986

TUBE,0.5" OD

angle section upper port, to grille

1шт.

26

R39984

TUBE,0.5" OD

angle section lower port, to grille

1шт.

27

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

4шт.

28

D35268

SHIM,1/32" Thk

(25/32" ID x 1-1/4" OD)

4шт.

29

R29758

FITTING

ELBOW 90 degree, special

4шт.

30

D138055

CLAMP

tubes

10шт.

31

160-103

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

No longer used, order (5) 413-620 bolts, Ref. 38 below

5шт.

32

D76208

SPACER

clamp, .480" thick

9шт.

33

D138055

CLAMP

angle tubes

1шт.

34

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

35

492-11038

LOCK WASHER,3/8"

2шт.

36

R34008

GUARD

bulkhead elbows, at grille

1шт.

37

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

2шт.

38

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

7шт.

39

492-11038

LOCK WASHER,3/8"

7шт.

40

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Angle section lower port, adjusting O-ring boss, Includes: Ref. 41

1шт.

41

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.
