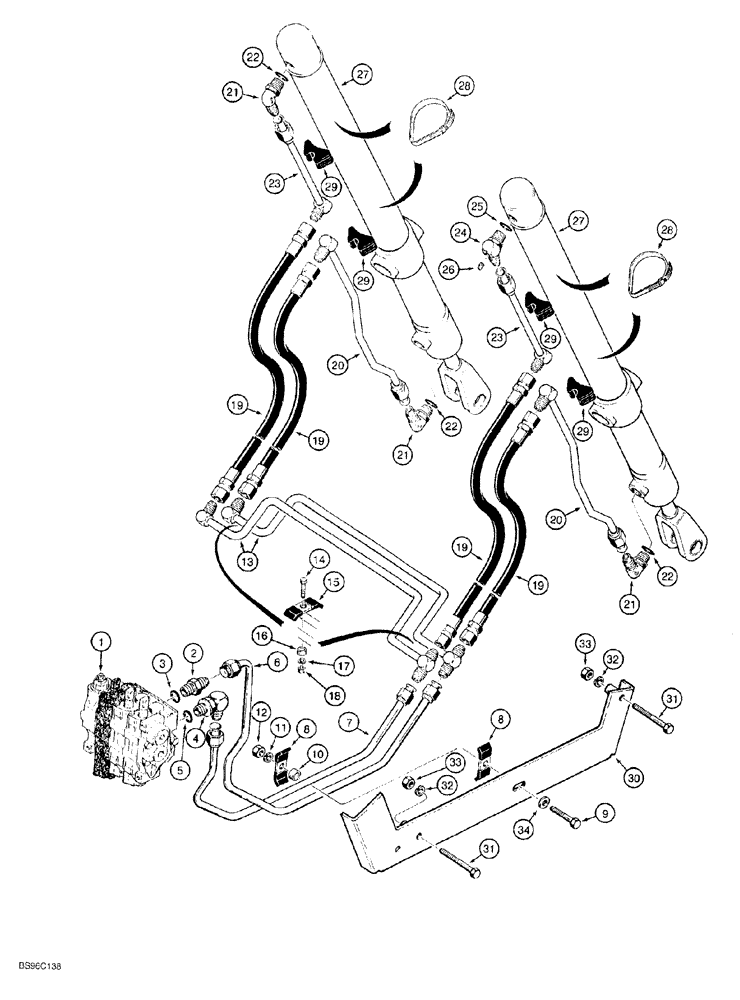

Запчасти Case 550G (8-10) - LIFT HYDRAULIC CIRCUIT (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE ASSY. equipment control, for correct assembly and components see Figures 8-34 - 8-37A

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER straight, 7/8"-14 flare x O-ring boss, Includes: Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adjusting O-ring boss, Incl. Ref. 5

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

6

R58749

TUBE,15.88 mm OD

from lift section upper port to cylinder rod end

1шт.

7

R58751

TUBE,15.88 mm OD

from lift section lower port to cylinder closed end

1шт.

8

D31782

FIXING BRACKET

CLAMP tubes

2шт.

9

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

hex, 1/2" NC x 2-3/4"

1шт.

10

R40879

SPACER

clamps

1шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

12

425-108

NUT,1/2" - 13, Gr 5

If used

1шт.

13

R58761

TUBE,15.9 mm OD x 648, 155 mm L

crossover

2шт.

14

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

15

D40236

CLAMP

tubes

2шт.

16

D146035

SPACER,10.31mm ID x 16mm OD x 15.5mm L

clamp

2шт.

17

492-11038

LOCK WASHER,3/8"

2шт.

18

425-106

NUT,3/8"-16, Cl 5

2шт.

19

L46723

HOSE

1067 mm (42") long

4шт.

20

D36138

HOSE ASSY.

TUBE to rod end of cylinder

2шт.

21

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adjusting O-ring boss, Incl. Ref. 22

3шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

23

D34747

TUBE

to closed end of cylinder

2шт.

24

R19576

FITTING

ELBOW 90 degree, special, Includes: Ref. 25

1шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

26

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

1шт.

27

1542565C1

CYLINDER

ASSY. lift, 64 mm (2-1/2") ID x 711 mm (28") stroke, see Figure 8-20

2шт.

28

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

adjustable, 2-13/16" - 3-3/4" dia.

4шт.

29

D38648

BLOCK

SPACER rubber

4шт.

30

R48281

GUARD

tubes, right-hand side

1шт.

31

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

hex, 1/2" NC x 2-3/4"

2шт.

32

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

33

425-108

NUT,1/2" - 13, Gr 5

2шт.

34

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

1шт.
