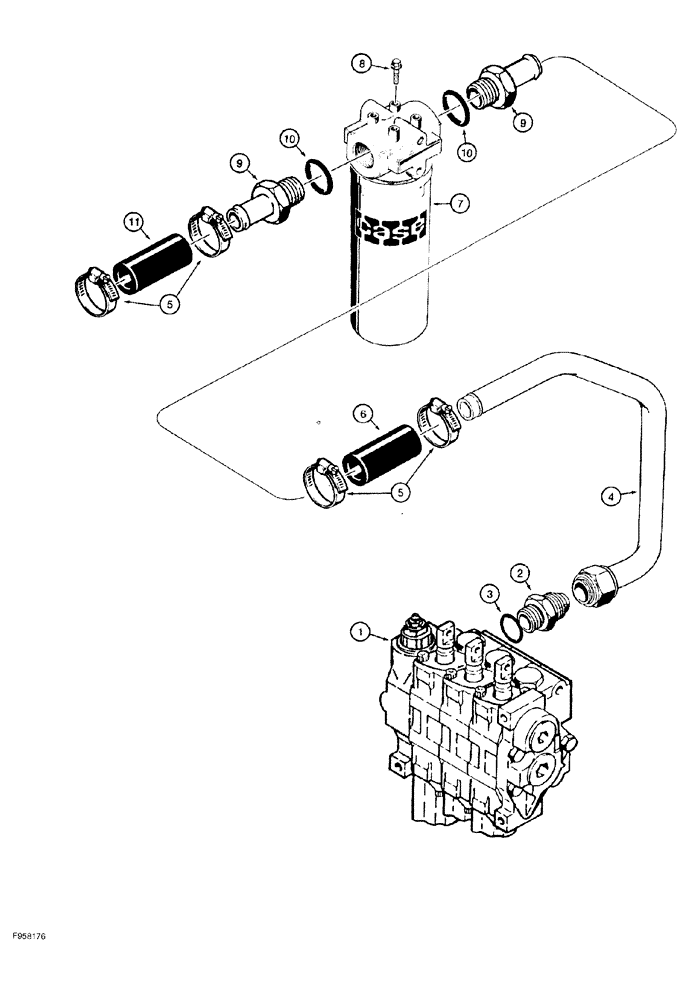

Запчасти Case 550G (8-06) - EQUIPMENT HYDRAULIC CIRCUIT, CONTROL VALVE TO HYDRAULIC RESERVOIR (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE ASSY. equipment control, for correct assembly and components see Figures 8-34 - 8-37A

1шт.

2

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Straight, Incl. Ref 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

R58768

TUBE,25.4 mm OD

control valve upper outlet port, to filter

1шт.

5

214-3128

HOSE CLAMP,1" - 1-7/8", HD Worm

hose, adjustable, 1" - 1-7/8" dia.

4шт.

6

D38435

HOSE,1" ID x 1 1/2" OD 3.5" L

to filter, 89 mm (3-1/2") long, cut from S118383X bulk hose shown below

1шт.

7

R50518

FILTER

ASSY. oil, see Figure 6-32

1шт.

8

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

hex flange, 3/8" NC x 3/4", grade 8

4шт.

9

217-179

FITTING,1" Hose Barb x 1-5/16" - 12 Male ORB

Includes Ref. 10

2шт.

10

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

11

R13912

HOSE,25.40 mm ID x 133.40 mm ID, SAE 100R3

to hydraulic reservoir, cut from S118383X bulk hose shown below

1шт.

S118383X

LARGE HOSE

HOSE,LARGE bulk, 25 mm (1") x 38 mm (1-1/2") x 4877 mm (192") long, see Ref. 6 and 11

1шт.
