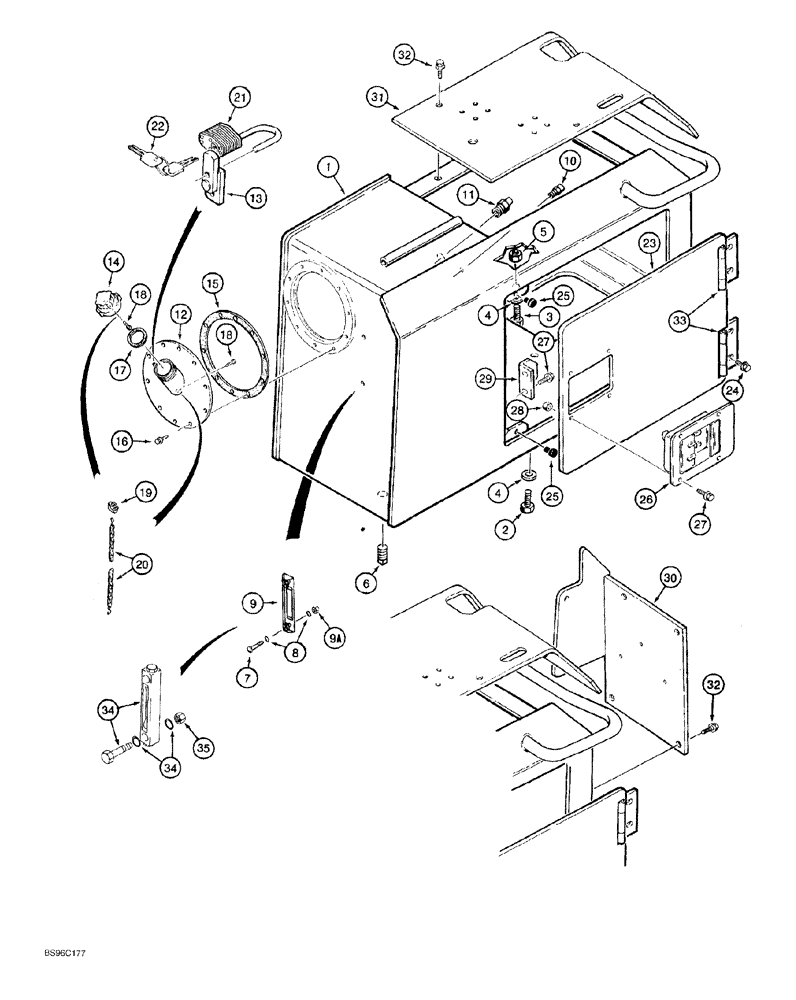

Запчасти Case 550G (8-02) - HYDRAULIC RESERVOIR FRAME AND COVERS (07) - HYDRAULIC SYSTEM

1

R58152

TANK

FRAME hydraulic reservoir and equipment control valve

1шт.

2

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

3

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

4

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

5шт.

5

425-108

NUT,1/2" - 13, Gr 5

3шт.

6

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

Drain, hex socket headless, 1/2" PT

1шт.

L116247

GAUGE

ASSY. sight, hydraulic reservoir, black full line, red empty line, if used, Includes: Ref. 7 - 9A

1шт.

7

N13213

BOLT

special, round head, slotted, sight gauge, no longer available, order L116247 gauge assembly shown above

2шт.

8

238-7112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

Sight gauge bolt

4шт.

9

NSS

NOT SOLD SEPARAT

GAUGE sight, hydraulic reservoir

1шт.

9a

NSS

NOT SOLD SEPARAT

NUT gauge

2шт.

10

R15536

VALVE

relief, air

1шт.

11

R15538

VALVE

inlet, air

1шт.

R51319

COVER

ASSY. rear, with filler tube, Includes: Ref. 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

COVER rear, with filler tube

1шт.

13

R46704

BRACKET

TAB locking, filler cap, weld-on

1шт.

14

L128669

CAP

filler

1шт.

15

D50547

GASKET,1.52mm Thk

rear cover

1шт.

16

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

hex flange, 3/8" NC x 3/4", grade 8

6шт.

17

R46984

GASKET

filler cap

1шт.

18

301-14712

SCREW,Drive, #12 x 3/4"

Round head

2шт.

19

R48634

FASTENER

HOOK chain

1шт.

20

R47786

CHAIN (CE)

filler cap

1шт.

21

D93753

PADLOCK

includes keys, Includes: Ref. 22

1шт.

22

R29555

KEY

for Master padlock only

2шт.

22

D93751

SET OF 2 KEYS

for Yale padlock only

2шт.

23

R58364

COVER

right-hand side, hydraulic reservoir frame

1шт.

24

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

hex flange, 3/8" NC x 3/4", grade 8

2шт.

25

A161780

BUMPER

rubber, side cover

2шт.

26

R56221

LATCH

LATCH side

1шт.

27

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

28

231-5344

FLANGE NUT,Flg, 1/4"-20

4шт.

29

R56397

LARGE PLATE

PLATE, LARGE STRIKER latch

1шт.

30

R58343

COVER

front, hydraulic reservoir frame

1шт.

31

R58323

COVER

top, hydraulic reservoir frame

1шт.

32

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

hex flange, 3/8" NC x 3/4", grade 8

8шт.

33

R50984

HINGE

weld-on

2шт.

34

226456A1

LEVEL GAUGE

Assy, Sight, hydraulic reservoir, Full/cold letters, Incl two hollow head head bolts and four O-rings which are not serviced separately, if used

1шт.

35

829-1412

NUT,M12, Cl 10.9

Used with Ref. 34 gauge, if used

2шт.
