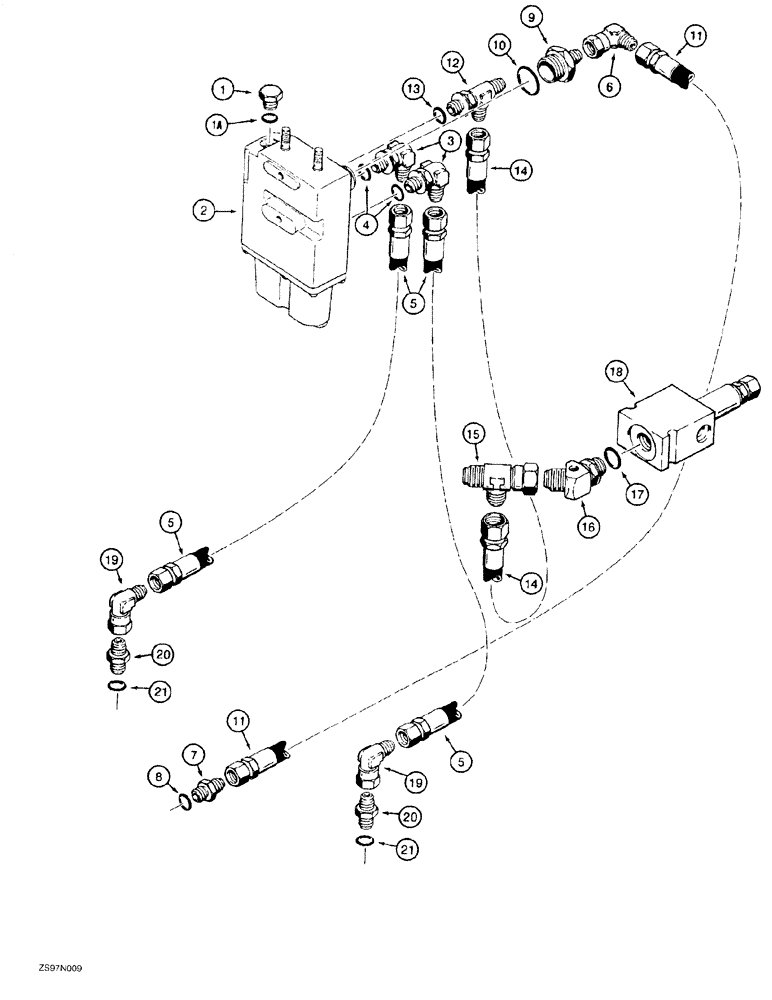

Запчасти Case 550G (7-04) - POWER BRAKE HYDRAULIC LINES, VALVE TO TRANSMISSION (07) - HYDRAULIC SYSTEM

1

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 1A

1шт.

2

1272218C1

VALVE

ASSY. brake, see Figure 7-08, see Figure 7-02 for mounting hardware and linkage

1шт.

3

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, 9/16"-18 flare x adjusting O-ring boss, Includes: Ref. 4

2шт.

5

R56863

HOSE

valve to transmission, 813 mm (32") long

2шт.

6

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

7

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref.

1шт.

9

218-5044

HYD CONNECTOR,9/16" - 18 Male JIC x 1-1/16" - 12 Male ORB

straight, 9/16"-18 flare x 1-1/16"-12 O-ring boss, Includes: Ref. 10

1шт.

10

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

11

1541268C1

HOSE

valve to transmission, 1270 mm (50") long

1шт.

12

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: Ref. 13

1шт.

14

R58726

HOSE

brake valve, to relief valve, 1041 mm (41") long

1шт.

15

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

16

R57596

FITTING

ELBOW special, 45 degree, see Figure 4-08 for transmission oil pressure gauge, Includes: Ref. 17

1шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

18

R57582

VALVE

ASSY. relief, see Figure 6-26 for external O-ring service kit and additional connections

1шт.

19

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

If used

2шт.

20

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

If used, Incl. Ref. 21

2шт.

1a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
