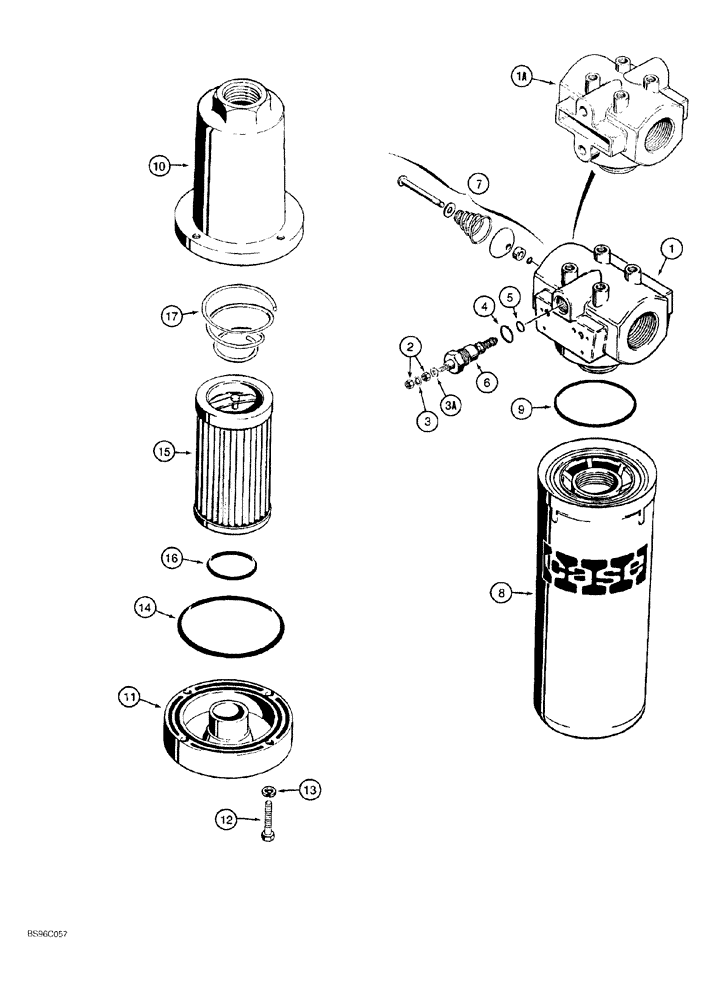

Запчасти Case 550G (6-32) - HYDRAULIC OIL FILTERS (07) - HYDRAULIC SYSTEM

R48993

FILTER

ASSY. transmission oil, Includes: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD, R48993 filter

1шт.

N7929

INDICATOR

ASSY. restriction, electric, R48993 filter only, Includes: Ref. 2 - 6

1шт.

2

129-667

NUT,#10-32, LH

2шт.

3

493-21020

LOCK WASHER,Int Tooth, #10

(3/16")

1шт.

3a

NSS

NOT SOLD SEPARAT

WASHER green

1шт.

5

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

6

NSS

NOT SOLD SEPARAT

INDICATOR restriction

1шт.

7

NSS

NOT SOLD SEPARAT

VALVE bypass, filter

1шт.

1346028C1

HYDRAULIC OIL FILTER

filter, replacement, Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

ELEMENT filter

1шт.

9

70923815

O-RING,-230, 70 Duro, 2.484" ID x .139" Thk

element

1шт.

R50518

FILTER

ASSY. oil, equipment circuit

1шт.

1a

NSS

NOT SOLD SEPARAT

HEAD, R50518 filter

1шт.

7

NSS

NOT SOLD SEPARAT

VALVE bypass, filter

1шт.

1346028C1

HYDRAULIC OIL FILTER

filter, replacement

1шт.

8

NSS

NOT SOLD SEPARAT

ELEMENT filter

1шт.

9

N9026

O-RING

element

1шт.

D35144

FILTER

FILTER, OIL ASSY. transmission, suction line, Includes: Ref. 10 - 17

1шт.

10

D37033

HOUSING

filter, transmission suction line

1шт.

11

D37034

HEAD

filter, transmission suction line

1шт.

12

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Transmission suction line filter

4шт.

13

492-11025

LOCK WASHER,1/4"

Transmission suction line filter

4шт.

14

D21006

O-RING,0.125" Thk x 3.125" ID, 70 Duro

housing, transmission suction line filter

1шт.

15

D37035

FILTER, ELEMENT

ELEMENT, FILTER transmission suction line, Includes: Ref. 16

1шт.

16

238-5218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

Element, Transmission suction line filter

1шт.

17

D37036

SPRING

element, transmission suction line filter

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
