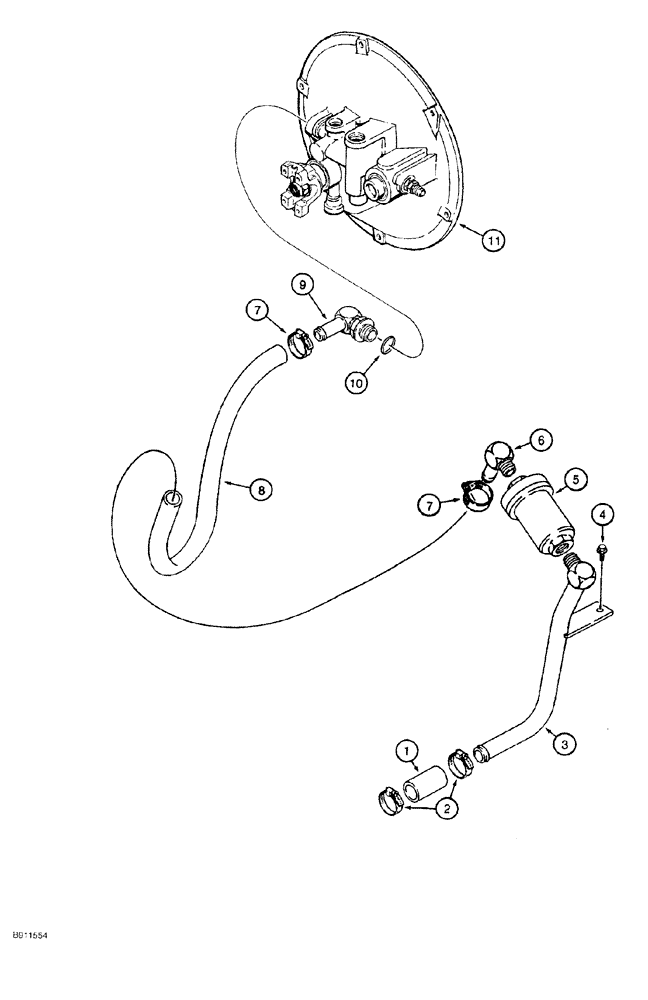

Запчасти Case 550G (6-28) - CRAWLER HYDRAULIC CIRCUIT, TRANSMISSION SUCTION LINE (07) - HYDRAULIC SYSTEM

1

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

cut from S118465X bulk hose shown below

1шт.

2

214-3132

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

adjustable, 1-1/4" - 2-1/8" dia.

2шт.

3

R58825

TUBE,31.75 mm OD

suction line, transmission to filter, bracket bolts to main frame

1шт.

4

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

hex flange, 3/8" NC x 3/4", grade 8

1шт.

5

D35144

FILTER

FILTER, OIL ASSY. transmission, see Figure 6-32

1шт.

6

R57811

FITTING

ELBOW special, at suction filter, 90°

1шт.

7

214-3128

HOSE CLAMP,1" - 1-7/8", HD Worm

adjustable, 1" - 1-7/8" dia.

2шт.

8

D23886

HOSE

suction filter to converter, 432 mm (17") long, cut from S118383X bulk hose shown below

1шт.

9

R56769

FITTING

ELBOW stem, special, at torque converter, Includes: Ref. 10

1шт.

10

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

1шт.

11

1348881C2

CONVERTER

HOUSING ASSY. torque, see Figure 6-04, pressure line hydraulics shown in Figure 6-26

1шт.

119994A1R

REMAN-HYD PUMP

550G (2/95-), Reman Pump Section for New PN 1348881C2

1шт.

119994A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

S118465X

LARGE HOSE

HOSE,LARGE bulk, 32 mm (1-1/4") x 45 mm (1-3/4") x 4572 mm (180") long, see Ref. 1

1шт.

S118383X

LARGE HOSE

HOSE,LARGE bulk, 25 mm (1") x 38 mm (1-1/2") x 4877 mm (192") long, see Ref. 8

1шт.
