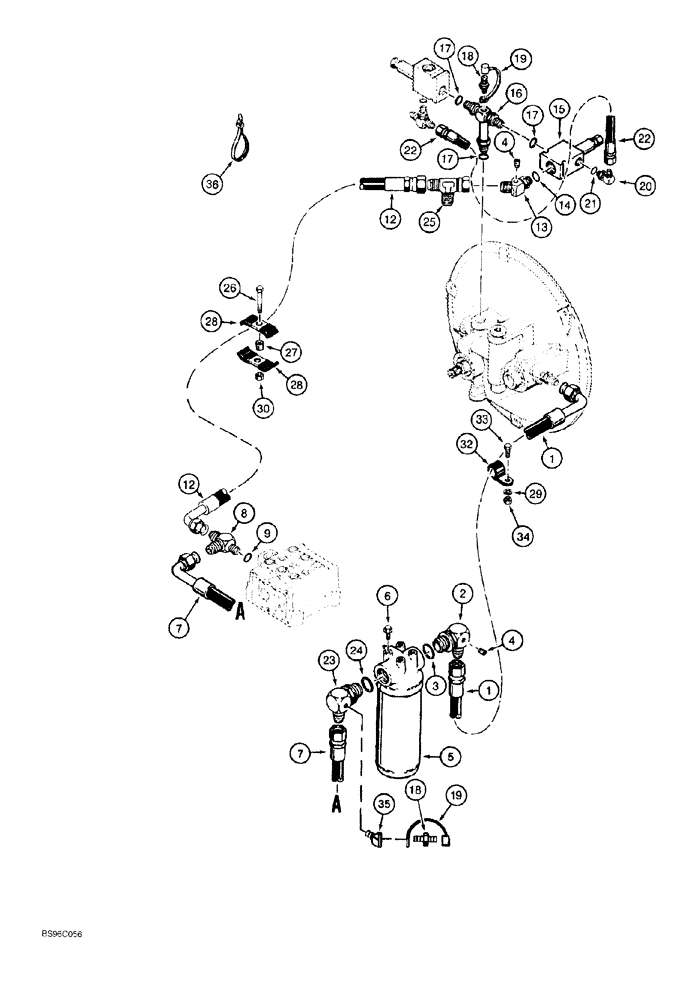

Запчасти Case 550G (6-26) - CRAWLER HYDRAULIC CIRCUIT, TORQUE CONVERTER TO TRANSMISSION (07) - HYDRAULIC SYSTEM

1

R57653

HOSE ASSY.

torque converter to filter, 1640 mm (64-5/8") long

1шт.

2

R49557

FITTING

ELBOW 90 degree, special, with check port, Includes: Ref. 3

1шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

4

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

If used

2шт.

5

R48993

FILTER

ASSY. transmission oil, see Figure 6-32

1шт.

6

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

hex flange, 3/8" NC x 3/4", grade 8

4шт.

7

132860A1

HOSE

filter to control valve on transmission, 990 mm (39") long

1шт.

8

218-5594

TEE,37 Degree, 1 1/16"-12, 7/8"-14 O-Ring Run, 1 1/16"-12

TEE hydraulic distribution, 1-1/16" -12 flare branch x flare x 7/8" -14 adjusting O-ring, Includes: Ref. 9

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

12

178403A1

HOSE ASSY.

control valve to relief valve, 875 mm (34-7/16") long

1шт.

13

R57596

FITTING

ELBOW 45 degree, special, see figure 4-9 for transmission oil pressure gauge, Includes: Ref. 14

1шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

15

R57582

VALVE

ASSY. relief, component parts not serviced separately, may order S301087 seal kit shown below for service of external O-rings

1шт.

16

R57585

FITTING

TEE special, at torque converter, see Figure 6-30 for pressure sensing valve, Includes: Ref. 17

1шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3шт.

18

H434164

COUPLING

quick check

2шт.

19

H434163

DUST CAP

Coupler

2шт.

20

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, 9/16"-18 flare x adjusting O-ring boss, Includes: Ref. 21

1шт.

22

L19294

HOSE,0.38" ID x 18.75", SAE 100R1

relief valve, to pressure sensing valve, 476 mm (18-3/4") long

1шт.

23

E20132

FITTING

ELBOW 90 degree, special, with check port, Replaces: D131329, Includes: Ref. 24

1шт.

24

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

25

218-5219

TEE,37 Degree, 7/8"-14 x 3/4"-16, Fem Sw Run x 3/4"-16 Br

3/4"-16 flare branch x 1-1/16" -12 flare x swivel

1шт.

26

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

1шт.

27

D76208

SPACER

.480" thick

1шт.

28

R15257

CLAMP

hose

2шт.

29

492-11038

LOCK WASHER,3/8"

1шт.

30

231-1446

NUT,3/8" - 16, Gr 5

1шт.

32

515-23286

CLAMP,1-1/8", Insul, 3/8" Bolt

P-type

1шт.

33

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

34

425-106

NUT,3/8"-16, Cl 5

1шт.

35

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

Street

1шт.

36

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15"

1шт.

S301087

SEAL KIT

repair, contains three O-rings and two backup rings which are not serviced separately, see Ref. 15

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
