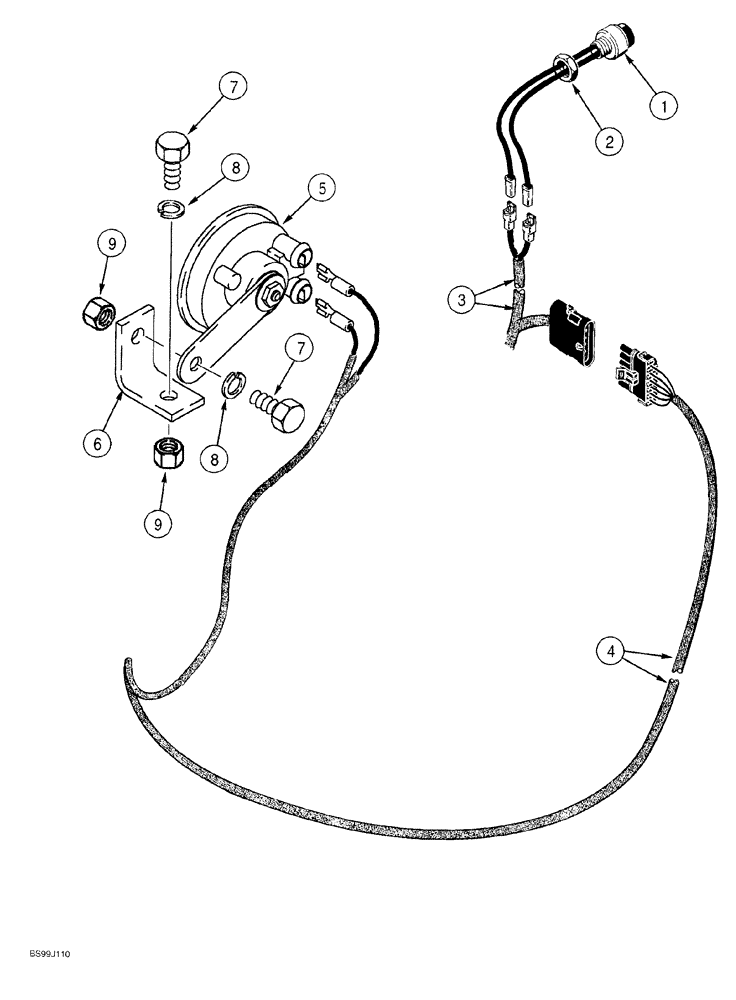

Запчасти Case 550G (4-25A) - HORN, MODELS WITH ONE HORN (06) - ELECTRICAL SYSTEMS

1

R58727

SWITCH

push-button, horn, includes harness connecting wires

1шт.

2

425-1510

JAM NUT,Jam, 5/8"-18, G5

Hex

1шт.

3

107226A1

HARNESS

rear wiring, see Figure 4-16 for continuation of harness

1шт.

4

255725A2

HARNESS

front wiring, see Figure 4-14 for continuation of harness

1шт.

5

237582A1

HORN

Bosch, 12 volt

1шт.

6

341258A1

BRACKET

mounting, mounts to radiator brace, see Figure 9-18 Ref. 27A

1шт.

7

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

8

492-11031

LOCK WASHER,5/16"

2шт.

9

425-105

NUT,5/16"-18, G5

2шт.
