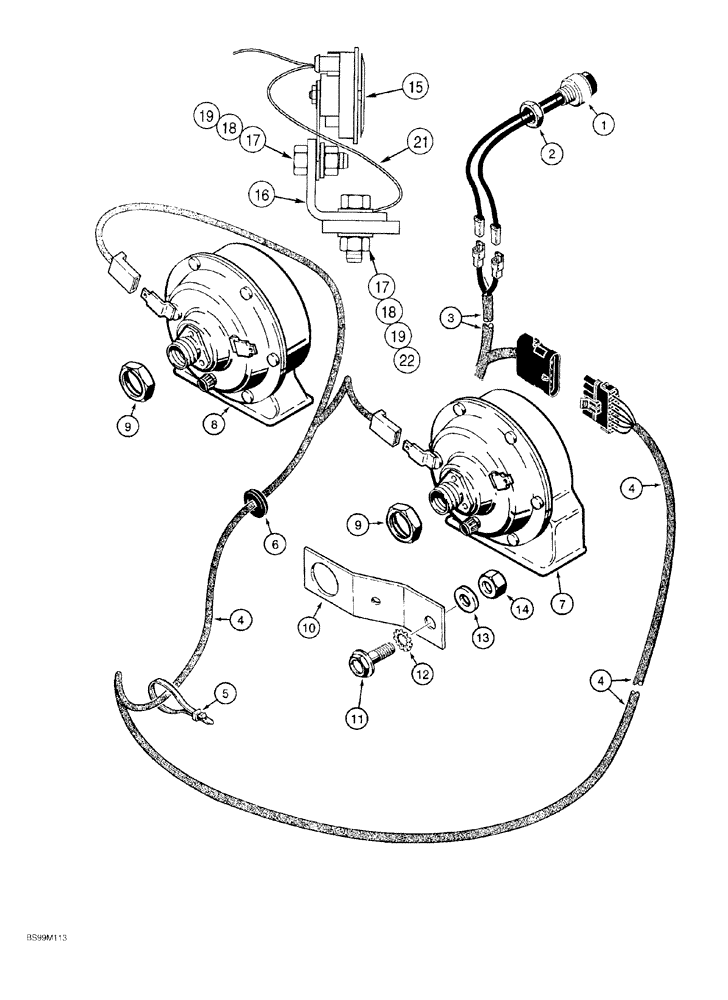

Запчасти Case 550G (4-24) - HORN, MODELS WITH TWO HORNS (06) - ELECTRICAL SYSTEMS

1

R58727

SWITCH

push-button, horn, includes harness connecting wires

1шт.

2

425-1510

JAM NUT,Jam, 5/8"-18, G5

Hex

1шт.

3

107226A1

HARNESS

rear wiring, see Figure 4-16 for continuation of harness

1шт.

4

126269A1

HARNESS

front wiring, see Figure 4-14 for continuation of harness, no longer available, order 256124A1 shown below

1шт.

4

256124A1

HARNESS

front wiring, see Figure 4-14 for continuation of harness, Serial Range: -JJG0255794

1шт.

4

255725A1

HARNESS

front wiring, see Figure 4-14 for continuation of harness, Start Serial: JJG0255794

1шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, horn wire to upper radiator hose, 15"

2шт.

6

D37936

GROMMET

rubber, horn wire, if used

1шт.

7

D123205

HORN

"A" note, right-hand, Delco Remy, 12 volt, no longer available, order 278556A1 shown below

1шт.

7

278556A1

HORN

"A" note, right-hand, Spartan, 12 volt, Replaces: D123205

1шт.

When stock is exhausted, order 345835A1 horn service kit which includes the 7-14310 instruction sheet.

1шт.

8

R45962

HORN

"F" note, left-hand, Delco Remy, 12 volt, if used

1шт.

When stock is exhausted, order 345835A1 horn service kit which includes the 7-14310 instruction sheet.

1шт.

8

278557A1

HORN

"F" note, left-hand, Spartan, 12 volt, if used

1шт.

When stock is exhausted, order 345835A1 horn service kit which includes the 7-14310 instruction sheet.

1шт.

9

L30866

LOCK NUT

hex, special

2шт.

10

284861A1

BRACKET

mounting, Replaces: R58788

2шт.

11

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

2шт.

12

493-11052

LOCK WASHER,Ext-Int Tooth, 1/2"

lock, internal/external tooth, 1/2"

2шт.

13

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

2шт.

14

425-108

NUT,1/2" - 13, Gr 5

2шт.

345835A1

KIT

horn, Includes: Ref. 15 - 22

1шт.

15

237582A1

HORN

Bosch, 12 volt

1шт.

16

341258A1

BRACKET

mounting, mounts to radiator brace, see Figure 9-18, Ref. 27A

1шт.

17

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

18

425-105

NUT,5/16"-18, G5

2шт.

19

492-11031

LOCK WASHER,5/16"

2шт.

20

278828A1

HARNESS

WIRE ground, horn to harness, not used on this model, not illustrated

1шт.

21

341260A1

HARNESS

WIRE ground, horn

1шт.

22

495-11034

WASHER,5/16", SAE

(flat, 11/32" x 11/16" x 1/16")

1шт.
