(4-20) - LAMP ASSEMBLY, FRONT AND REAR FLOOD

Запчасти Case 550G (4-20) - LAMP ASSEMBLY, FRONT AND REAR FLOOD (06) - ELECTRICAL SYSTEMS

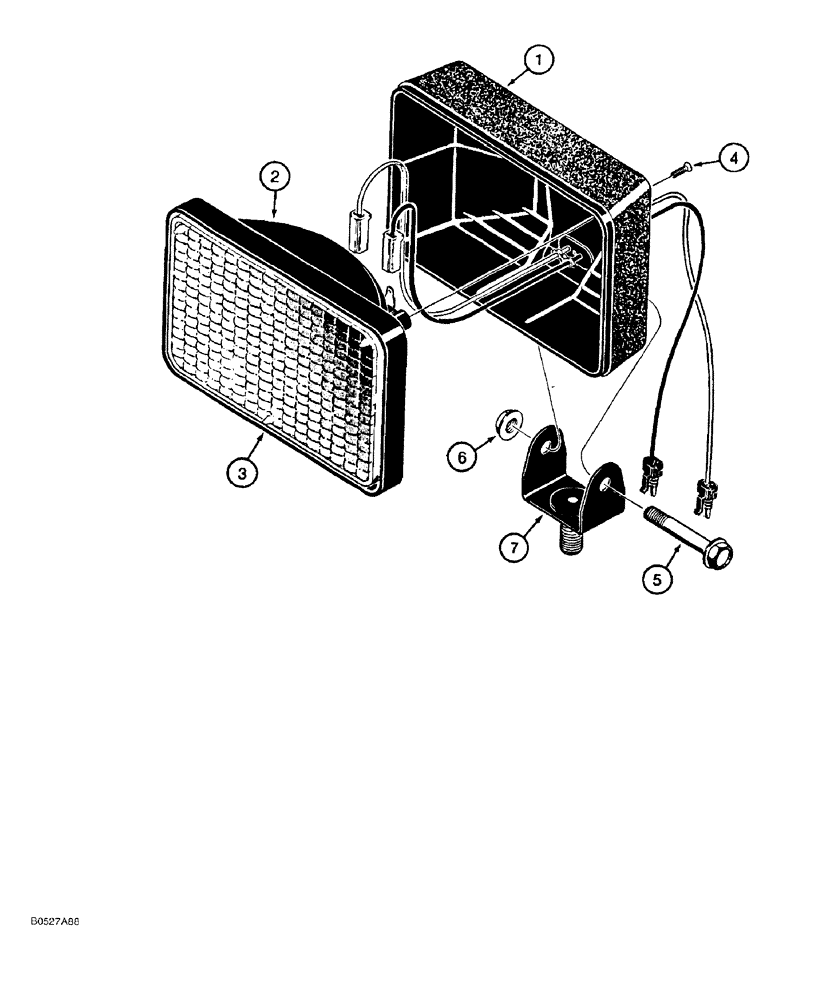

Схема запчастей Case 550G - (4-20) - LAMP ASSEMBLY, FRONT AND REAR FLOOD (06) - ELECTRICAL SYSTEMS
3
1
5
7
4
6
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

D137294

LIGHT ASSY.

front driving and rear flood, Includes: Ref. 1 - 7

4шт.

1

NSS

NOT SOLD SEPARAT

SHELL lamp

1шт.

2

NSS

NOT SOLD SEPARAT

RETAINER shell

1шт.

3

F45230

HEADLIGHT

BULB halogen

1шт.

4

273-5048

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

2шт.

5

121-232

SERRATED BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

6

230-4215

NUT,5/16"-18, GA

1шт.

7

N8347

SUPPORT

lamp, Replaces: N14626

1шт.
