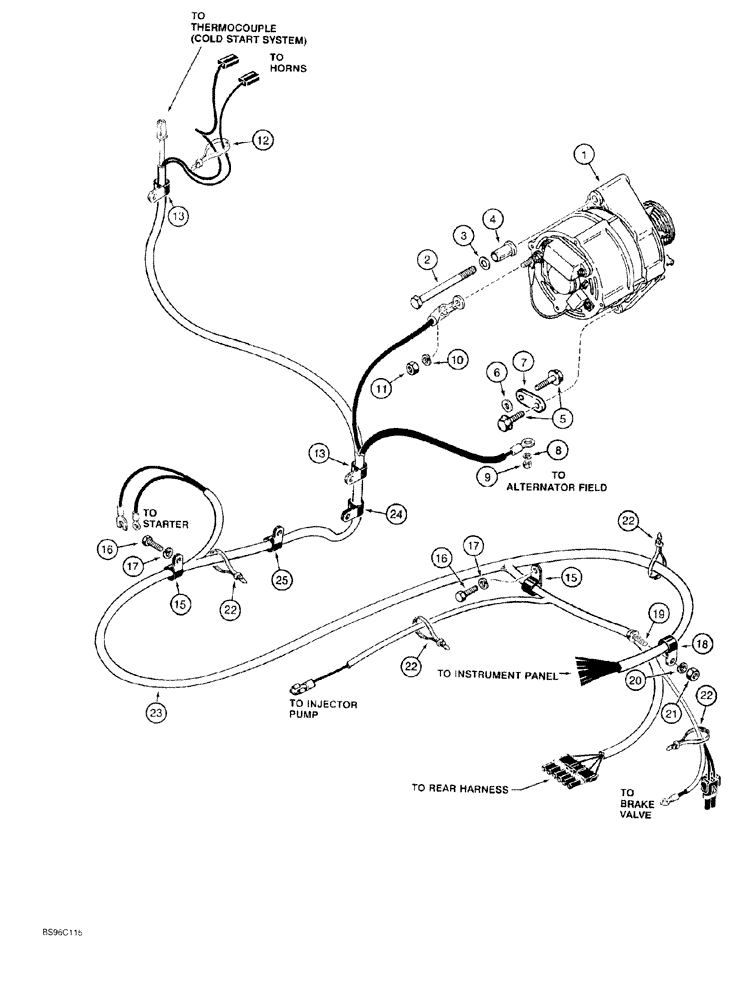

Запчасти Case 550G (4-14) - FRONT WIRING HARNESS AND ALTERNATOR MOUNTING (06) - ELECTRICAL SYSTEMS

1

A187873

ALTERNATOR,12V, 65A

ASSY. engine, 65 ampere, see Figure 4-06

1шт.

1

A187873GV

ALTERNATOR

Value, 65 Amp

1шт.

2

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

1шт.

3

892-11010

LOCK WASHER,M10

1шт.

4

J902469

SPACER

alternator mounting

1шт.

5

855-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 10.9

Heavy

2шт.

6

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

flat, special, 3/8"

1шт.

7

J903089

SUPPORT

alternator mounting

1шт.

8

892-11008

LOCK WASHER,8mm ID

1шт.

9

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

10

892-11005

LOCK WASHER,M5

1шт.

11

824-1405

NUT,M5, Cl 5

1шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15", used when options are not used

1шт.

13

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

P-type

2шт.

15

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

P-type

2шт.

16

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

Full threads

2шт.

17

892-11012

LOCK WASHER,M12

2шт.

18

S15544

CLAMP,1 5/16", Insul, 3/8" Bolt

harness

1шт.

19

160-103

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

1шт.

20

492-11038

LOCK WASHER,3/8"

1шт.

21

425-106

NUT,3/8"-16, Cl 5

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15"

1шт.

23

126269A1

HARNESS

front wiring, see Figure 4-10 for continuation of harness, no longer available, order 256124A1, shown below

1шт.

23

256124A1

HARNESS

front wiring, see Figure 4-10 for continuation of harness, prior to P.I.N. JJG0255794, used on models with two horns

1шт.

23

255725A1

HARNESS

front wiring, see Figure 4-10 for continuation of harness, P.I.N. JJG0255794 and after, used on models with two horns

1шт.

23a

255725A2

HARNESS

front wiring, see Figure 4-10 for continuation of harness, used on models with one horn, not illustrated

1шт.

24

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type

1шт.

25

49836

CLAMP

P-type, 1/2" ID

1шт.
