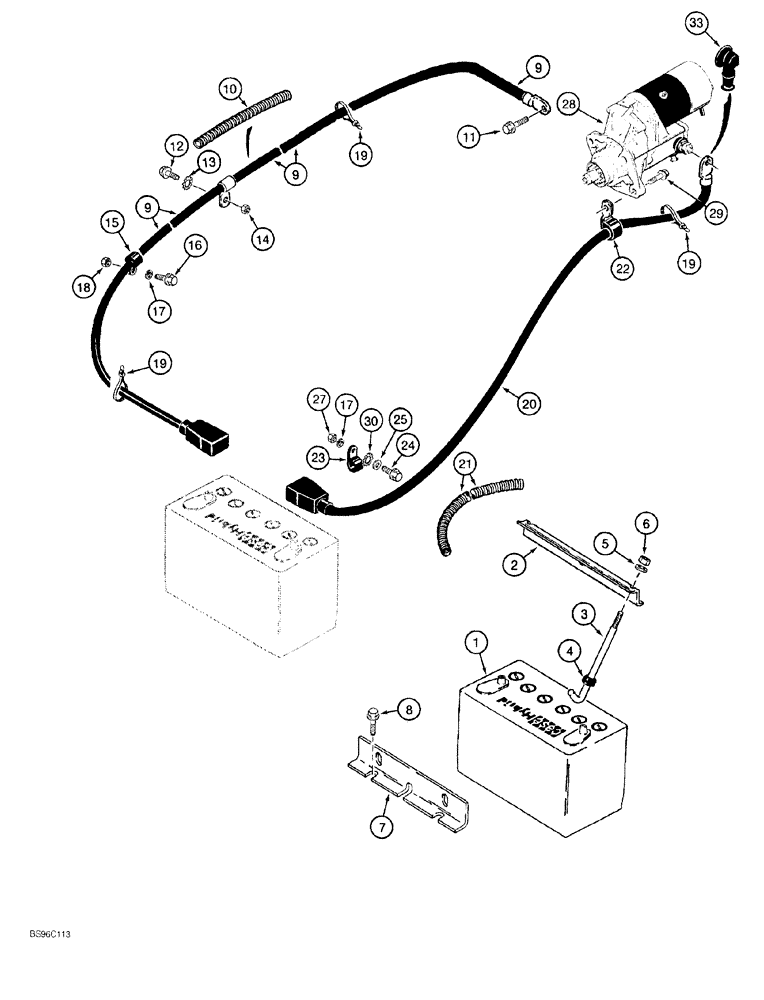

Запчасти Case 550G (4-12) - BATTERY MOUNTING, CABLES, AND STARTER (06) - ELECTRICAL SYSTEMS

1

BMF31E

DRY BATTERY

12V

1шт.

2

R51648

LARGE PLATE

PLATE, LARGE BRACKET battery retaining

1шт.

3

D59707

BOLT

J-type, 254 mm (10") long

2шт.

4

248-2198

GROMMET,3/8" ID x 5/8" Groove Dia

rubber, J-bolt, 5/8" groove dia., if used

2шт.

5

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, 13/32" x 13/16" x 1/16"

2шт.

6

231-1446

NUT,3/8" - 16, Gr 5

2шт.

7

R50651

BRACKET

PLATE battery mounting, rear

1шт.

8

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

2шт.

9

R57999

NEG BATTERY CABLE

includes clamp

1шт.

10

R42370

CABLE SHEATH

Conduit negative battery cable, 1778 mm (70") long, cut from R44806 bulk conduit shown below

1шт.

11

R54620

BOLT,Hex, Flange, M10 x 35mm CL 10.9

heavy hex flange, special, negative battery cable to torque converter

1шт.

12

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

1шт.

13

493-11052

LOCK WASHER,Ext-Int Tooth, 1/2"

lock, internal/external tooth, 1/2"

1шт.

14

425-108

NUT,1/2" - 13, Gr 5

1шт.

15

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

P-type

1шт.

16

160-103

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

1шт.

17

492-11038

LOCK WASHER,3/8"

2шт.

18

425-106

NUT,3/8"-16, Cl 5

1шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15"

1шт.

20

R57998

NEG BATTERY CABLE

positive

1шт.

21

R58000

LOOM

CONDUIT positive battery cable, 1841 mm (71-1/2") long

1шт.

22

R40419

CLAMP

twist, special

1шт.

23

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

P-type

1шт.

24

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

25

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

1шт.

27

425-106

NUT,3/8"-16, Cl 5

1шт.

28

1987559C1

STARTING MOTOR

ASSY. engine, new, see Figure 4-02

1шт.

28

86982709R

REMAN-STARTER,12V, 2.5kW

Reman for New PN 1987559C1

1шт.

28

86982709C

CORE-STARTER,12V, 2.5kW

Return Part Number

1шт.

28

104452A2R

REMAN-STARTER

Remanufactured STARTER 12 volt, 2.5KW

1шт.

28

104452A1C

CORE-STARTER

Return Part Number, STARTER 12 volt, 2.5KW

1шт.

29

R54620

BOLT,Hex, Flange, M10 x 35mm CL 10.9

heavy hex flange, special

2шт.

30

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

1шт.

33

L126713

BOOT

plastic, at starter

1шт.

R44806

LOOM

CONDUIT bulk, 2248 mm (88-1/2") long, see Ref. 10

1шт.
