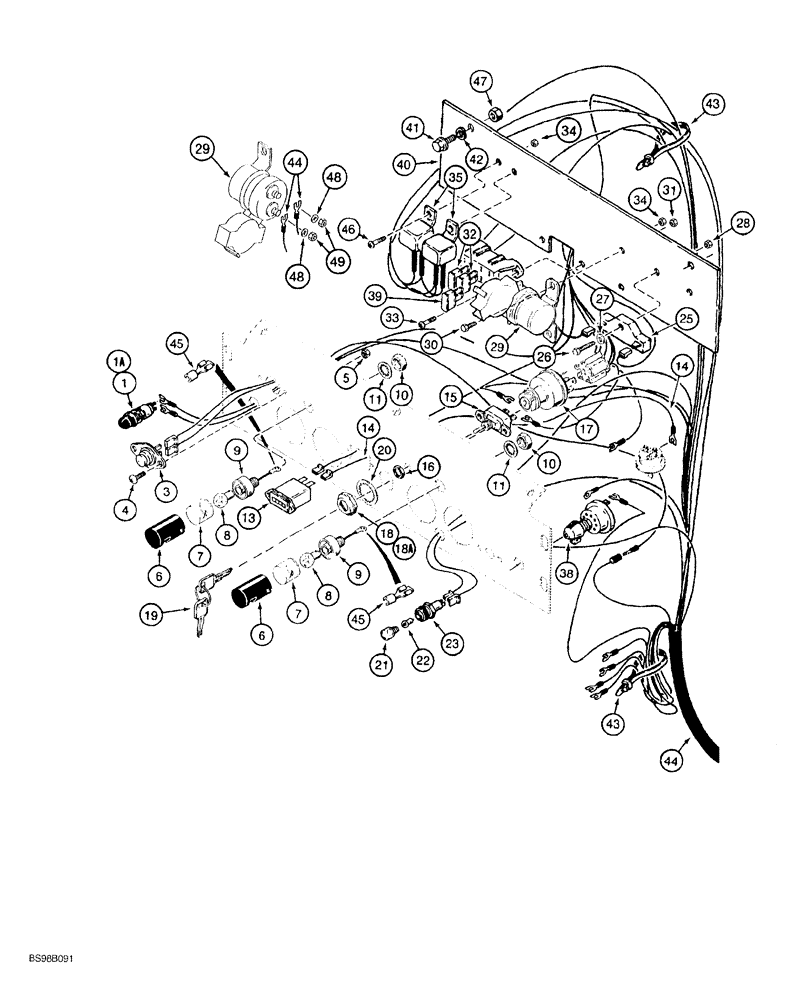

Запчасти Case 550G (4-10) - INSTRUMENT PANEL WIRING (06) - ELECTRICAL SYSTEMS

1

121815C91

LAMP

ASSY. indicator, Includes: Ref. 1A

1шт.

1a

200557H1

BULB,C2V, #1815, 14V

No. 1815

1шт.

3

D67872

SWITCH

push-button, cold start

1шт.

4

140-105

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

2шт.

5

86625057

NUT,#10-24, GB

2шт.

185383A1

ASSEMBLY

KIT instrument panel lamp, includes instructions, Replaces: D35815, Includes: Ref. 6 - 10

2шт.

6

D37918

COVER

lamp

1шт.

7

D37919

LENS

lamp

1шт.

8

71421

BULB,R5W, 12V, 5W

lamp, No. 67

1шт.

9

NSS

NOT SOLD SEPARAT

BODY lamp, includes wire

1шт.

10

D39095

NUT

special

1шт.

10a

377630C1

CONNECTOR, ELEC

CONNECTOR lamp assy., not illustrated

1шт.

11

493-21065

LOCK WASHER,Int Tooth, 5/8"

lock, internal tooth, 5/8"

2шт.

13

L107631

METER

hour, engine

1шт.

14

R27252

HARNESS

WIRE, hourmeter to pressure switch

1шт.

15

R50405

SWITCH

toggle, fuel shutoff, Includes: Ref. 16

1шт.

26

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

16

N13588

SPECIAL NUT

special

1шт.

R57312

IGNITION SWITCH

ASSY., no longer available, order D134737, shown below, Includes: Ref. 17 - 19A

1шт.

D134737

IGNITION SWITCH

SWITCH ASSY. ignition, includes keys, if used, Includes: Ref. 17 - 19A

1шт.

282775A1

IGNITION SWITCH

ASSY., includes keys, if used, not illustrated, Includes: Ref. 17 - 19A

1шт.

17

NSS

NOT SOLD SEPARAT

SWITCH ignition

1шт.

18

101760A1

SPECIAL NUT

hex, special, ignition switch, brass, R57312 switch

1шт.

18a

A77314

NUT

hex, special, ignition switch, chrome plated, D134737 or 282775A1 switch

1шт.

19

A77313

SET OF 2 KEYS

metal without padding, R57312 or D134737 switch

1шт.

19a

1964831C2

IGNITION KEY

padded, 282775A1 switch, not illustrated

1шт.

20

493-21104

LOCK WASHER,Int Tooth, 1"

1шт.

109369C91

LIGHT ASSY.

indicator, Includes: Ref. 21 - 23

1шт.

21

71652C1

LENS

lamp

1шт.

22

200557H1

BULB,C2V, #1815, 14V

No. 1815

1шт.

23

NSS

NOT SOLD SEPARAT

BODY lamp

1шт.

25

F22316

RESISTOR,75 Ohms 0.2 Amps DC

75 ohm

1шт.

27

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

1шт.

28

231-1444

NUT,1/4"-20, GB

1шт.

29

120399A1

RELAY

switch, 12 volt, (2) used on models with emission engines

1-2шт.

30

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2-4шт.

31

231-1444

NUT,1/4"-20, GB

2-4шт.

32

A149800

FUSE,10 Amp

red, 10 ampere

2шт.

33

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

4шт.

34

86625057

NUT,#10-24, GB

6шт.

35

D128310

RELAY

30 ampere

2шт.

38

R54064

IGNITION SWITCH

lamp

1шт.

39

A149804

FUSE

light green, 30 ampere

1шт.

40

R58073

PANEL

instrument mounting, prior to P.I.N. JJG0255794

1шт.

40a

255688A1

PANEL

instrument mounting, P.I.N. JJG0255794 and after, not illustrated

1шт.

41

160-103

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

2шт.

42

492-11038

LOCK WASHER,3/8"

2шт.

43

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15"

1шт.

44

126269A1

HARNESS

front wiring, includes fuse block, see Figure 4-14 for continuation of harness, no longer available, order 256124A1, shown below

1шт.

44

256124A1

HARNESS

front wiring, includes fuse block, see Figure 4-14 for continuation of harness, prior to P.I.N. JJG0255794

1шт.

44

255725A2

HARNESS

front wiring, includes fuse block, see Figure 4-14 for continuation of harness, P.I.N. JJG0255794 and after, Replaces: 255725A1

1шт.

45

223-74

SPADE TERMINAL

straight spade, SAE No. H203, No. 8, used to attach Ref. 9 lamp wires to Ref. 38 switch, if used

1шт.

46

140-105

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

2шт.

47

425-106

NUT,3/8"-16, Cl 5

2шт.

48

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

2шт.

49

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.
