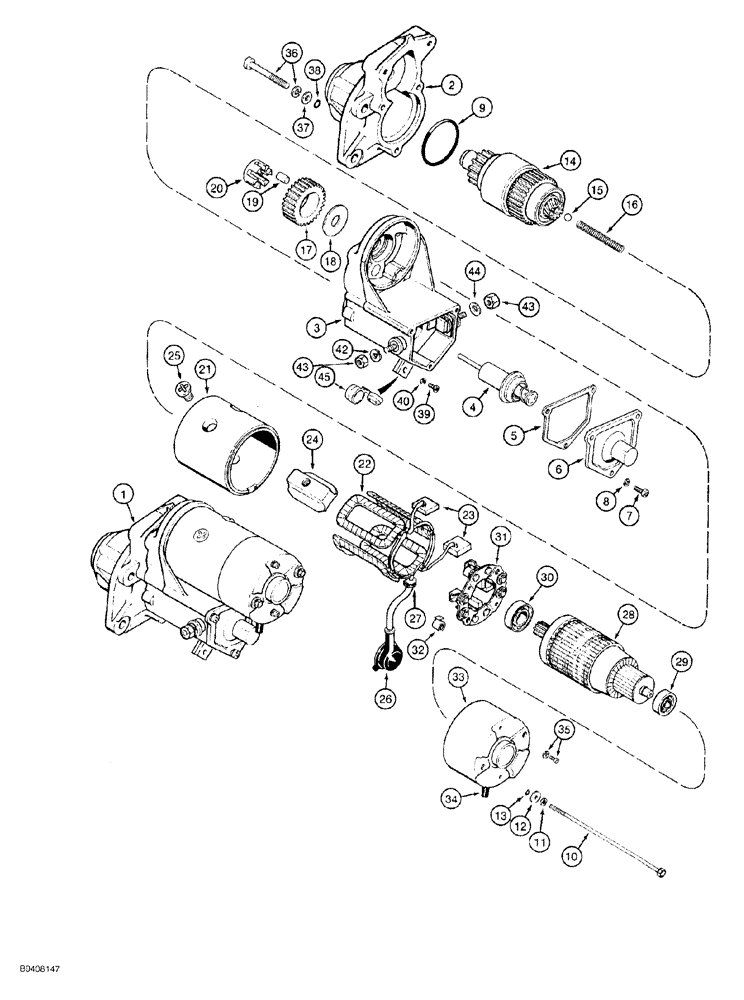

Запчасти Case 550G (4-02) - STARTER (06) - ELECTRICAL SYSTEMS

1

1987559C1

STARTING MOTOR

ASSY. engine, new, Includes: Ref. 2 - 45

1шт.

1

86982709R

REMAN-STARTER,12V, 2.5kW

Reman for New PN 1987559C1

1шт.

1

86982709C

CORE-STARTER,12V, 2.5kW

Return Part Number

1шт.

1

104452A2R

REMAN-STARTER

Remanufactured Starter 12 volt, 2.5KW

1шт.

1

104452A1C

CORE-STARTER

Return Part Number, Starter 12 volt, 2.5KW

1шт.

2

A46948

HOUSING

drive end

1шт.

3

104588A1

SOLENOID

magnetic, Includes: Ref. 4 - 8

1шт.

4

NSS

NOT SOLD SEPARAT

SOLENOID switch

1шт.

5

NSS

NOT SOLD SEPARAT

GASKET solenoid cover

1шт.

6

NSS

NOT SOLD SEPARAT

COVER solenoid

1шт.

7

NSS

NOT SOLD SEPARAT

SCREW, Serial Range: cover-switch

3шт.

8

NSS

NOT SOLD SEPARAT

WASHER cover screw

3шт.

9

1546500C1

SEAL,2.4mm Thk x 47.2mm ID

switch to housing, 47 mm ID x 2.4 mm wide

1шт.

A47243

BOLT

ASSY. through, Includes: Ref. 10 - 13

2шт.

10

A47128

BOLT

tie, starter

1шт.

11

892-11006

LOCK WASHER,M6

1шт.

12

495-81252

WASHER,#12

(Flat, 1/4" x 9/16" x 1/16")

1шт.

13

A47127

O-RING

bolt seal

1шт.

14

104587A1

CLUTCH

drive

1шт.

15

211-1311

BALL,11/32" Dia

chrome alloy steel, grade 200

1шт.

16

A47232

SPRING

compression, 2-13/16" free length

1шт.

17

A47233

GEAR

PINION idler

1шт.

18

A47234

WASHER

thrust

1шт.

19

A47235

ROLLER BEARING

pinion bearing

5шт.

20

A47236

RETAINER

roller bearing

1шт.

A47240

HOUSING

ASSY., with coil and brushes, Includes: Ref. 21 - 26

1шт.

21

NSS

NOT SOLD SEPARAT

HOUSING starter

1шт.

22

NSS

NOT SOLD SEPARAT

COIL field

1шт.

23

NSS

NOT SOLD SEPARAT

BRUSHES starter

2шт.

24

NSS

NOT SOLD SEPARAT

SHOE pole

4шт.

25

NSS

NOT SOLD SEPARAT

SCREW pole shoes

4шт.

26

NSS

NOT SOLD SEPARAT

BOOT magnetic switch terminal

1шт.

27

A47241

PLATE

lock

1шт.

28

A47242

ARMATURE

ASSY. starter, Includes: Ref. 29 and 30

1шт.

29

452698C1

BALL BEARING,10mm ID x 30mm OD x 9mm W

Commutator end

1шт.

30

A47247

BALL BEARING,17mm ID x 35mm OD x 10mm W

drive end

1шт.

31

A47239

HOLDER

ASSY. brush, includes two brushes, Includes: Ref. 32

1шт.

32

A47249

SPRING

brush tension

4шт.

33

A47237

FRAME

commutator end

1шт.

34

A47238

COVER

end frame

1шт.

35

A47244

CAPTIVE WASHER SCREW,Cross Pan Hd, M5 x 0.8 x 8mm

ASSY., with washer, brush retaining

2шт.

A47230

BOLT

ASSY., Includes: Ref. 36 - 38

3шт.

36

A47129

CAPTIVE WASHER SCREW

ASSY., with washer

1шт.

37

195-2015

WASHER

flat, 1/4" x 1-3/4" x 1/16"

1шт.

38

A47130

O-RING

bolt seal

1шт.

39

A46950

SCREW,M5 x 0.8 x 0.8mm

terminal, special, 5 x 8 mm

1шт.

40

892-11005

LOCK WASHER,M5

1шт.

42

892-11010

LOCK WASHER,M10

1шт.

43

825-1410

NUT,M10, Cl 8

Field coil terminal

2шт.

44

A10454

WAVE WASHER

spring, field coil terminal

1шт.

45

104589A1

BUSHING

insulation

1шт.
