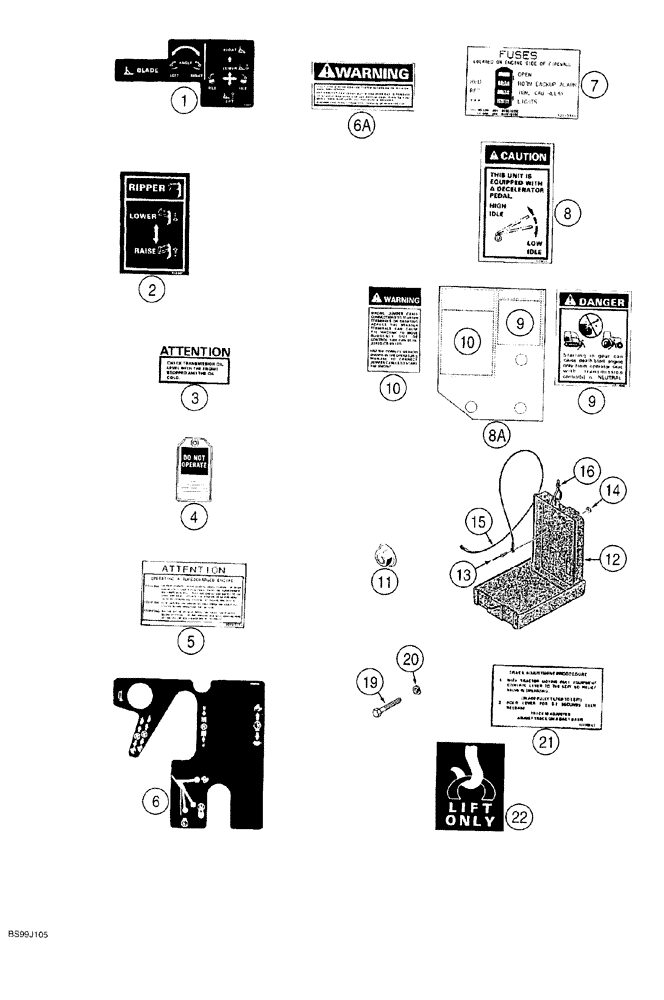

Запчасти Case 550G (9-38) - DECALS AND OPERATORS MANUAL BOX (05) - UPPERSTRUCTURE CHASSIS

185435A1

KIT

decals, also includes Ref. 1 - 18 in Figure 9-36, no longer available, order components, Includes: Ref. 1 - 10

1шт.

1

178505A1

DECAL

dozer blade control pattern, lift, angle and tilt

1шт.

2

321-4185

DECAL

ripper control pattern

1шт.

3

R50495

DECAL

attention, check the transmission oil level

1шт.

4

321-4614

TAG

TAG do not operate

1шт.

5

102436A1

DECAL

attention, operating turbocharged engine

1шт.

6

178498A1

DECAL

crawler controls, forward/neutral/reverse

1шт.

6a

321-6672

DECAL

warning, check and service cooling system

1шт.

7

101759A1

DECAL

fuses

1шт.

7a

321-4192

DECAL

warning, do not modify ROPS, not illustrated

1шт.

8

101638A1

DECAL

caution, this unit is equipped with a decelerator pedal

1шт.

8a

109696A1

LARGE PLATE

PLATE, LARGE decal mounting

1шт.

9

321-7040

DANGER DECAL

Starting in gear can cause death

1шт.

10

321-6872

DECAL

warning, wrong jumper cable connections to starter terminals

1шт.

10a

H332536

PAD

STRIP anti-skid, not illustrated

1шт.

11

131-431

PUSH-ON NUT,Self, Threading, 1/4"

Push-on type

1шт.

12

R46464

CASE

BOX operators manual

1шт.

13

151-522

RIVET,Pop, 3/16" x .575"

Break mandrel

3шт.

14

495-31020

WASHER,#10

Flat (13/64" x 15/32" x 3/64")

3шт.

15

R46465

CABLE,36mm L

CORD manual retaining

1шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, manual box, 15"

1шт.

19

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

Full threads

2шт.

20

892-11012

LOCK WASHER,M12

2шт.

21

124200A1

DECAL

track adjustment procedure, used with rubber track models only, not illustrated

1шт.

22

321-3587

DECAL

lift only

4шт.
