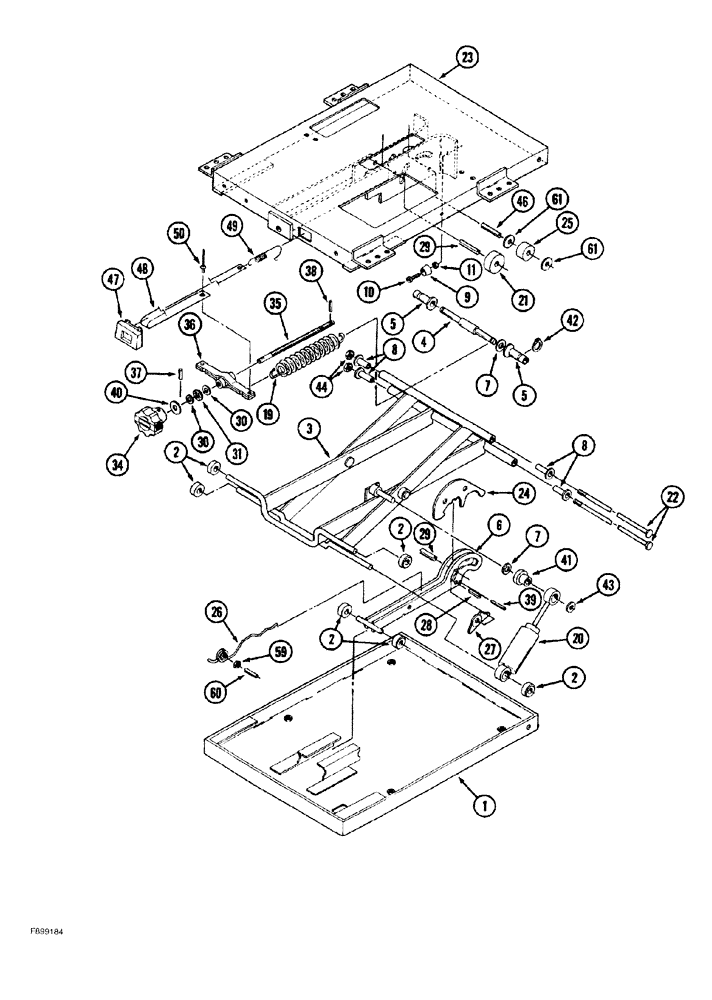

Запчасти Case 550G (9-31C) - SUSPENSION SEAT ASSEMBLY (05) - UPPERSTRUCTURE CHASSIS

175764A1

SEAT ASSY.

suspension, gray vinyl, includes parts in Figure 9-28, Includes: Ref. 1 - 61

1шт.

241190A1

PACKAGE

suspension, mechanical seat, Replaces: 1981819C2, Includes: Ref. 1 - 61

1шт.

Suspension Kit also includes bellows and clips.

1шт.

1

241193A1

HOUSING

lower

1шт.

2

1344249C1

KIT

KIT tube and bearing

6шт.

3

1981789C2

SUPPORT

ARM suspension

1шт.

4

128115A1

SHAFT

spring

1шт.

5

123968A2

PACKAGE

weight adjustment spring, Replaces: 1981791C1 bushing

2шт.

6

1981792C1

ARM

mounting

1шт.

7

A45519

WASHER

flat, plastic, special, 33/64 x 1-1/8 x 1/16 inch, order A45110 and A45116 spacers

5шт.

8

A47760

BUSHING

TUBE bearing

4шт.

9

180609A1

PACKAGE

bumper

1шт.

10

440-11010

SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"

2шт.

11

231-14409

NUT,#10-24, GB

hex, NC

2шт.

123968A2

PACKAGE

weight adjustment spring, Replaces: 1981794C1, Includes: Ref. 91 and 19A

1шт.

19

NSS

NOT SOLD SEPARAT

SPRING extention

2шт.

19a

NSS

NOT SOLD SEPARAT

BUSHING spring, not illustrated

2шт.

20

1344250C2

KIT

shock absorber

1шт.

21

123967A1

PACKAGE

cam follower

1шт.

22

A49529

SHAFT

bushing tube

2шт.

23

241192A1

HOUSING

upper, Replaces: 1981821C1

1шт.

24

1981798C1

CAM

low profile

1шт.

25

123967A1

PACKAGE

cam follower, Replaces: 1981799C1 bearing

1шт.

26

123966A1

PACKAGE

height adjustment

1шт.

27

301541A1

ARM ASSY.

cam

1шт.

28

138-110

LOCK PIN,7/32" x 3/4", Slotted

1шт.

29

138-172

LOCK PIN,3/8" x 1 1/4", Slotted

2шт.

30

1987116C2

PACKAGE

weight adjuster, Replaces: 1981802C1 race

2шт.

31

F13537

THRUST BEARING

thrust

1шт.

123969A1

SEAT ACCESSORY

Kit, Knob and shaft assy, Incl Ref 34 and 35

1шт.

34

NSS

NOT SOLD SEPARAT

KNOB weight adjustment

1шт.

35

NSS

NOT SOLD SEPARAT

SHAFT weight adjusting

1шт.

36

1987116C2

PACKAGE

weight adjuster

1шт.

37

38-11016

LOCK PIN,5/32" x 1", Slotted

1шт.

38

38-11010

LOCK PIN,5/32" x 5/8", Slotted

5/32" x 5/8", Slotted

1шт.

39

38-21010

PIN,3.96mm OD x 15.88mm L, Coiled

1шт.

40

1974732C1

WASHER

flat, 25/64" x 1-1/8" x 1/8"

1шт.

41

A45501

BUSHING,0.504" ID x 0.87" OD x 1.417"

BEARING shock absorber

2шт.

42

A49623

RING, SNAP

RING SNAP retaining

2шт.

43

131-425

PUSH-ON NUT,Push, 1/2"

2шт.

44

230-4216

LOCK NUT,3/8"-16, GA

2шт.

46

138-155

LOCK PIN,5/16" x 1 1/4", Slotted

1шт.

47

1981807C1

GUIDE

weight adjustment

1шт.

1999901C2

PACKAGE

weight adjusting guide, Includes: Ref. 48 and 49

1шт.

48

NSS

NOT SOLD SEPARAT

TAPE adjustment, weight

1шт.

49

NSS

NOT SOLD SEPARAT

SPRING suspension, weight

1шт.

50

151-537

RIVET,Pop, 1/8" x .650"

break mandrel, 1/8" x 21/32"

1шт.

59

230-4115

LOCK NUT,5/16"-18, GA

hex, self-locking, 5/16" NC

1шт.

60

438-11214

LOCK PIN,4.76mm OD x 22.23mm L, Slotted

3/16" x 7/8", Slotted

1шт.

61

495-11034

WASHER,5/16", SAE

(flat, 11/32" x 11/16" x 1/16")

2шт.
