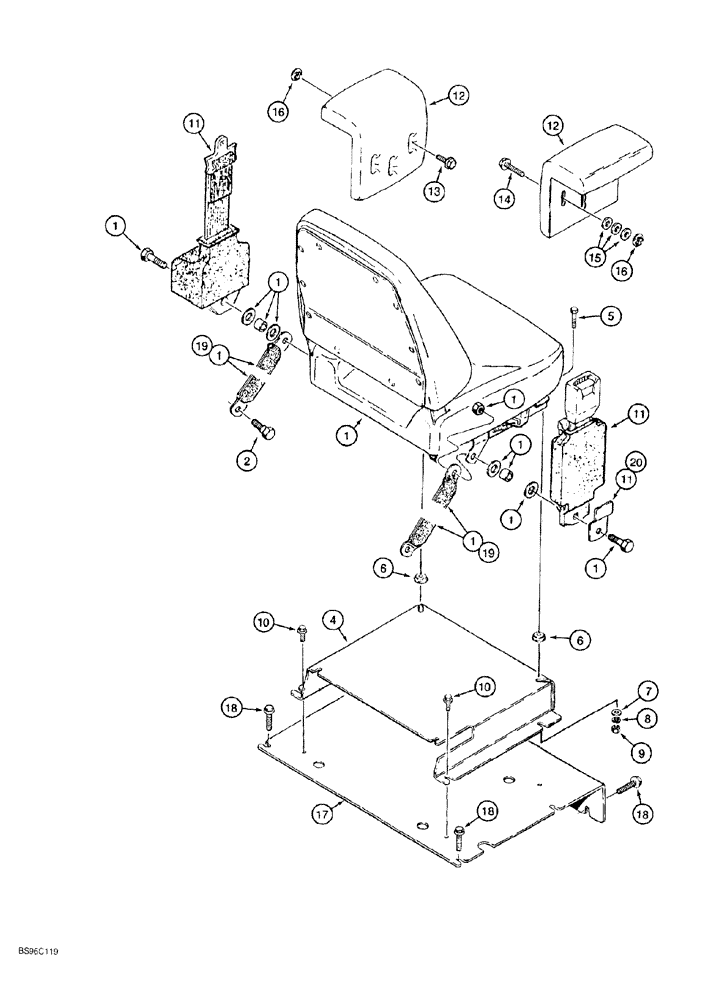

Запчасти Case 550G (9-22) - STANDARD SEAT MOUNTING, ARMRESTS AND SEAT BELT (05) - UPPERSTRUCTURE CHASSIS

1

175763A1

SEAT ASSY.

standard, see Figure 9-26

1шт.

2

F42236

STEP BOLT

shoulder, special

2шт.

4

R58831

SUPPORT

seat mounting

1шт.

5

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

4шт.

6

700711545

CUP WASHER

SPACER slides, front only

2шт.

7

495-11034

WASHER,5/16", SAE

(flat, 11/32" x 11/16" x 1/16")

4шт.

8

492-11031

LOCK WASHER,5/16"

4шт.

9

425-105

NUT,5/16"-18, G5

4шт.

10

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

4шт.

11

R58339

SAFETY BELT ,2.00" W

Retractable, Includes reinforcing bracket at mounting, If used

1шт.

11

R58418

SAFETY BELT ,3.00" W

Retractable, Includes reinforcing bracket at mounting, If used

1шт.

11

D150377

SAFETY BELT ,2.00" W

Retractable, Without reinforcing bracket at mounting, Must purchase bracket separately, Used with D150393 belt reinforcing bracket, Ref. 20, If used

1шт.

12

194738A1

ARMREST

cushion, Replaces: 144427A1

2шт.

13

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

3шт.

14

160-103

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

3шт.

15

496-21041

WASHER,13/32" x 13/16" x .089", HDN

Used with Ref. 14 bolt only, three used between armrest and each mounting location on hydraulic tank

9шт.

16

131-415

JAM NUT,Push, Bolt Retainer, 3/8" x 25/32"

6шт.

17

R58717

PLATE

SUPPORT seat mounting, at seat and tank frame

1шт.

18

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

6шт.

19

R57317

SAFETY BELT ,1.80" W x 10.50" L

Strap

2шт.

20

D150393

BRACKET

reinforcing, seat belt, if used

1шт.
