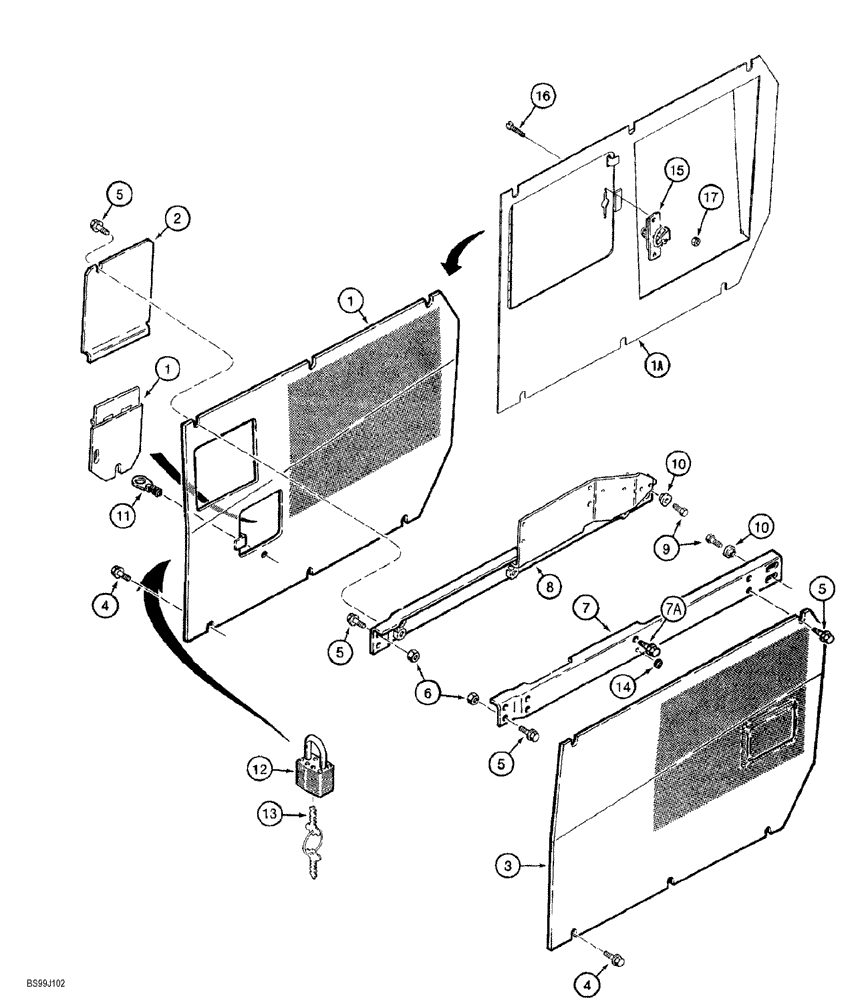

Запчасти Case 550G (9-20) - SIDE SHIELDS (05) - UPPERSTRUCTURE CHASSIS

1

R48058

PANEL

SHIELD engine side, left-hand, Serial Range: -JJG0255794

1шт.

1a

309735A1

SHIELD

engine side, left-hand, Start Serial: JJG0255794

1шт.

2

R48060

COVER

left-hand side shield, air cleaner access, Serial Range: -JJG0255794

1шт.

3

R48061

PANEL

SHIELD engine side, right-hand

1шт.

4

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

6шт.

5

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

9шт.

6

231-1448

NUT,1/2"-13, GB

hex, NC

4шт.

7

R51790

SUPPORT

side shield, right-hand

1шт.

7a

160-105

BOLT,Hex, 1/2" - 13 x 3/4", Gr 8

1шт.

8

R53116

SUPPORT

side shield, left-hand

1шт.

9

413-814

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5

hex, 1/2" NC x 7/8"

4шт.

10

R54996

SPACER

front mounting holes

4шт.

11

R42674

LOCKING DEVICE

FASTENER access door

1шт.

12

D93753

PADLOCK

includes keys, Includes: Ref. 13

1шт.

13

R29555

KEY

for Master padlock only

2шт.

13

D93751

SET OF 2 KEYS

for Yale padlock only

2шт.

14

A161780

BUMPER

rubber, right-hand support only

1шт.

15

L102515

LATCH

shield, Start Serial: JJG0255794

1шт.

16

470-1108

SCREW,Slotted Pan Hd, #10-24 x 1/2"

machine, pan head slotted, No. 10 NC x 1/2", Start Serial: JJG0255794

2шт.

17

F45165

SPECIAL NUT,#10-24

hex, self-locking, special, No. 10 NC, Start Serial: JJG0255794

2шт.
