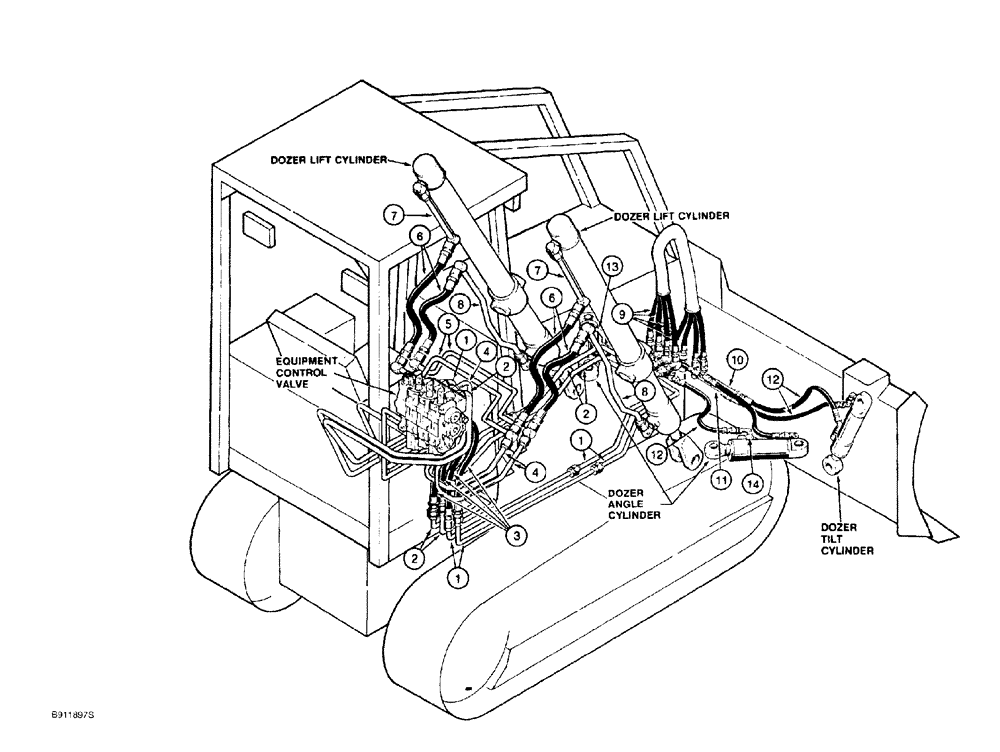

Запчасти Case 550G (1-14) - PICTORIAL INDEX, DOZER LIFT, TILT AND ANGLE HYDRAULIC CIRCUIT (00) - PICTORIAL INDEX

1

Tilt tubes from control valve to grille, Page 8-13

1шт.

2

Angle tubes from control valve to grille, Page 8-13

1шт.

3

Intermediate tilt and angle hoses, Page 8-13

1шт.

4

Lift tubes from control valve, Page 8-11

1шт.

5

Crossover tubes to lift cylinders, Page 8-11

1шт.

6

Hoses to lift cylinders, Page 8-11

1шт.

7

Tube to closed end of lift cylinders, Page 8-11

1шт.

8

Tube to rod end of lift cylinders, Page 8-11

1шт.

9

Tilt and angle hoses from grille to blade, Page 8-15

1шт.

10

Tube to rod end of tilt cylinder, Page 8-15

1шт.

11

Tube to closed end of tilt cylinder, Page 8-15

1шт.

12

Hoses to tilt and angle cylinders, Page 8-15

1шт.

13

Tube to rod end to left-hand angle cylinder, Page 8-15

1шт.

14

Tube to rod end of right-hand angle cylinder, Page 8-15

1шт.
