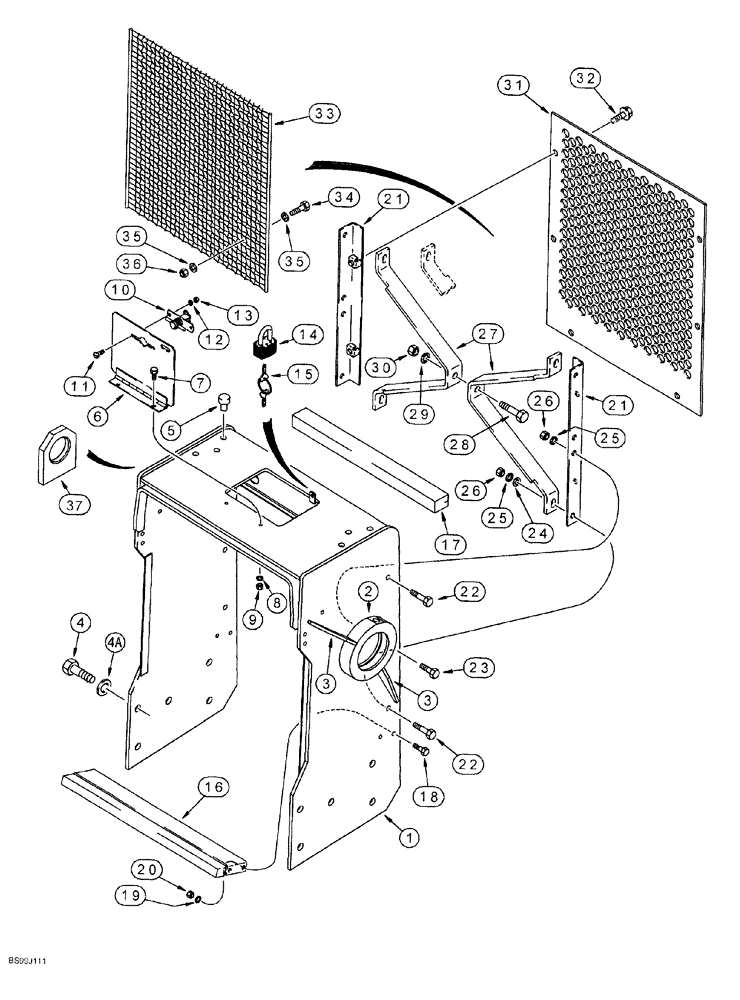

Запчасти Case 550G (9-18) - RADIATOR SHROUD, GRILLE AND SCREEN (05) - UPPERSTRUCTURE CHASSIS

1

R58288

SHIELD

SHROUD ASSY. radiator, Includes: Ref. 2 and 3

1шт.

2

D31317

RACE

lift trunnion

2шт.

3

R42367

GUSSET

trunnion race

4шт.

4

107-91228

LOCK BOLT,Locking, 3/4"-10 x 1 3/4", G8, Full Thd

10шт.

4a

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, special, 3/4"

10шт.

5

R38089

CUSHION ASSY.

BUMPER rubber, used on models without brush guard

6шт.

6

R58131

COVER

radiator access

1шт.

7

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

8

492-11025

LOCK WASHER,1/4"

2шт.

9

425-104

NUT,1/4"-20, Cl 5

2шт.

10

L102515

LATCH

radiator, Replaces: R51672

1шт.

11

470-1108

SCREW,Slotted Pan Hd, #10-24 x 1/2"

machine, pan head slotted, No. 10 NC x 1/2"

2шт.

12

492-11010

LOCK WASHER,#10

If Used

2шт.

13

F45165

SPECIAL NUT,#10-24

hex, self-locking, special, No. 10 NC, Replaces: 225-14110

2шт.

14

D93753

PADLOCK

includes keys

1шт.

15

R29555

KEY

for Master padlock only

2шт.

15

D93751

SET OF 2 KEYS

for Yale padlock only

2шт.

16

184407A1

ANGLE

BAFFLE radiator, lower, includes pad

1шт.

17

R46759

PROTECTION STRIP

PAD radiator baffle, upper

1шт.

18

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

19

492-11038

LOCK WASHER,3/8"

4шт.

20

425-106

NUT,3/8"-16, Cl 5

4шт.

21

180328A1

ANGLE

BRACKET grille and brace mounting

2шт.

22

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Hex, Upper and lower holes

4шт.

23

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

Center holes

2шт.

24

495-21056

WASHER,1/2"

flat, upper and lower holes, 9/16" x 1-3/8" x 7/64"

4шт.

25

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

26

425-108

NUT,1/2" - 13, Gr 5

6шт.

27

180329A1

SUPPORT

grille and shroud, no longer available, order 180329A2 shown below

2шт.

Braces are reversed on models using Ref. 33, front brush radiator screen. See portion of the brace drawn in phantom in the illustration for correct installation.

1шт.

27a

180329A2

BRACE

grille and shroud support, Replaces: 180329A1, used with Bosch horn 237582A1 and bracket 341258A1 found in Figure 4-25A, not illustrated

2шт.

Braces are reversed on models using Ref. 33, front brush radiator screen. See portion of the brace drawn in phantom in the illustration for correct installation.

1шт.

28

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

hex, 5/8" NC x 1-3/4"

1шт.

29

492-11062

BEARING WASHER,5/8"

1шт.

30

425-1010

NUT,5/8"-11, G5

1шт.

31

180336A1

GRILLE

radiator brush

1шт.

32

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

6шт.

33

183908A1

SCREEN

radiator, front brush, if used

1шт.

34

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

10шт.

35

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

flat, special, 3/8"

20шт.

36

231-1446

NUT,3/8" - 16, Gr 5

10шт.

37

R40957

BRACKET lift, part is welded on

2шт.

345-44

ADHESIVE

spray can, 3M No. 74, 23 ounce, obtain locally

1шт.
