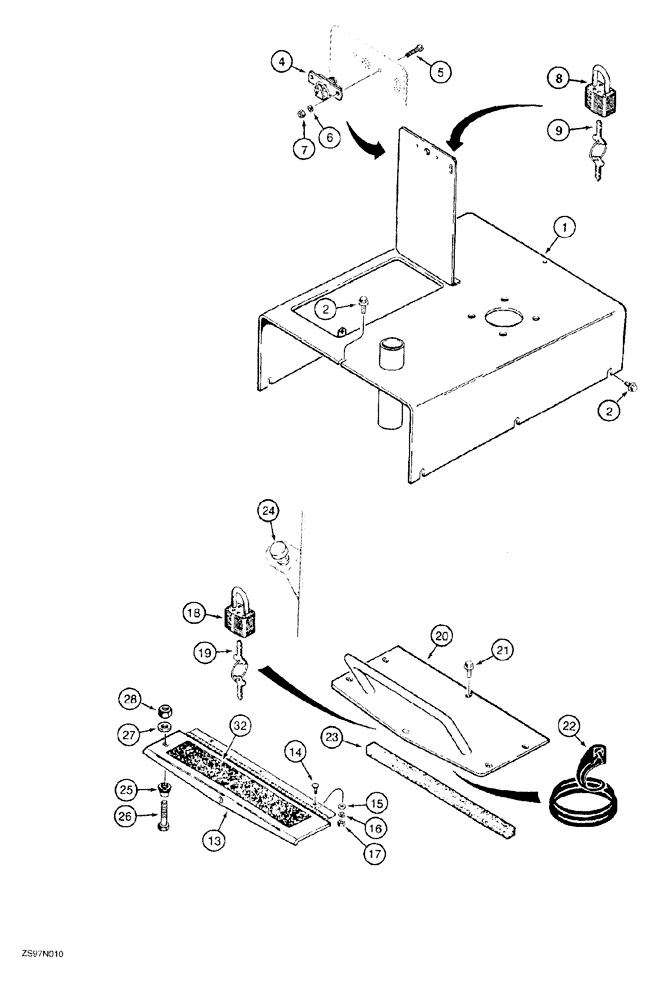

Запчасти Case 550G (9-16) - HOOD AND INSTRUMENT PANEL COVER (05) - UPPERSTRUCTURE CHASSIS

1

277047A1

HOOD ASSY.

engine, Replaces: R46906

1шт.

2

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

7шт.

4

L102515

LATCH

access door, Replaces: L51672

1шт.

5

70-1108

SCREW,Pan HD, #10 - 24 x 1/2"

machine, pan head slotted, No. 10 NC x 1/2"

2шт.

6

492-11010

LOCK WASHER,#10

If Used

2шт.

7

F45165

SPECIAL NUT,#10-24

hex, self-locking, special, No. 10 NC, Replaces: 225-14110

2шт.

8

D93753

PADLOCK

includes keys, Includes: Ref. 9

1шт.

9

R29555

KEY

for Master padlock only

2шт.

9

D93751

SET OF 2 KEYS

for Yale padlock only

2шт.

13

R58731

COVER

instrument panel

1шт.

14

A42923

CARRIAGE BOLT

carriage, special, 5/16" NC x 27/32"

3шт.

15

495-11034

WASHER,5/16", SAE

(flat, 11/32" x 11/16" x 1/16")

3шт.

16

492-11031

LOCK WASHER,5/16"

3шт.

17

425-105

NUT,5/16"-18, G5

3шт.

18

D93753

PADLOCK

includes keys, Includes: Ref. 19

1шт.

19

R29555

KEY

for Master padlock only

2шт.

19

D93751

SET OF 2 KEYS

for Yale padlock only

2шт.

26

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

20

R58736

COVER

PLATE hood extension, with grab handle

1шт.

21

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

hex flange, 3/8" NC x 3/4", grade 8

5шт.

22

R58738

RUBBER

TRIM edge, hood extension plate, 590 mm (23-1/4") long

1шт.

23

R40035

PAD

546 mm (21-1/2") x 25 mm (1") x 25 mm (1"), cut from R30870 bulk pad shown below

1шт.

24

R38089

CUSHION ASSY.

BUMPER rubber, instrument panel cover

1шт.

25

R58735

HOLDER

RETAINER open, instrument panel cover, includes socket and plunger

1шт.

27

492-11025

LOCK WASHER,1/4"

1шт.

28

425-104

NUT,1/4"-20, Cl 5

1шт.

32

H332536

PAD

STRIP anti-skid, on backside of instrument panel cover

1шт.

R30870

PAD

bulk, 1372 mm (54") x 1829 mm (72") x 25 mm (1") thick, see Ref. 23

1шт.

345-44

ADHESIVE

spray can, 3M No. 74, 23 ounce, obtain locally

1шт.
