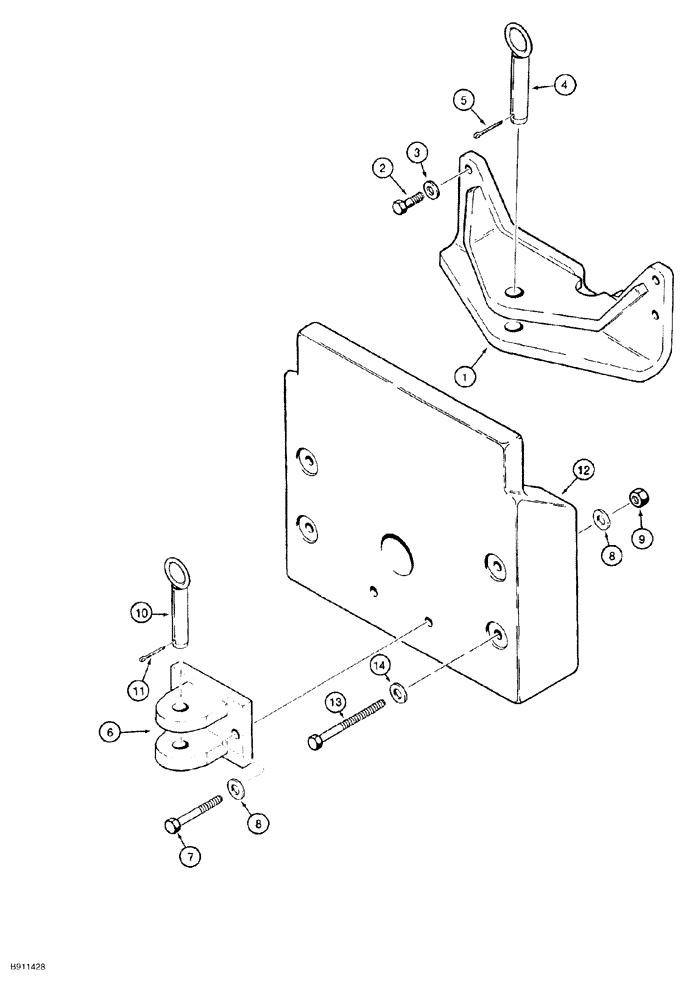

Запчасти Case 550G (9-08) - DRAWBARS AND COUNTERWEIGHT (05) - UPPERSTRUCTURE CHASSIS

1

R47224

DRAWBAR

used on models with no rear equipment

1шт.

2

326-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

4шт.

3

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, hardened, special, 3/4"

4шт.

4

R24105

DRAWBAR

PIN

1шт.

5

32-1632

COTTER PIN,1/4" x 2"

1шт.

6

R39904

DRAWBAR

used on models with no rear equipment and counterweight, 53" gauge long track models

1шт.

7

326-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

53" gauge long track models with no rear equipment

2шт.

8

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

flat, hardened, special, 53" gauge long track models with no rear equipment

4шт.

9

425-1012

NUT,3/4"-10, G5

53" gauge long track models with no rear equipment

2шт.

10

R24105

DRAWBAR

PIN, 53" gauge long track models with no rear equipment

1шт.

11

32-1632

COTTER PIN,1/4" x 2"

53" gauge long track models with no rear equipment

1шт.

12

R57072

BALANCER

COUNTERWEIGHT rear, 227 kg (500 pound), 53" gauge long track models with no rear equipment

1шт.

13

413-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

hex, 3/4" NC x 7-1/2", 53" gauge long track models with no rear equipment

4шт.

14

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

flat, hardened, special, 53" gauge long track models with no rear equipment

4шт.
