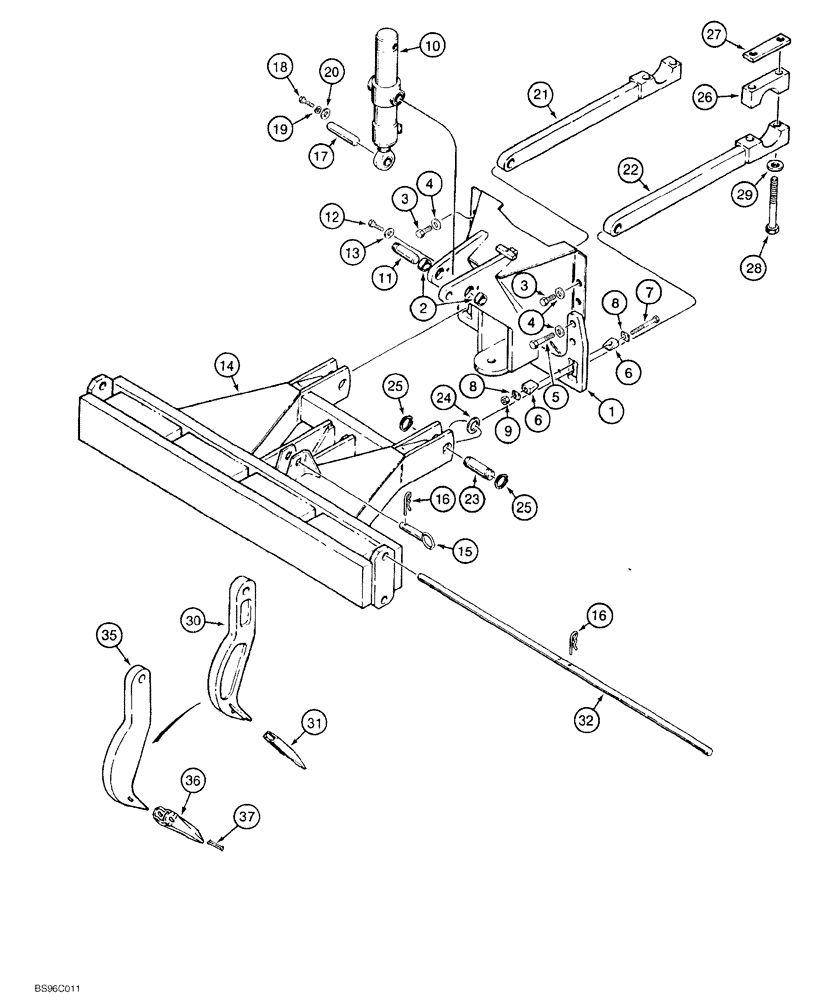

Запчасти Case 550G (9-06) - RIPPER (05) - UPPERSTRUCTURE CHASSIS

1

R54403

LARGE PLATE

PLATE, LARGE SUPPORT ASSY. ripper mounting, Includes: Ref. 2

1шт.

2

D32890

BUSHING

cylinder mounting

2шт.

3

326-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 8

4шт.

4

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, hardened, special, 3/4"

8шт.

5

326-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

4шт.

6

D34678

BLOCK

wedge

4шт.

7

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

2шт.

8

D34705

WASHER

special, 1/2"

4шт.

9

231-4118

LOCK NUT,1/2"-13, GB

hex, 1/2" NC

2шт.

10

G101230

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 266.7mm Stroke

ASSY. ripper, 76 mm (3") ID x 267 mm (10-1/2") stroke, see Figure 8-26

1шт.

11

D34706

PIN,31.75mm OD x 60.33mm L

ripper cylinder to ripper support

2шт.

12

413-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5

hex, 5/8" NC x 1"

2шт.

13

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

flat, special

2шт.

14

D35886

FRAME

ripper

1шт.

15

D34715

PIN

self-locking, ripper frame to ripper support

1шт.

16

136-162

HAIR PIN COTTER,Int, 1/2" x .250"

PIN cotter, hair, internal type, 1/2" x 3-1/4"

3шт.

17

D36174

AXLE PIN,31.75mm OD x 123.83mm L

ripper cylinder to ripper frame

1шт.

18

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

hex, 1/2" NC x 3/4"

2шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

20

D25022

WASHER

flat, special, 17/32" x 1-3/4" x 3/16"

2шт.

21

R47375

ARM

ripper frame mounting, left-hand

1шт.

22

R47376

ARM

ripper frame mounting, right-hand

1шт.

23

D36614

PIN,38.1mm OD x 107.95mm L

ripper frame to mounting arms

2шт.

24

R15389

SPACER

pin

2шт.

25

103-16125

SNAP RING,#125, Ext

Pin

4шт.

26

D34663

CLAMP

ripper frame to pivot shaft

4шт.

27

D34722

BLOCK

tapped

2шт.

28

413-14120

BOLT,Hex, 7/8" - 9 x 7-1/2", Gr 5

hex, 7/8" NC x 7-1/2", use with B17577 blue Loctite No. 242 shown below

4шт.

29

D34667

WASHER,23.02mm ID x 38.1mm OD x 3.57mm Thk

special

4шт.

B17577

LOCTITE

blue, No. 242, 6 ml tube, see Ref. 28

1шт.

30

D35885

SHANK

tooth, ripper, no longer available, order 221535A1, R54258, and D39448 or 258718A1, 258719A1 and D39448 shown below

3шт.

31

R33815

POINT

TOOTH ripper, no longer used, order 221535A1, R54258, and D39448 or 258718A1, 258719A1 and D39448 shown below

3шт.

32

D35900

ROD

attaching, ripper shank

3шт.

34

D55218

SEAL, GLASS,76mm L

TRIM edge, hose protector, at ripper support, 76 mm (3") long, cut from F42827 bulk trim shown below, Replaces: D43403

1шт.

221536A1

SHANK

ASSY. tooth, ripper, no longer available, order components and 8-80065 instruction sheet, if used, optional with 258717A1 shown below, Includes: Ref. 35 - 37

3шт.

35

221535A1

SHANK

tooth

1шт.

36

R54258

POINT

tooth

1шт.

37

D39448

PIN

flex, Replaces: 258720A1

1шт.

258717A1

SHANK ASSY. tooth, ripper, no longer available, order components and 8-80065 instruction sheet, if used, optional with 221536A1 shown above, Includes: Ref. 35A - 37A

3шт.

35a

258718A1

SHANK

ripper

1шт.

36a

258719A1

TOOTH

ripper

1шт.

37a

D39448

PIN

flex, Replaces: 258720A1

1шт.

F42827

TRIM,2946.4mm L

bulk, 2946 mm (116") long, see Ref. 34

1шт.
