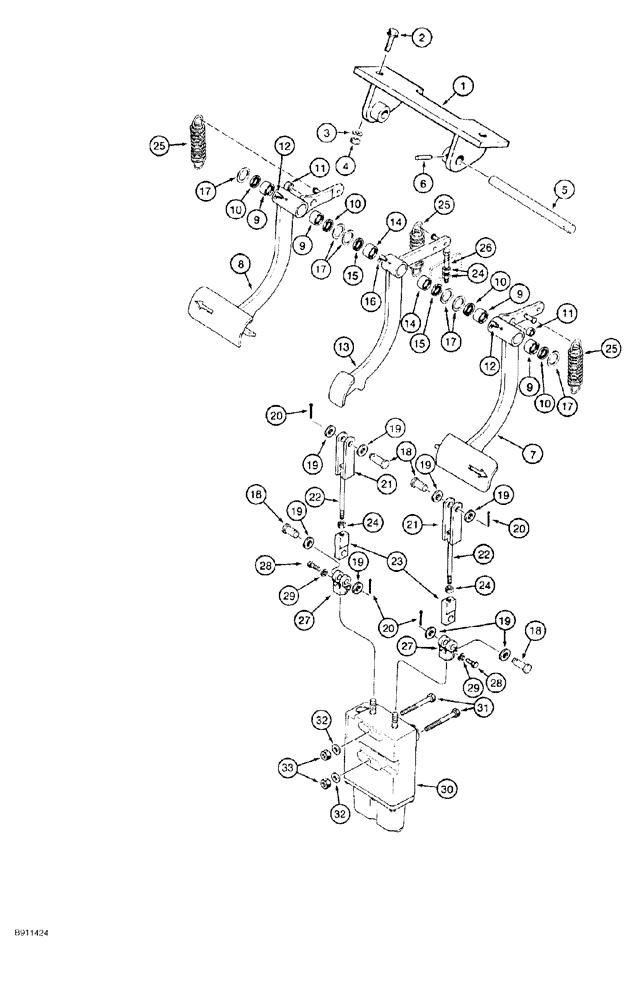

Запчасти Case 550G (7-02) - BRAKE PEDALS AND LINKAGE (05) - UPPERSTRUCTURE CHASSIS
№
Артикул
Название
Примечание
Количество
1
R58458
BRACKET
mounting, brake pedals
1шт.
2
409-7820
BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl
2шт.
3
80679
LOCK WASHER,1/20.507 CST ZND
2шт.
4
425-108
NUT,1/2" - 13, Gr 5
2шт.
5
R58225
SHAFT
mounting
1шт.
6
38-11622
LOCK PIN,1/4" x 1 3/8", Slotted
1/4" x 1 3/8", Slotted
1шт.
7
R58465
PEDAL
ASSY. brake, right-hand, Includes: Ref. 9 - 12
1шт.
8
R58466
PEDAL
ASSY. brake, left-hand, Includes: Ref. 9 - 12
1шт.
9
L31166
NEEDLE BEARING
roller, pedal
2шт.
10
65457C1
SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk
oil, bearing
2шт.
11
L13071
BUSHING
pedal linkage
1шт.
12
219-57
LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF
FITTING grease, 90 degree, 1/4"-28 taper x 3/4"
1шт.
13
R58628
PEDAL
ASSY. brake, center
1шт.
14
L31166
NEEDLE BEARING
roller, pedal
2шт.
15
65457C1
SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk
oil, bearing
2шт.
16
219-57
LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF
FITTING grease, 90 degree, 1/4"-28 taper x 3/4"
1шт.
17
D35268
SHIM,1/32" Thk
(25/32" ID x 1-1/4" OD)
1шт.
19
495-11053
WASHER,1/2", SAE
(17/32" x 1-1/16" x 3/32")
8шт.
20
432-816
COTTER PIN,1/8" x 1"
4шт.
21
R58362
FORK
YOKE, Serial Range: clevis,-valve
2шт.
22
17-696
BOLT,Sq Hd, 3/8" - 16 x 6", Gr 2
BOLT square head, yoke to valve, 3/8" NC x 6", grade 2
2шт.
23
R58461
LINK
adjustable, brake pedal bolt
2шт.
24
425-146
JAM NUT,3/8" - 16, Gr 5
4шт.
25
R36912
SPRING
return
3шт.
26
113-232
BOLT,Hex, 3/8" - 16 x 2", Gr 5, Full Thd
Pedal adjustment
1шт.
27
384083R2
YOKE
YOKE
2шт.
28
413-518
BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5
BOLT hex, 5/16" NC x 1-1/8"
2шт.
30
1272218C1
VALVE
ASSY. brake, see Figure 7-08
1шт.
31
413-660
BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5
hex, 3/8" NC x 3-3/4"
2шт.
32
496-41041
WASHER,13/32" x 1 1/8" x .134"
Hardened
2шт.
33
231-1406
LOCK NUT,3/8"-16, GB
2шт.
Выбрано товаров: 33
