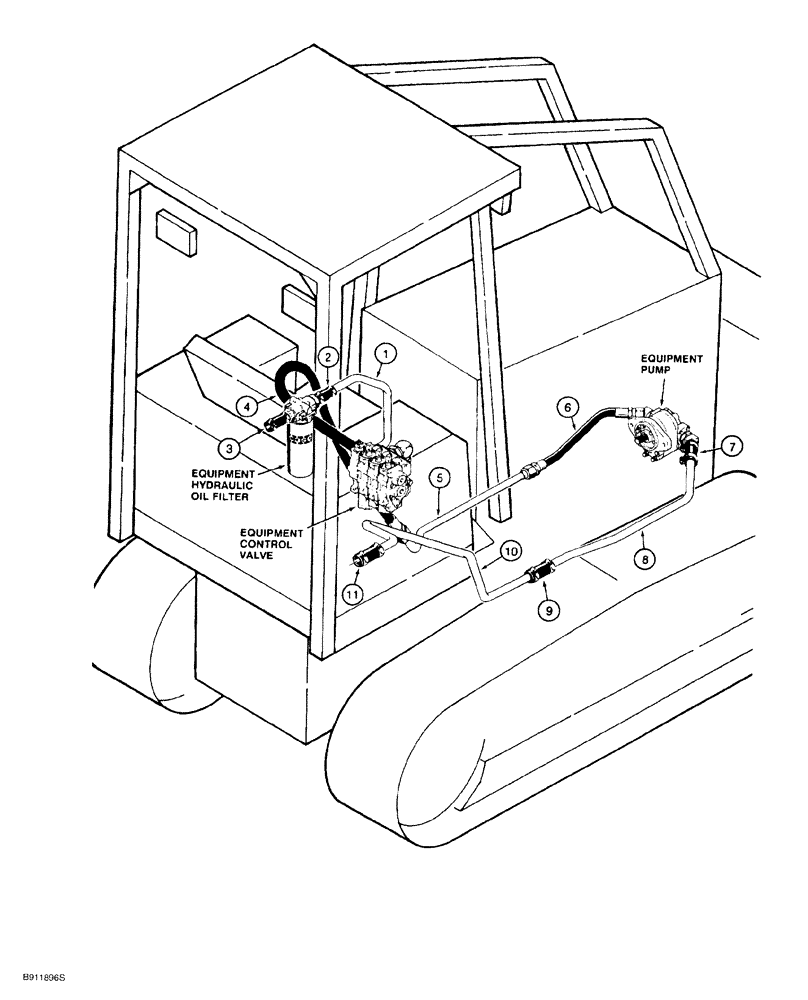

Запчасти Case 550G (1-12) - PICTORIAL INDEX, EQUIPMENT HYDRAULIC CIRCUIT (00) - PICTORIAL INDEX

1

Return tube from control valve to filter, Page 8-7

1шт.

2

Return hose to filter from control valve, Page 8-7

1шт.

3

Return hose from filter to reservoir, Page 8-7

1шт.

4

Supply hose at control valve from pump, Page 8-5

1шт.

5

Supply tube to control valve from pump, Page 8-5

1шт.

6

Supply hose at pump to control valve, Page 8-5

1шт.

7

Supply hose at pump, Page 8-5

1шт.

8

Intermediate supply tube to pump, Page 8-5

1шт.

9

Intermediate supply hose from reservoir to pump, Page 8-5

1шт.

10

Supply tube at reservoir, Page 8-5

1шт.

11

Supply hose at reservoir, Page 8-5

1шт.
