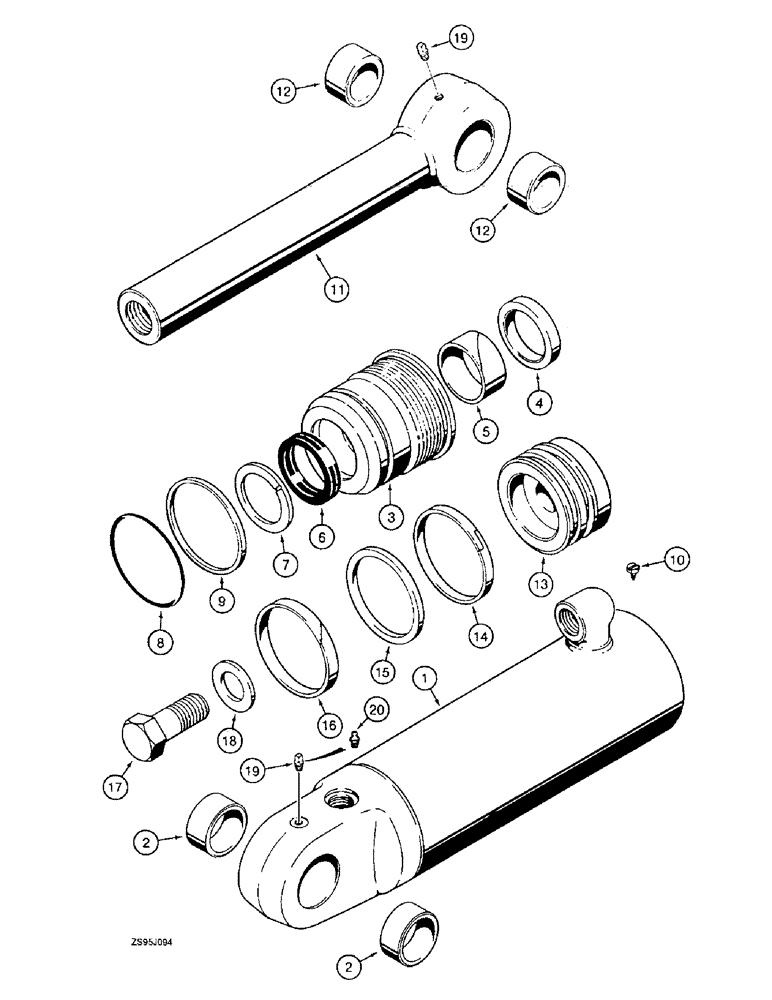

Запчасти Case 550E (8-22) - DOZER TILT CYLINDER (08) - HYDRAULICS

1542717C1

CYLINDER

ASSEMBLY - 3 (76 mm) ID x 8 inch (203 mm) stroke

1шт.

1

1542718C1

TUBE

ASSEMBLY - cylinder

1шт.

2

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- 1-1/2 ID x 1-7/8 OD x 11/16 inch long, tube

2шт.

3

1346417C1

GLAND

- cylinder

1шт.

4

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod

1шт.

Part of Cylinder Seal Repair Kit P/N 1543256C1

1шт.

5

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

- Center, Gland

1шт.

Part of Cylinder Seal Repair Kit P/N 1543256C1

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - U-cup, piston rod, wide, with O-ring, for service order 1543256C1seal kit

1шт.

Part of Cylinder Seal Repair Kit P/N 1543256C1

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - piston rod, narrow, for service order 1543256C1 seal kit

1шт.

Part of Cylinder Seal Repair Kit P/N 1543256C1

1шт.

8

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.

Part of Cylinder Seal Repair Kit P/N 1543256C1

1шт.

9

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

- backup, gland O-ring

1шт.

Part of Cylinder Seal Repair Kit P/N 1543256C1

1шт.

10

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 ", slotted

1шт.

11

1542720C1

ROD

ASSEMBLY - piston, 1-1/2 inch (38 mm) diameter

1шт.

12

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- 1-1/2 ID x 1-7/8 OD x 11/16 inch long, piston rod

2шт.

13

G108518

PISTON

- cylinder

1шт.

14

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

Part of Cylinder Seal Repair Kit P/N 1543256C1

1шт.

15

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING - backup, piston seal

1шт.

Part of Cylinder Seal Repair Kit P/N 1543256C1

1шт.

16

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear

1шт.

Part of Cylinder Seal Repair Kit P/N 1543256C1

1шт.

17

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

- hex, 3/4 NF x 2-1/2 inch, grade 8

1шт.

18

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, hardened, special

1шт.

19

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket, 1/8 inch PT

2шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch, base end of cylinder, if used

1шт.

1543256C1

SEAL KIT,38.1mm Rod, 76.2mm Bore

KIT, SEALS, Cylinder repair, Incl Ref 4-9 and 14-16 and an instruction sheet

1шт.
