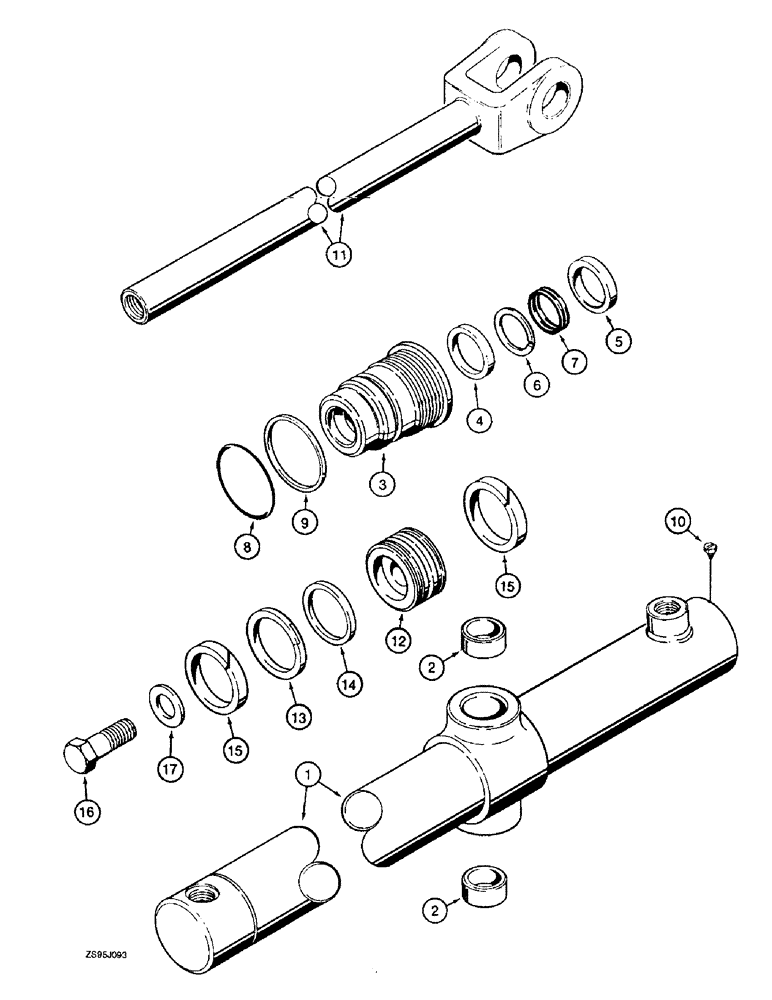

Запчасти Case 550E (8-20) - DOZER LIFT CYLINDER (08) - HYDRAULICS

1542565C1

CYLINDER

ASSEMBLY - 2-1/2 (64 mm) ID x 28 inch (711 mm) stroke, dozer lift

2шт.

1

1542753C1

TUBE,889 mm Length

ASSEMBLY - cylinder

1шт.

2

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- tube

2шт.

3

1542751C2

GLAND

- cylinder

1шт.

4

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

- Center, Gland

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod

1шт.

Part of KIT, part number 1542764C2

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - piston rod, narrow, for service order 1542764C2 seal kit

1шт.

Part of KIT, part number 1542764C2

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - U-cup, piston rod, wide, with O-ring, for service order 1542764C2 seal kit

1шт.

Part of KIT, part number 1542764C2

1шт.

8

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

Part of KIT, part number 1542764C2

1шт.

9

G109297

BACK-UP RING,56.9mm ID x 63.5mm OD x 1.4mm Thk

1шт.

10

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 ", slotted

1шт.

11

1542566C1

ROD

- piston, 1-1/2 inch (38 mm) diameter

1шт.

12

G100706

PISTON

- cylinder

1шт.

13

G102289

SEAL,59.92mm ID x 64.64mm OD x 6.96mm Thk

- piston

1шт.

Part of KIT, part number 1542764C2

1шт.

14

G100713

SEALING RING,Square, 5.28mm Thk x 49.91mm ID

RING - backup, piston seal, piston seal

1шт.

Part of KIT, part number 1542764C2

1шт.

15

G100714

RING

- wear

2шт.

Part of KIT, part number 1542764C2

1шт.

16

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

- hex, 3/4 NF x 2-1/2 inch, grade 8

1шт.

17

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, hardened, special, special

1шт.

1542764C2

SEAL KIT

KIT - seal, Includes: Refs. 5, 6, 7, 8, 13, 14, and 15

1шт.
