Запчасти Case 550E (8-18) - TRACK TENSIONER HYDRAULIC CIRCUIT, FOR UNITS WITH RUBBER TRACKS ONLY (08) - HYDRAULICS

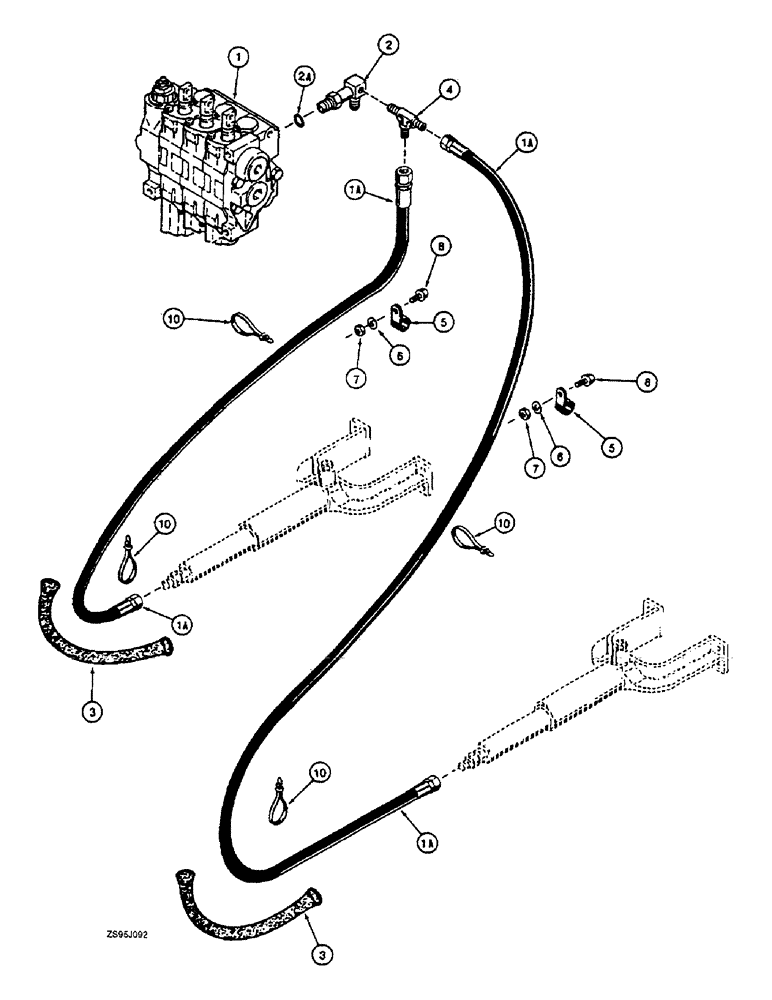

Схема запчастей Case 550E - (8-18) - TRACK TENSIONER HYDRAULIC CIRCUIT, FOR UNITS WITH RUBBER TRACKS ONLY (08) - HYDRAULICS
10
10
10
6
8
7
2
4
5
1
3
2a
1a
6
5
1a
3
8
7
1a
1a
10

Артикул

Название

Примечание

Количество

1

R58221

VALVE

ASSEMBLY - equipment control, four spool, parts list figure 8-36

1шт.

1a

125093A1

HYDRAULIC HOSE

HOSE - 122 inch (3099 mm) long, equipment valve to track adjuster

2шт.

2

123816A1

ELBOW

- 90 degree adj, special with check port

1шт.

2a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

3

125104A1

SHIELD

GUARD - hose

2шт.

4

218-612

TEE,1/2"-20, 37 Degree x 1/8"-27, NPTF Run

- 1/2-20 flare branch x flare x 1/8 inch PT

1шт.

5

84183C1

CLAMP

-P type

2шт.

6

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

2шт.

7

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

8

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

9

125266A1

LINK

- clamp, not shown

2шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

8шт.

Выбрано товаров: 12
