Запчасти Case 550E (8-16) - RIPPER HYDRAULIC CIRCUIT (08) - HYDRAULICS

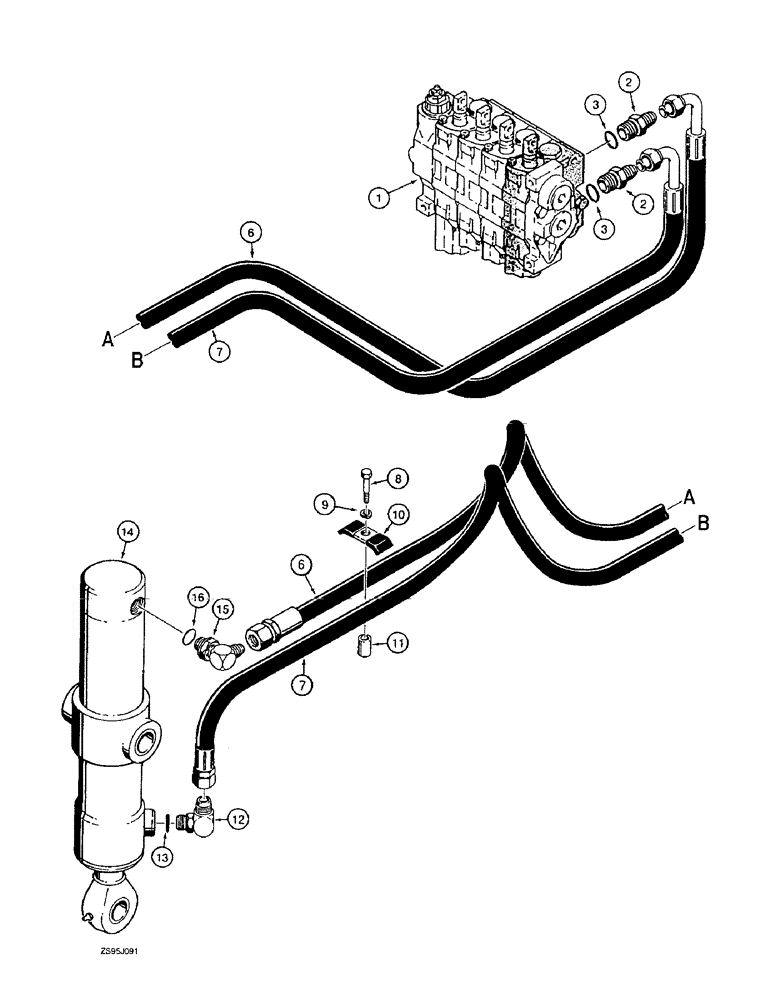

Схема запчастей Case 550E - (8-16) - RIPPER HYDRAULIC CIRCUIT (08) - HYDRAULICS
6
8
8
a
15
14
7
1
11
12
3
10
13
2
b
6
a
3
7
2
16
b

Артикул

Название

Примечание

Количество

1

R58221

VALVE

ASSEMBLY - equipment control, parts list figure 8-36

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

6

R47442

HOSE

- 60 inch (1524 mm) long, auxiliary section upper port to closed end of cylinder

1шт.

7

R50321

HOSE ASSY.

HOSE - 54 inch (1372 mm) long, , auxiliary section lower port to rod end of cylinder

1шт.

8

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

9

492-11038

LOCK WASHER,3/8"

1шт.

10

R25782

CLAMP

- hose

1шт.

11

A19177

SPACER

- clamp

1шт.

12

R20839

FITTING

ELBOW - 90 degree, adjustable, restricted

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

14

REF

INSTRUCTION

CYLINDER ASSEMBLY - 3 (76) ID x 10-1/2 inch (267 mm) stroke, parts list figure 8-26

1шт.

15

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

Выбрано товаров: 14
