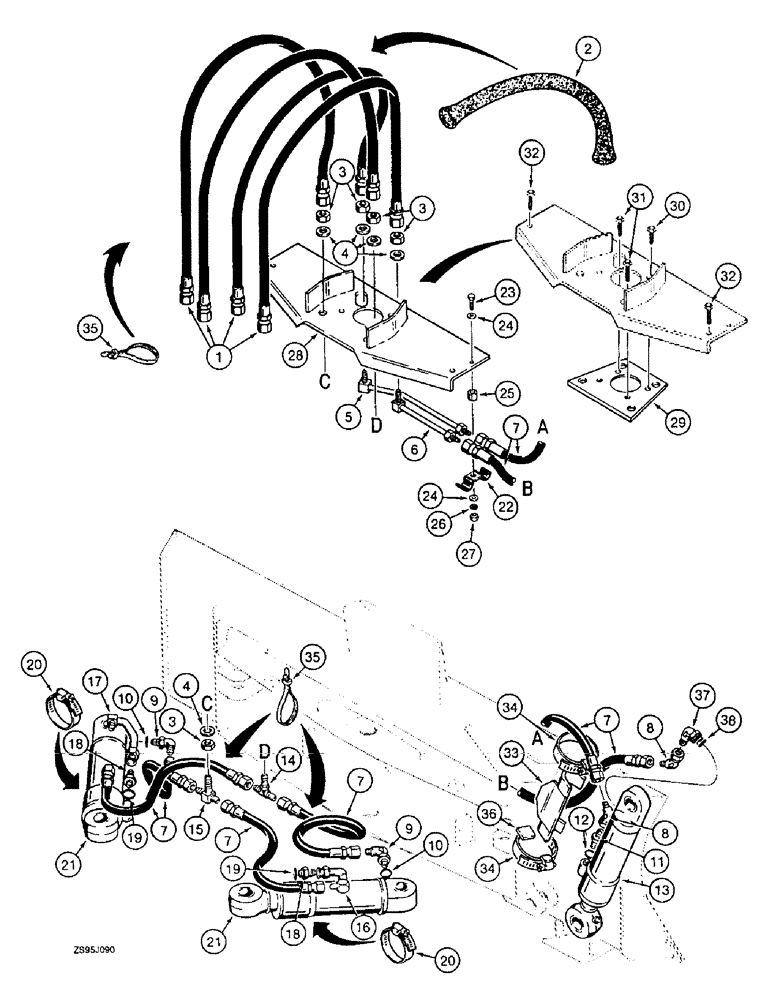

Запчасти Case 550E (8-14) - DOZER TILT AND ANGLE HYDRAULIC CIRCUITS, ON BACK OF BLADE (08) - HYDRAULICS

1

R40023

HOSE,9.53mm ID x 1270mm L, SAE 100R2

- 50 inch (1270 mm) long

4шт.

2

103237A1

HOSE

WRAP - nylon, hose retaining

1шт.

3

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

5шт.

4

D35268

SHIM,1/32" Thk

(25/32" ID x 1-1/4" OD) 1/32" Thk

5шт.

5

R41286

PIPE,0.5" OD x 15.4, 3.5" L

TUBE - tilt circuit, to rod end of tilt cylinder

1шт.

6

R41288

PIPE,0.5" OD x 9.4" L

TUBE - tilt circuit, to closed end of tilt cylinder

1шт.

7

R57608

HOSE ASSY.

HOSE - 21 inch (534 mm) long

6шт.

8

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

- 45 degree, 3/4-16 inch flare x swivel, tilt cylinder

2шт.

9

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 3/4-16 flare x 7/8-14 inch adj O-ring boss

2шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

11

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, O-ring boss, rod end of tilt cylinder

1шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

13

REF

INSTRUCTION

CYLINDER ASSEMBLY - 3 (76) ID x 8 inch (203 mm) stroke, parts list figure 8-22

1шт.

14

218-805

TEE,3/4"-16, 37 Degree, Blkhd

- 3/4-16 inch bulkhead flare branch x flare, right-hand, angle circuit

1шт.

15

R28969

FITTING

TEE - bulkhead, special, left-hand, angle circuit

1шт.

16

R52691

TUBE,0.5" OD

- to rod end of right-hand angle cylinder

1шт.

17

R52689

TUBE,0.5" OD

- to rod end of left-hand angle cylinder

1шт.

18

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, rod end of angle cylinder 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

20

214-1476

HOSE CLAMP,#76, 4.31" - 5.25", Type F Worm

CLAMP, HOSE, , Adj. #76, 4.31/5.25 Type F Worm, W/liner

2шт.

21

REF

INSTRUCTION

CYLINDER ASSEMBLY - 4 (102) ID x 8-5/16 inch (211 mm) stroke, parts list figure 8-24

2шт.

22

R15257

CLAMP

- tilt circuit hoses

1шт.

23

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

24

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

25

D38524

SPACER

- tilt circuit hoses

1шт.

26

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

27

425-105

NUT,5/16"-18, G5

1шт.

28

R57819

GUARD

- and tubes

1шт.

29

R54466

LARGE PLATE

PLATE - bulkhead support, and tube mounting

1шт.

30

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

Guard to plate Hex Flg, 1/2"-13 x 1", G8, Full Thd

4шт.

31

160-108

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

- hex flange, 1/2 NC x 1-1/2 inch, grade 8, plate to leveling beam

2шт.

32

121-433

FLANGE BOLT,Hex, 1/2" - 13 x 2", Gr 8

BOLT - hex flange, 1/2 NC x 2 inch, grade 8, guard to leveling beam

2шт.

33

R41284

GUARD

- tilt cylinder

1шт.

34

214-3180

HOSE CLAMP,4-1/4" - 5-1/8", HD Worm

CLAMP - adj, 4-1/4 - 5-1/8 inch dia, tilt cylinder guard

2шт.

35

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

4шт.

36

D42402

GAUGE

- leveling, weld to tilt cylinder guard, align with leveling beam

1шт.

37

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss, adj O-ring boss, closed end of tilt cylinder

1шт.

38

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
