Запчасти Case 550E (8-12) - DOZER TILT AND ANGLE HYDRAULIC CIRCUITS, CONTROL VALVE TO GRILLE (08) - HYDRAULICS

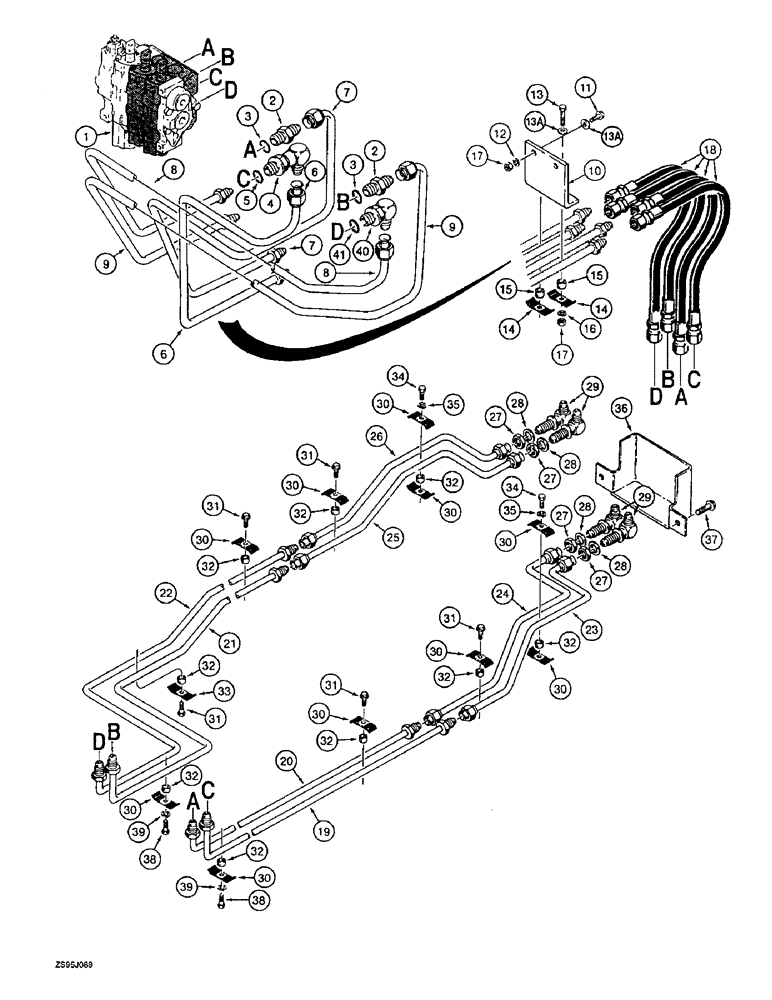

Схема запчастей Case 550E - (8-12) - DOZER TILT AND ANGLE HYDRAULIC CIRCUITS, CONTROL VALVE TO GRILLE (08) - HYDRAULICS
c
b
29
22
13
7
34
24
7
13a
32
32
9
32
a
3
38
b
3
4
37
30
d
b
a
10
29
32
28
c
21
30
d
b
28
32
d
40
30
18
30
39
30
6
31
15
28
5
11
2
36
13a
41
30
8
27
17
26
32
15
39
34
28
31
31
a
25
35
32
35
27
20
14
2
32
38
33
14
1
19
31
12
6
30
16
30
30
31
27
d
c
9
17
30
23
8
27
32
a
c

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE ASSEMBLY - equipment control, for correct assembly and components see figure 8-34 or 8-36

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

D36934

FITTING

ELBOW - 90 degree, special

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

6

R58755

TUBE,12.7 mm OD

- at control valve, tilt section lower port

1шт.

7

R58753

TUBE,12.7 mm OD

- at control valve, tilt section upper port

1шт.

8

R58759

TUBE,12.7 mm OD

- at control valve, angle section lower port

1шт.

9

R58757

TUBE,12.7 mm OD

- at control valve, angle section upper port

1шт.

10

R58842

BRACKET

- tube support

1шт.

11

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

2шт.

12

492-11038

LOCK WASHER,3/8"

2шт.

13

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

13a

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

14

R25528

CLAMP

- tubes

2шт.

15

D76208

SPACER

- clamp

2шт.

16

492-11038

LOCK WASHER,3/8"

2шт.

17

425-106

NUT,3/8"-16, Cl 5

4шт.

18

5120027

- 22 inch (559 mm) long

4шт.

19

R39990

TUBE,0.5" OD

- intermediate, tilt section lower port

1шт.

20

R39988

TUBE,0.5" OD

- intermediate, tilt section upper port

1шт.

21

R40810

TUBE,0.5" OD

- intermediate, angle section upper port

1шт.

22

R40812

TUBE,0.5" OD

- intermediate, angle section lower port

1шт.

23

R39980

TUBE,0.5" OD

- to grille, tilt section lower port

1шт.

24

R39982

TUBE,0.5" OD

- to grille, tilt section upper port

1шт.

25

R39986

TUBE,0.5" OD

- to grille, angle section upper port

1шт.

26

R39984

TUBE,0.5" OD

- to grille, angle section lower port

1шт.

27

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

4шт.

28

D35268

SHIM,1/32" Thk

(25/32" ID x 1-1/4" OD) 1/32" Thk

4шт.

29

R29758

FITTING

ELBOW - 90 degree, special, bulkhead

4шт.

30

R25528

CLAMP

- tubes

10шт.

31

160-103

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

5шт.

32

D76208

SPACER

- clamp

9шт.

33

R25528

CLAMP

- angle tubes

1шт.

34

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

35

492-11038

LOCK WASHER,3/8"

2шт.

36

R34008

GUARD

- bulkhead elbows, at grille

1шт.

37

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

2шт.

38

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

39

492-11038

LOCK WASHER,3/8"

2шт.

40

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 3/4-16 flare x 7/8-14 inch adj O-ring boss, adj O-ring, angle section lower port

1шт.

41

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

Выбрано товаров: 42
