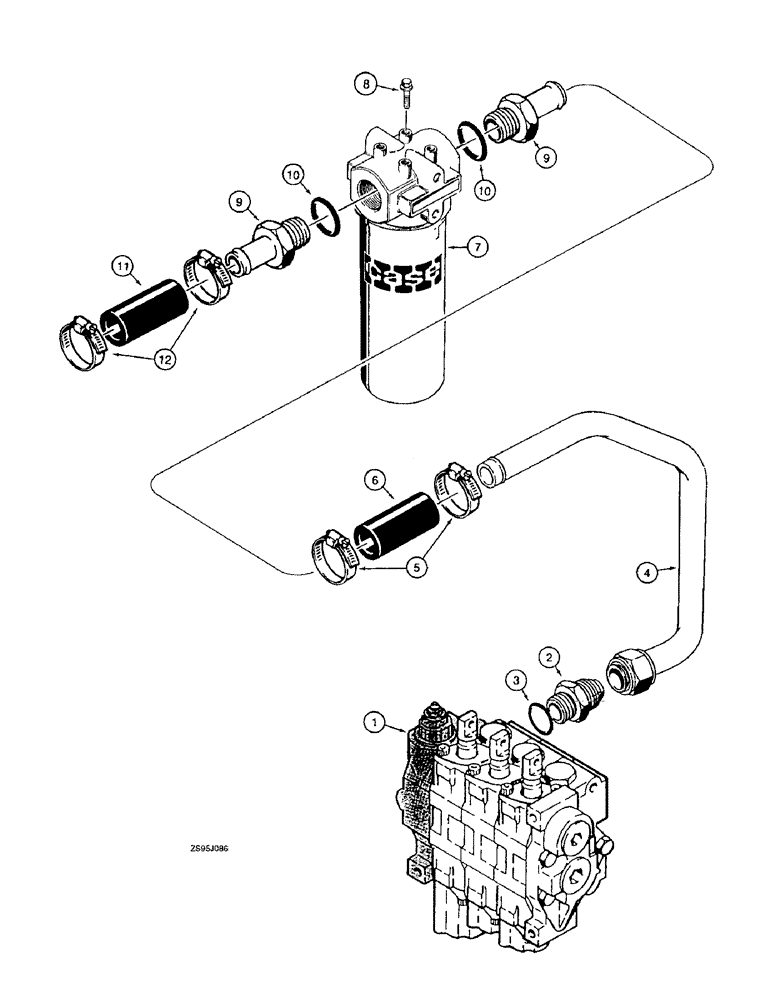

Запчасти Case 550E (8-06) - EQUIPMENT HYDRAULIC CIRCUIT, CONTROL VALVE TO HYDRAULIC RESERVOIR (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - equipment control, for correct assembly and components see figure 8-34 or 8-36

1шт.

2

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., straight, 1-5/16-12 flare x 1-1/16-12 inch O-ring boss

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

4

R58768

TUBE,25.4 mm OD

- control valve upper outlet port, to filter

1шт.

5

214-3128

HOSE CLAMP,1" - 1-7/8", HD Worm

CLAMP - adj, 1 - 1-7/8 inch dia

2шт.

6

D38435

HOSE,1" ID x 1 1/2" OD 3.5" L

- 3-1/2 inch (89 mm) long, cut from S118383X bulk hose

1шт.

7

R50518

FILTER

ASSEMBLY - oil, see figure 6-44

1шт.

8

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

- hex flange, 3/8 NC x 3/4 inch, grade 8

4шт.

9

217-179

FITTING,1" Hose Barb x 1-5/16" - 12 Male ORB

Adapter 1" Hose X 1 5/16"-12 ORB, Beaded

2шт.

10

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

11

R13912

HOSE,25.40 mm ID x 133.40 mm ID, SAE 100R3

- cut from S118383X bulk hose, to hydraulic reservoir 25.40 mm ID x 133.40 mm ID, SAE 100R3

1шт.

12

214-3128

HOSE CLAMP,1" - 1-7/8", HD Worm

CLAMP - adj, 1 - 1-7/8 inch dia, adjustable

2шт.

S118383X

LARGE HOSE

HOSE - bulk, 1 (25) x 1-1/2 (38) x 192 inch (4877 mm) long

1шт.
