Запчасти Case 550E (8-04) - EQUIPMENT HYDRAULIC CIRCUIT, HYDRAULIC RESERVOIR TO PUMP AND CONTROL VALVE (08) - HYDRAULICS

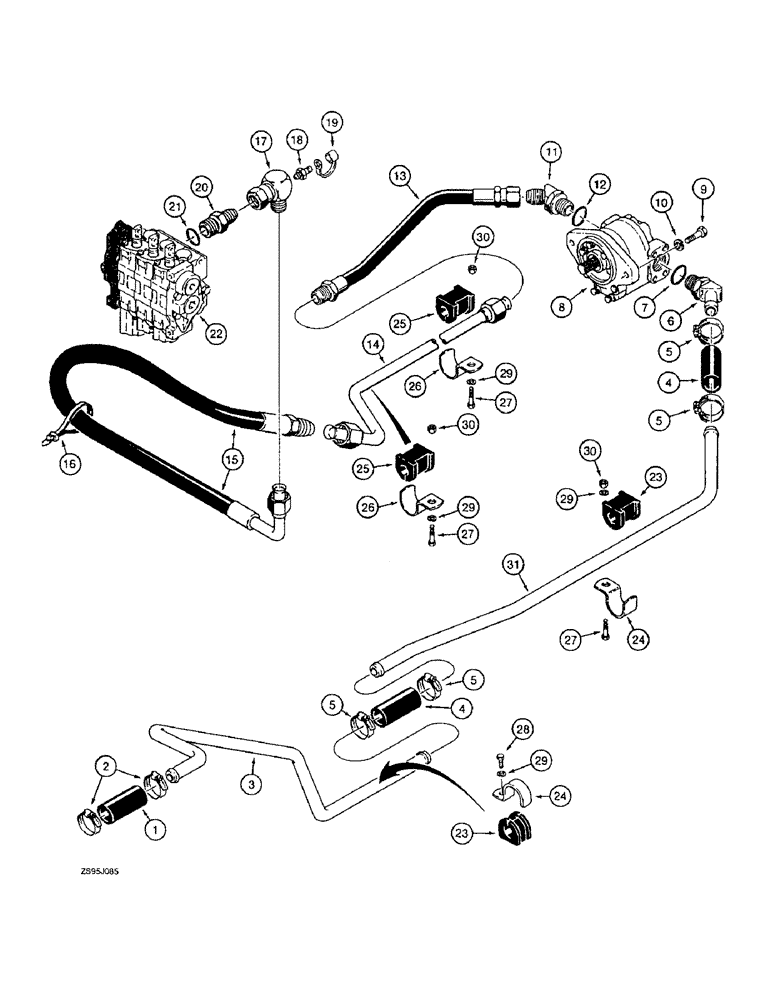

Схема запчастей Case 550E - (8-04) - EQUIPMENT HYDRAULIC CIRCUIT, HYDRAULIC RESERVOIR TO PUMP AND CONTROL VALVE (08) - HYDRAULICS
23
30
7
17
27
26
13
28
6
29
24
25
21
12
5
11
27
4
5
16
20
3
24
25
4
2
30
22
19
30
27
18
26
14
23
8
5
29
29
5
29
15
10
31
9
1

Артикул

Название

Примечание

Количество

1

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- cut from S118465X bulk hose 31.80 mm ID x 101.60 mm ID, SAE 100R3

1шт.

2

214-3228

HOSE CLAMP,1" - 1-7/8", HD Worm, W/ Liner

CLAMP, HOSE, 1.00/1.875 HD Worm, W/liner

2шт.

3

R47059

TUBE,31.75 - 33.35 mm OD

- from hydraulic reservoir

1шт.

4

D36350

HOSE

- 3 inch (76 mm) long, cut from S118465X bulk hose

2шт.

5

214-3132

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

CLAMP - adj, 1-1/4 - 2-1/8 inch dia

4шт.

6

139110A1

ELBOW

- 45 degree,1-5/8-12 inch adj O-ring boss, pump inlet

1шт.

7

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

8

R43429

PUMP

ASSEMBLY - equipment, parts list figure 8-8

1шт.

8

87644730R

REMAN-HYD PUMP

550E CASE LONG TRACK CRAWLER TRACTOR, PUMP ASSEMBLY - equipment, Reman for New PN R43429

1шт.

8

87644730C

CORE-HYDRAULIC PUMP

Return Number

1шт.

9

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

11

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 45 degree, 1-5/16-12 inch flare x adj O-ring boss, pump outlet

1шт.

12

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

13

R50103

HOSE

- 15 inch (381 mm) long, from pump

1шт.

14

R51932

TUBE ASSY.,1" OD

TUBE - intermediate, from pump to control valve

1шт.

15

R58762

HOSE

- 48-1/8 inch (1220 mm) long, supply pressure , to control valve lower inlet port

1шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

17

R47069

ELBOW

- 90 degree, special, swivel

1шт.

18

H434164

COUPLING

COUPLER - quick check

1шт.

19

H434163

DUST CAP

CAP - dust

1шт.

20

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., straight, 1-5/16-12 flare x 1-1/16-12 inch O-ring boss

1шт.

21

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

22

REF

INSTRUCTION

VALVE ASSEMBLY - equipment control, for correct assembly and components see figure 8-32 or 8-34

1шт.

23

D67298

INSULATOR

- rubber, right-hand tubes

2шт.

24

D68845

MOUNTING CLIP

CLAMP - right-hand tubes

2шт.

25

D67297

BLOCK

INSULATOR - rubber, left-hand tubes

2шт.

26

D143410

CLAMP,36.58mm ID, 10.31mm Bolt Hole, J Type

- left-hand tubes

2шт.

27

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

3шт.

28

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

1шт.

29

492-11038

LOCK WASHER,3/8"

4шт.

30

425-106

NUT,3/8"-16, Cl 5

3шт.

31

R47058

TUBE,31.75 - 33.35 mm OD

- to pump

1шт.

S118465X

LARGE HOSE

HOSE - bulk, 1-1/4 (32) x 1-3/4 (45) x 180 inch (4572 mm) long

1шт.

Выбрано товаров: 34
