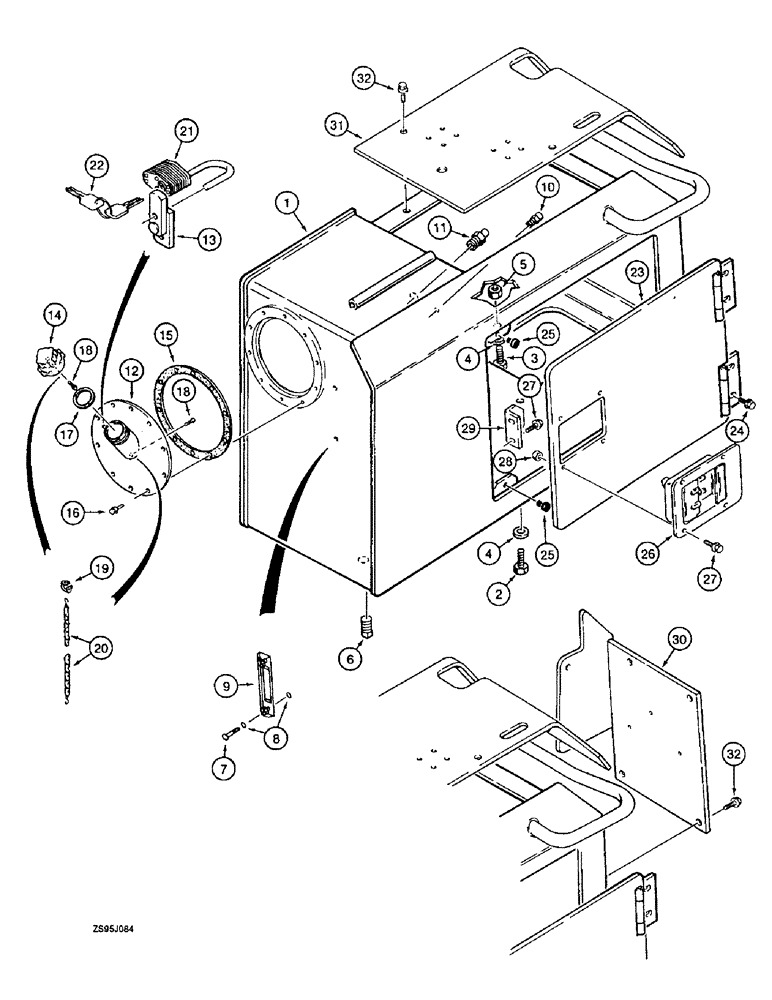

Запчасти Case 550E (8-02) - HYDRAULIC RESERVOIR FRAME AND COVERS (08) - HYDRAULICS

1

R58152

TANK

FRAME - hydraulic reservoir and equipment control valve

1шт.

2

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

3

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

4

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

5шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

6

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

- hex socket, 1/2 inch PT

1шт.

L116247

GAUGE

ASSEMBLY - sight, hydraulic reservoir

1шт.

7

NSS

NOT SOLD SEPARAT

BOLT - sight gauge, special

2шт.

8

238-7112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

4шт.

9

NSS

NOT SOLD SEPARAT

GAUGE - sight, hydraulic reservoir

1шт.

10

R15536

VALVE

- relief, air

1шт.

11

R15538

VALVE

- inlet, air

1шт.

R51319

COVER

ASSEMBLY - rear, with filler tube

1шт.

12

NSS

NOT SOLD SEPARAT

COVER - rear, with filler tube

1шт.

13

R46704

BRACKET

TAB - locking, filler cap, weld-on

1шт.

14

L128669

CAP

- filler

1шт.

15

D50547

GASKET,1.52mm Thk

- rear cover

1шт.

16

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

- hex flange, 3/8 NC x 3/4 inch, grade 8

6шт.

17

R46984

GASKET

- filler cap

1шт.

18

301-14712

SCREW,Drive, #12 x 3/4"

- drive, round head, No. 12 x 3/4 inch

2шт.

19

R48634

FASTENER

HOOK - chain

1шт.

20

R47786

CHAIN (CE)

CHAIN - filler cap

1шт.

21

D93753

PADLOCK

- includes keys

1шт.

22

R29555

KEY

- for Master padlock only

2шт.

22

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

23

R58364

COVER

- right-hand side, hydraulic reservoir frame

1шт.

24

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

- hex flange, 3/8 NC x 3/4 inch, grade 8

2шт.

25

A161780

BUMPER

- rubber, side cover

2шт.

26

R56221

LATCH

- side cover

1шт.

27

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex flange, 1/4 NC x 3/4 inch

6шт.

28

231-5344

FLANGE NUT,Flg, 1/4"-20

NUT, LOCK, Flg, 1/4"-20

4шт.

29

R56397

LARGE PLATE

STRIKER - latch

1шт.

30

R58343

COVER

- front, hydraulic reservoir frame

1шт.

31

R58323

COVER

- top, hydraulic reservoir frame

1шт.

32

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

- hex flange, 3/8 NC x 3/4 inch, grade 8

8шт.
