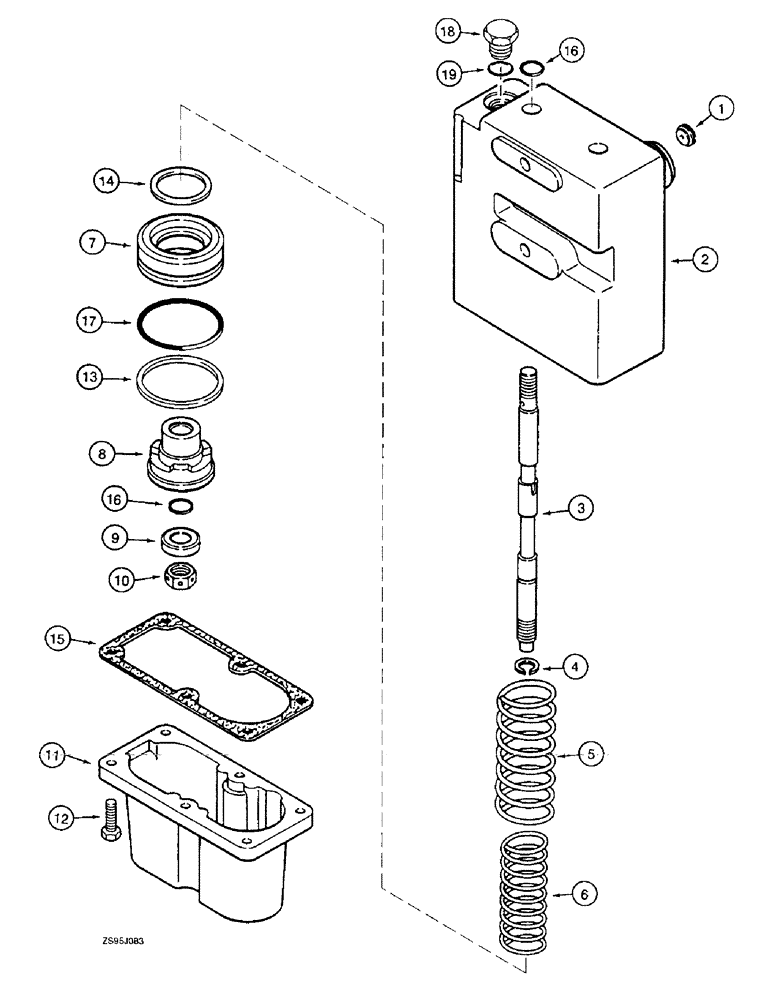

Запчасти Case 550E (7-08) - 1272218C1 BRAKE VALVE (07) - BRAKES

1272218C1

VALVE

ASSEMBLY - brake

1шт.

1

140720C1

PLATE

- orifice

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - valve

2шт.

4

A27020

RING

- retaining

2шт.

5

1263124C1

SPRING

- piston, large, outer

2шт.

6

1263125C1

SPRING

- return, inner

2шт.

7

NSS

NOT SOLD SEPARAT

PISTON - large

2шт.

8

NSS

NOT SOLD SEPARAT

PISTON - small

2шт.

9

69158C1

WASHER,12.78mm ID x 25.4mm OD x 6.35mm Thk

- piston

2шт.

10

9411648

LOCK NUT,1/2"-20, GC

NUT - hex, self-locking, 1/2 inch NF, special

2шт.

11

384495R1

CAP

- body

1шт.

12

113-9

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

- hex, 1/4 NC x 7/8 inch

6шт.

13

NSS

NOT SOLD SEPARAT

RING - backup, piston seal, teflon

2шт.

Part of Seal Kit P/N 71487C92

1шт.

14

NSS

NOT SOLD SEPARAT

WASHER - spring seat

2шт.

Part of Seal Kit P/N 71487C92

1шт.

15

384503R2

GASKET,0.38mm Thk

- body

1шт.

Part of Seal Kit P/N 71487C92

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - spool

4шт.

Part of Seal Kit P/N 71487C92

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - piston

2шт.

Part of Seal Kit P/N 71487C92

1шт.

18

76349

PLUG,9/16" - 18 ORB

1шт.

Part of Seal Kit P/N 71487C92

1шт.

71487C92

GASKET KIT

KIT - seal, Includes: Ref. 13-19

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

Part of Seal Kit P/N 71487C92

1шт.
