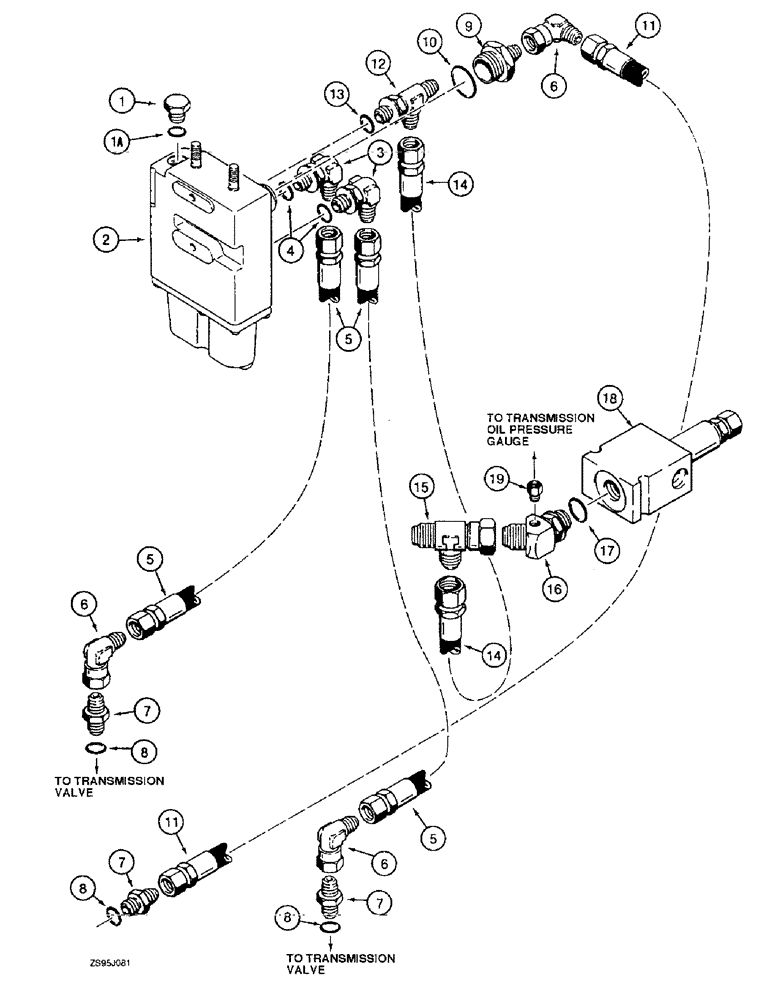

Запчасти Case 550E (7-04) - POWER BRAKE HYDRAULIC LINES, VALVE TO TRANSMISSION (07) - BRAKES

1

76349

PLUG,9/16" - 18 ORB

1шт.

2

1272218C1

VALVE

ASSEMBLY - power brake, parts list figure 7-8, see figure 7-2 for mounting hardware and linkage

1шт.

3

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss

2шт.

5

R58723

HOSE

- 45-7/8 inch (1163 mm) long, valve to transmission without modulator, see figure 6-26 for transmission assembly

2шт.

5a

R56863

HOSE

- 32 inch (813 mm) long, valve to transmission with modulator, see figure 6-28 for transmission assembly

2шт.

6

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, 9/16-18 inch flare x swivel

3шт.

7

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss

3шт.

9

218-5044

HYD CONNECTOR,9/16" - 18 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 9/16-18 flare x 1-1/16-12 inch O-ring boss

1шт.

10

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

11

R58725

HOSE

- 57-1/8 inch (1451 mm) long, valve to transmission without modulator, see figure 6-8 for transmission assembly

1шт.

11a

1541268C1

HOSE

- 50 inch (1270 mm) long, valve to transmission with modulator, see figure 6-8 for transmission assembly

1шт.

12

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 9/16-18 inch flare branch x flare x adj O-ring boss

1шт.

14

R58726

HOSE

- 41 inch (1041 mm) long, brake valve to relief valve

1шт.

15

218-5219

TEE,37 Degree, 7/8"-14 x 3/4"-16, Fem Sw Run x 3/4"-16 Br

- 3/4-16 flare branch x 1-1/16-12 inch flare x swivel, thread

1шт.

16

R57596

FITTING

ELBOW - 45 degree, special, special, see figure 4-12 for transmission oil pressure gauge

1шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

18

R57582

VALVE

ASSEMBLY - relief, see figure 6-38 for related parts

1шт.

19

221-87

REDUCER,1/2" NPT x 1/8" NPT

- pipe 1/2 male x 1/8 inch female

1шт.

1a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
