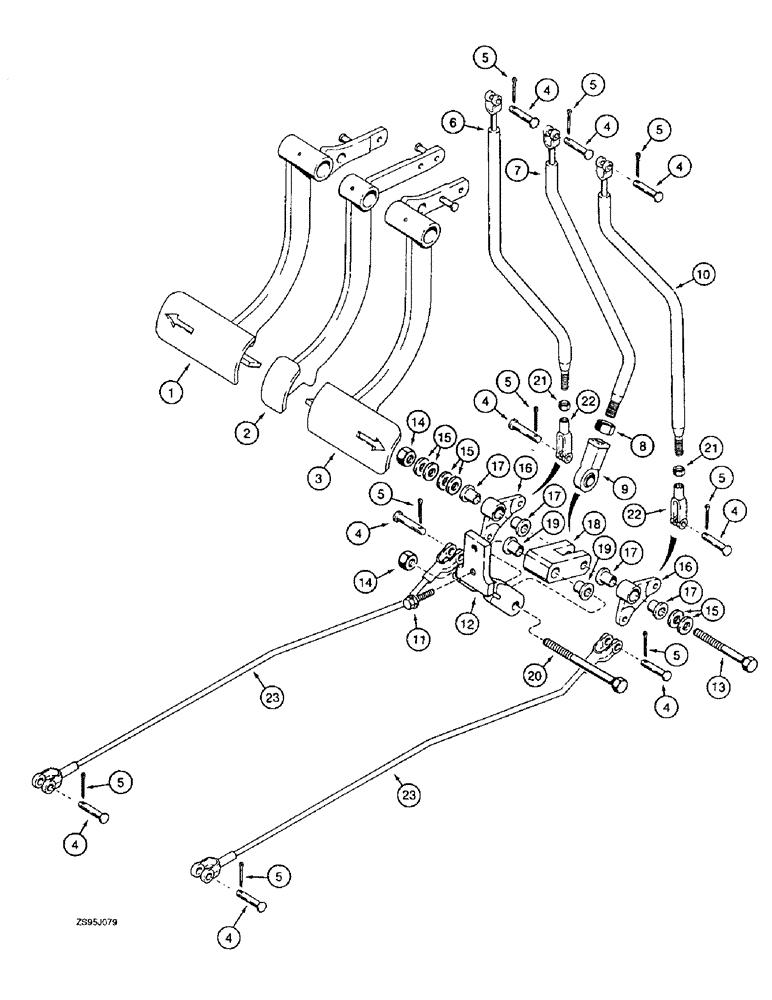

Запчасти Case 550E (6-52) - TRANSMISSION CLUTCH CUTOUT LINKAGE (06) - POWER TRAIN

1

R58466

PEDAL

ASSEMBLY - brake, left-hand, see figure 7-2 for components and related parts

1шт.

2

R58628

PEDAL

ASSEMBLY - brake, center, see figure 7-2 for components and related parts

1шт.

3

R58465

PEDAL

ASSEMBLY - brake, right-hand, see figure 7-2 for components and related parts

1шт.

4

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

PIN - clevis, 5/16 x 15/16 inch, hardened

9шт.

5

32-612

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

9шт.

6

R58671

ROD

- center pedal to clutch cutout block

1шт.

R58704

ROD

ASSEMBLY - center pedal

1шт.

7

NSS

NOT SOLD SEPARAT

ROD - center pedal to clutch cutout block

1шт.

8

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF

1шт.

9

L115782

BALL JOINT

JOINT - ball, female

1шт.

10

R58669

ROD

- right-hand, Serial Range: pedal-bellcrank

1шт.

11

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

2шт.

12

R58701

BRACKET

- block mounting

1шт.

13

426-864

BOLT,Hex, 1/2" - 13 x 4", Gr 8

- hex, 1/2 NC x 4 inch, grade 8

1шт.

14

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

2шт.

15

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/16") 1/2", SAE

6шт.

R58374

CRANK LEVER

BELLCRANK ASSEMBLY - clutch cutout

2шт.

16

NSS

NOT SOLD SEPARAT

BELLCRANK - clutch cutout

1шт.

17

R58311

BRONZE BUSHING

BUSHING - bronze

2шт.

R58375

BLOCK

ASSEMBLY - connection, clutch cutout

1шт.

18

NSS

NOT SOLD SEPARAT

BLOCK - connection, clutch cutout

1шт.

19

R58311

BRONZE BUSHING

BUSHING - bronze

2шт.

20

426-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 8

- hex, 1/2 NC x 5-1/2 inch, grade 8

1шт.

21

329-115

NUT,5/16"-24, G8

2шт.

22

213-125

ADJUSTABLE CLEVIS,5/16" - 32

CLEVIS - adjustable, 5/16 inch NF

2шт.

23

R58644

ROD

-, Serial Range: bellcrank-transmission

2шт.
